Summary of Contents for Klimawent WPA-BOX-14

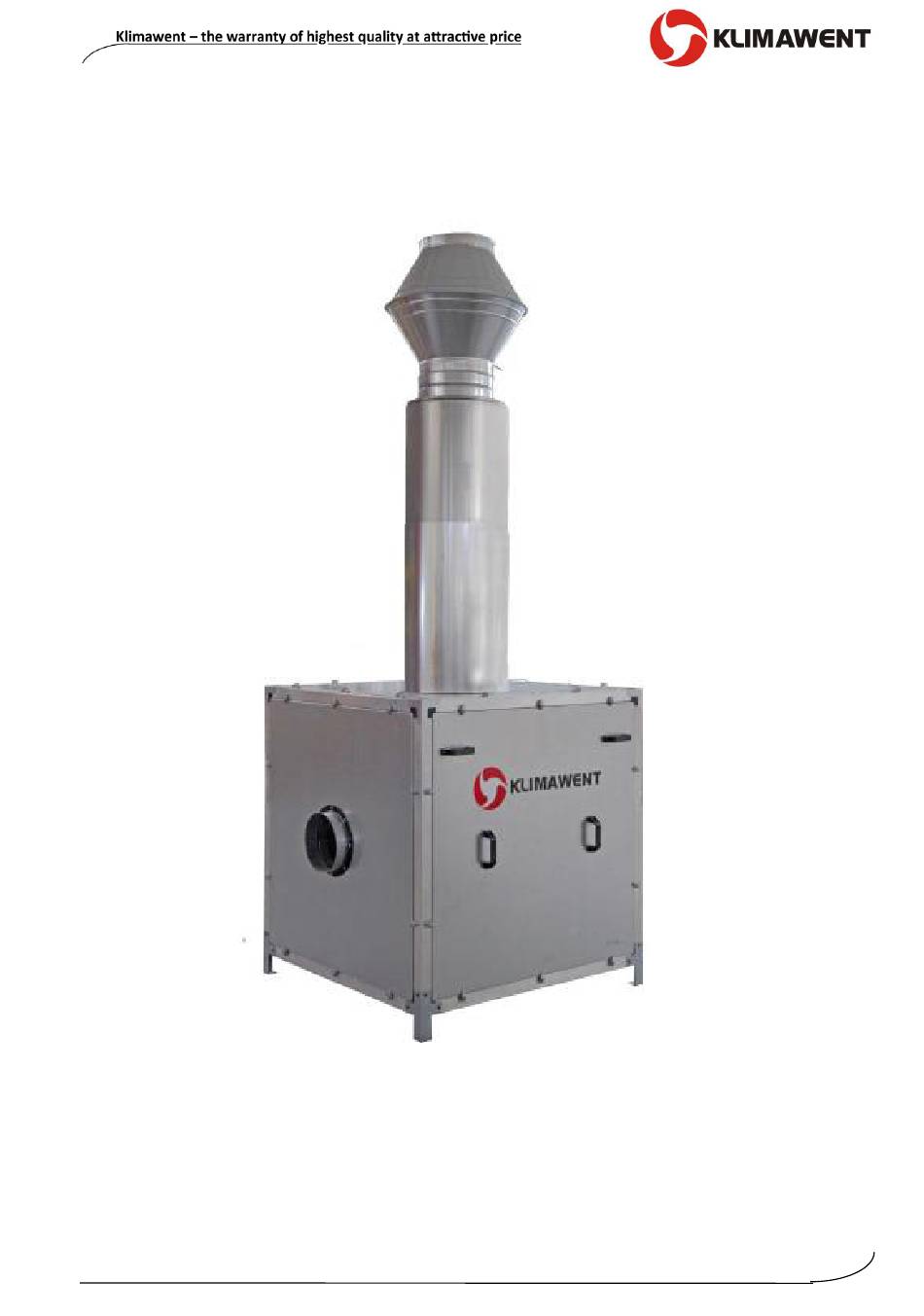

- Page 1 Use and Maintenance Manual WPA-BOX-14 Fan chamber 13.10.2016 Fan chamber WPA-BOX-14...
-
Page 2: Table Of Contents
Assembly and Start-up ................ 10 Operational Use .................. 12 Troubleshooting Guide ................ 12 Maintenance ..................12 Occupational Health and Safety ............13 Transport and Storage ................ 13 Terms of warranty ................13 Sample of the Declaration of Conformity ..........14 Fan chamber WPA-BOX-14 13.10.2016... -
Page 3: Introductory Remarks
1. Introductory Remarks The purpose of the present Use and Maintenance Manual is to supply User with directions wi- thin the range of application, installation, start-up and the operational use of the WPA-BOX-14 fan chamber. Installing, start up and operational use are exclusively admissible after getting acquaint- ted with the contents of the Use and Maintenance Manual. -
Page 4: Application
Measurement has been carried out with the T-WPA-BOX silencer, installed at the inlet and outlet of the fan chamber. Maximum temperature of the conveyed air is +60ºC, whereas maximum temperature within the work area +40ºC. Maximum dustiness of the conveyed air should not exceed 0,3 g/m Fan chamber WPA-BOX-14 13.10.2016... - Page 5 Fig. No.1 – Dimensions of the fan chamber – WPA-BOX-14 Caution: The dimension H is pertaining to holes spacing 10 used for anchorage the chamber 13.10.2016 Fan chamber WPA-BOX-14...
- Page 6 Type ØD ØE ØF ØG [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] WPA-BOX-14 1641 1605 1666 Flow chart Fig. No.2 – Flow chart of the fan chamber – WPA-BOX-14 Fan chamber WPA-BOX-14 13.10.2016...
- Page 7 Table No.3 – Parameters in the energy efficiency optimisation point Type of the Fan Overall efficiency Flow rate Fan pressure [Pa] WPA-BOX-14 12650 2710 Fig. No.3 – Chart of the energetic efficiency of the fan chamber – WPA-BOX-14 13.10.2016 Fan chamber WPA-BOX-14...
-
Page 8: Structure And Function
TK at the inlet and outlet of the fan (see Technical Data Table No.1). The subse- quent elements of the fan are assembled together. Fig. No.4 – Structure of the fan chamber – WPA-BOX-14 Fan chamber WPA-BOX-14 13.10.2016... - Page 9 (at the silencer outlet) at the inlet and outlet Photo No.1 – Examples of application of additional silencers ADDITIONAL EQUIPMENT Table No.4 – Silencer Type Inlet Outlet Height H Suitable fan chambers [mm] [mm] [mm] T-500-WPA-BOX 1300 WPA-BOX-14 13.10.2016 Fan chamber WPA-BOX-14...
-
Page 10: Assembly And Start-Up
CAUTION: The silencer assembly includes: reducer, silencer, support. The assembly is installed at the inlet or outlet of the fan chamber WPA-BOX-14. Table No.5 – Air discharge Type Inlet diameter / outlet diameter / height Weight E-500 500 / 500 / 1100... - Page 11 Purchase and installing depends on the Investor. Connect the motor windings according to the Connection Diagram on the terminal box cover. Fig. No.5 – Connection Diagram – fan in a chamber type WPA-BOX-14 13.10.2016 Fan chamber WPA-BOX-14...
-
Page 12: Operational Use
During the maintenance activities follow strictly the rules of Occupational Health and Safety, in order not to cause hazard to workers / people in the vicinity. Fan chamber WPA-BOX-14 13.10.2016... -
Page 13: Occupational Health And Safety
Infringement of the Section 3 “Reservations of Producer” of the Use and Maintenance Manual and especially modifications undertaken by User on one’s own shall cause the loss of warranty validity. 13.10.2016 Fan chamber WPA-BOX-14... -
Page 14: Sample Of The Declaration Of Conformity
Bank Account: Santander Bank Polska S.A. of the National Register of Court phone: +49 58 829 64 80 KRS 0000308902 company stock 56 1500 1025 1210 2007 8845 0000 email: klimawent@klimawent.com.pl 13.779.200 zł paid in total www.klimawent.com.pl Fan chamber WPA-BOX-14 13.10.2016... - Page 15 NOTES: 13.10.2016 Fan chamber WPA-BOX-14...
- Page 16 Producer: KLIMAWENT S.A. 81-571 Gdynia, ul. Chwaszczyńska 194 tel. 058 629 64 80 fax 058 629 64 19 e-mail: klimawent@klimawent.com.pl www.klimawent.com.pl 814K49 WPA-BOX-14 13.10.2016/EN Fan chamber WPA-BOX-14 13.10.2016...
