i o

m a rt

Infrared

User Manual

• Penetrating, therapeutic infrared

heat

• Temperature sensing technology

• Low voltage DC current

• No electromagnetic radiation

• Safe for Infants, Pregnant women

and the Elderly

• Wireless remote controlled. No

controller wires to trip over

• Universal power options

• Washable

• 5 year limited warranty

Blanket

Table of Contents

Need help?

Do you have a question about the Far Infrared Blanket and is the answer not in the manual?

Questions and answers

Summary of Contents for BioSmart Far Infrared Blanket

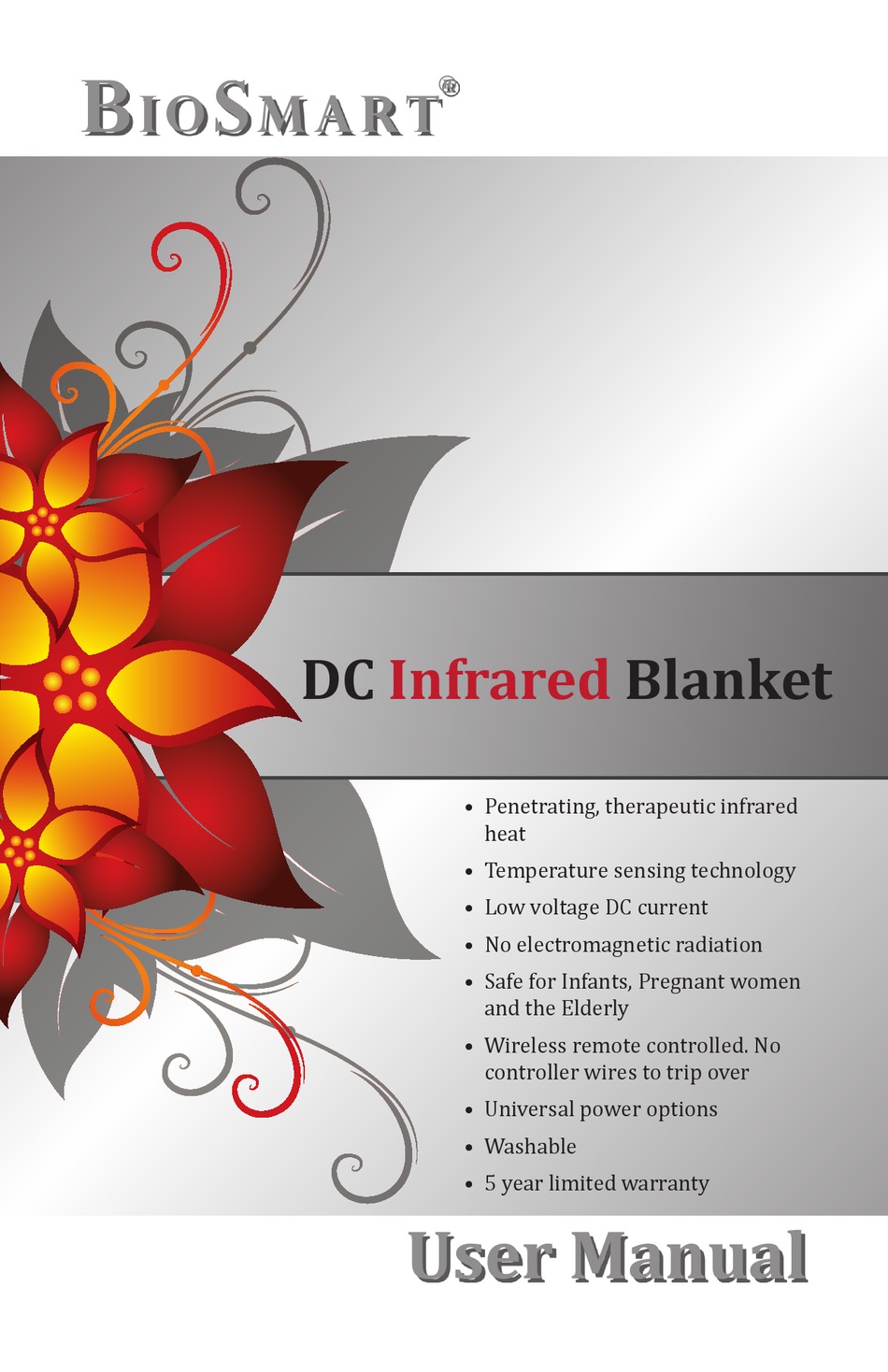

Page 1: User Manual
® m a rt Infrared Blanket • Penetrating, therapeutic infrared heat • Temperature sensing technology • Low voltage DC current • No electromagnetic radiation • Safe for Infants, Pregnant women and the Elderly • Wireless remote controlled. No controller wires to trip over • Universal power options • Washable • 5 year limited warranty User Manual...
Page 2 “Using the Remote Control” the functions and operation of your remote. on page 10). You will enjoy your blanket more if you understand • Be sure to read the “Usage Precautions” guidelines (Pages • Make sure you have a warranty certification/ registration ID on 5-7) before use. the back page of this manual. If not, contact your dealer. • Save your sales receipt or order confirmation. Packing List • One (1) BioSmart Infrared Blanket • One or two (1-2) remote controls with stand • Throw/Full - 1 Remote • Queen/King - 2 Remotes • One (1) control box (power supply) • This instruction manual • Warranty registration ID...
Page 3: Table Of Contents
BioSmart DC Infrared Blanket DC Infrared Blanket User Manual Getting Started ............ii Table of Contents Overview ..............2 Definition of Symbols �� 5 Usage Precautions ..........5 Hazards to Avoid �� 5 Blanket Safety Features ........8 Setting-up your Blanket ........9 Operating your Blanket ........10 Remote Control Layout �� 10 Using the Remote Control �� 10 Matching the remote .........12...
Page 4: Overview
BioSmart DC Infrared Blanket Overview Thank you for purchasing a BioSmart “Far Infrared Blanket” Not all warming blankets are created equal and we would like to take a minute to explain to you some of the unique advantages that this BioSmart Far Infrared blanket has to offer. The BioSmart electric blanket is a “Far Infrared Blanket”. It generates BioSmart Technology infrared waves that may not feel warm to the touch by some users. Unlike AC electric blankets that generate random wavelengths of radiant heat (which feel hot to the touch), the BioSmart infrared blanket is designed to generate internal body heat to compensate and supplement the body’s own production of far infrared energy. This promotes a deeper more restful sleep pattern.
Page 5 BioSmart DC Infrared Blanket enhancing your body’s own natural far infrared energy with a BioSmart Far Infrared Blanket. The beneficial effects of sleeping under a BioSmart infrared blanket are numerous and should be experienced by everyone. Far infrared waves in the 6-12 micron range are therapeutic. The Infrared wavelengths produced by the BioSmart blanket enhance the body’s own metabolic processes during your sleep cycle. While the blanket may appear cooler to the touch, the infrared waves that it produces are absorbed quickly by the body thereby maintaining your metabolic processes at optimum levels during sleep. The BioSmart Infrared Blanket is perfectly safe, its compatible with your body’s own metabolism, and it’s the closest thing to nature for getting a good night’s sleep. Your BioSmart blanket is equipped with the latest temperature control Special Features technology. This system monitors your blankets functions and your own body’s heat production. The system provides you with information...
Page 6 What is most incredible about the blanket is the fact that even in the coldest BioSmart DC Infrared Blanket weather, you will find that you don’t need to pile on extra blankets to capture the warmth generated from your BioSmart Blanket. The blanket is composed of multiple layers of proprietary patented materials that retain the far infrared waves generated by the blanket, which in turn penetrate the human body by as much as 6 inches. It is a well-known fact that conventional AC current electric blankets Your Good Health is important. create harmful electromagnetic waves and interfere with your body’s own electrical fields. According to the FDA, the EPA, and the World Heath...
Page 7: Definition Of Symbols
Definition of Symbols BioSmart DC Infrared Blanket Symbol Description Caution Failure to follow these steps may lead to fire or personal injury. Prohibited Usage Precautions For personal and property safety, please follow the precautions outlined in this section. Depending on the usage error, the respective consequences may result. Hazards to Avoid Fully insert the plug into the power socket. →If not fully plugged in, it may easily lead to electric shock or heat. Do not use damaged plug or plug into a loose socket. When you unplug the AC plug, grasp and pull the top of the plug. →If you pull on the AC wire instead of the plug, the AC line can be damaged and cause electric shock or short circuit.
Page 8 Hazards to Avoid BioSmart DC Infrared Blanket Do not use wet hands to plug or unplug the AC power plug. →This may easily induce an electric shock. Do use a damaged power cord or plug . For repair, contact the BioSmart service department. The remote control is not water proof. Avoid liquid spills as they may damage the remote or power supply. Do not dismantle any of the blanket components, including the remote, plugs, or control box. ●For repair, contact the relevant sales personnel. Do not use the blanket as an ironing board. →This is because the iron is too hot and can damage the blanket’s internal components.
Page 9 Hazards to Avoid BioSmart DC Infrared Blanket Do not use a top loading washer with a ringer type agitator. →This may damage the blanket’s internal components. Do not put the control box in your bed. Place the control box in a well ventilated area under your bed Do not operate the blanket while folded. Do not allow toddlers to jump on top of the blanket. →This may damage the blanket’s internal components. ©2015 BioSmart® Technologies - 7 -...
Page 10: Blanket Safety Features
BioSmart DC Infrared Blanket Blanket Safety Features • This BioSmart Infrared blanket with LCD screen utilizes a “smart-set”™comfort controller. It transfers soothing far-infrared heat to the body utilizing a patented pulse-control system providing low- voltage DC current to the blanket in accurate incremental levels of heat. • The “smart-set”™ constant temperature control provides 10 incremental levels of heat to obtain the perfect temperature desired by the user. • The “smart-set”™ controller allows the user to automatically shut off the blanket at any time between 1 to 16 hours. No need to worry about forgetting to turn the controller off. • The use of the low voltage DC power supply ensures both the users safety and the health benefits to be derived from the infrared blanket without electromagnetic low frequency emissions as with ordinary 120 volt electric blankets.
Page 11: Setting-Up Your Blanket
BioSmart DC Infrared Blanket Setting-up your Blanket If your blanket is being purchased to place on the bed, it is recommended that you place the control box (power supply) and the power cord under the bead to avoid accidental tripping during the night. The power cord is long enough to route it to the wall outlet that your bed headboard is located against. The remote controls are placed on either night stand for convenient operation. They will not interfere with each other regardless of whether or not they are situated on the same night stand or on separate night-stands. For single remotes, use whatever side of the bed is most convenient for you. Some beds contain a head-board shelf that you can place your remote control(s) on. Place the infrared blanket on the bed, with the connector and its label facing up at the foot of the bed. The size of the infrared blanket is designed to make sure that the connector is hanging over the side of the bed to avoid contact with the human body. Some people prefer more blanket weight for comfort and this can be accomplished by adding an additional blanket or duvet on top of your infrared blanket and then reducing the comfort setting on the infrared blanket to match the thermal properties of the infrared blanked plus the additional covers. The blanket will monitor the total temperature and adjust to maintain your comfort setting by taking into consideration the additional insulation you have placed over the top of the blanket.
Page 12: Operating Your Blanket
BioSmart DC Infrared Blanket Operating your Blanket Remote Control Layout Heating On Battery Life Indicator Timer Temperature Level Temp Down Temp Up Timer Set On/Off Using the Remote Control Insert the DC plug into the connector on the electric blanket. Connect the AC power plug. The LED indicator on controller box will light up. When the remote "On/Off" button is pressed once, the screen will indicate level 10 as default and start heating. When the controller "On/Off" button is pressed twice, the screen will show “_ _”. The default timer will be set to 16 hours. See timer instructions. The remote’s screen will go into power saving mode after 15 seconds of no interaction. Press any key to display your settings again. Customer/Warranty Service: 800-596-9605 - 10 -...
Page 13 Using the Remote Control BioSmart DC Infrared Blanket Depending on individual need, the temperature ranges from level 1-10. The LCD screen will show “01” as level one, “02” as level two, and so on up to the highest level 10, along with a heat icon flash. Press “▲” once to increase heat level by one. Press “▼” once to decrease heat level by one. Each time the press is effective, the controller box will beep once and the indicator will flash once. Timer setting: Press timer setting button A) When press the first time, the LCD will display the initial time 16 hours. B) Then by pressing the timer setting button each time, you can decrease duration by one hour. The initial usage duration is 16 hours.0 hour means timer setting has been turned off and the time iron will be off. During the time setting operation, the LCD will display 16-00, which means 16-0 hours, along with a time icon flash. Each time the press is effective, the controller box will beep once and the indicator will flash once. When any button is pressed, the LCD screen will light up indicating the current status of the blanket. If the infrared heating symbol does not appear on the LCD screen, it means that the blanket is off. Set the new...
Page 14: Matching The Remote
BioSmart DC Infrared Blanket Matching the remote Your remote control comes pre-programed to match the control box. This matching protocol does not need to be performed. However, in the event that you lose one of your controls (and we send you a new one) or a malfunction occurs in the signal between the remote and the control box, it will be necessary to restore (re-match) the original settings. This can be done very easily by following the protocol outlined below. Turn off all other appliances and electric blankets that could interfere Single remote control: with the matching transmission from the remote control. Connect the power supply to the blanket and plug the power supply into the wall outlet. Press the Temperature “up” button and the power button at the same time and hold for 20 seconds. The power supply box will make a beeping sound (7 beeps). Once the beeping has stopped, release the two buttons. The remote control should now be...
Page 15: Care And Storage
BioSmart DC Infrared Blanket Care Instructions Care and Storage Your infrared blanket will require fewer washings and special handling if you place it in a duvet cover or place a day-cover or bedspread over the top of your blanket. Normally, no other covers are required at night unless the room temperature falls below 60 degrees. Washing & Drying Instructions Machine Wash Do Not Wring (Front Loading) 140F Tumble Dry Line Dry Preferred On Low Do Not Bleach Do Not Iron Warm water only - soak for 10 minutes in mild detergent. Spin on normal speed. Rinse with cool water. Spin on normal speed. Use a mild liquid laundry detergent such as one used for soaking synthetics and delicates. Line dry or automatic dryer on low. Caution: Do not use a spindle agitator to wash, only to spin dry. Do Storage not dry clean.
Page 16: Trouble Shooting Guide
BioSmart DC Infrared Blanket Trouble Shooting Guide Error Codes “E1” appears for several reasons: • The wireless connection between the remote and control box can’t be established. • The plug between the control box and the blanket is loose. • The plug from the control box to the AC outlet is disconnected. If “E2” appears on the display screen, it means that the blanket temperature is too high. Check to see if the blanket has excessive folds and smooth out the blanket if necessary. The blanket will reset automatically. Excessive radio frequency (RF) interference.
Page 17 Problems and Solutions BioSmart DC Infrared Blanket Problem Solution The remote ‘error code” does Call customer support. You may have a not go away component problem. This indicates a lack of communication between the control box and the remote. The control box red light Try the re-matching procedure between the continues to flash. remote and the control box. If this doesn’t correct the problem, call customer support. You may have a component problem. Control box or remote was Call customer support. You may have a exposed to water and is not component problem. responding Check the control box to make sure that the red light is on and not flashing. If the light The controls seem to be is not on, check the plug to the AC outlet. If working properly but the the red light is flashing, try to re-match the blanket does not get warm. remote. If this fails to solve the problem, call customer support. You may have a component problem. Excessive Lint, pet hair, etc on Use a good lint brush or roller to remove the blanket lint, hair and dirt Unplug the blanket. Water soluble spills can be gently wiped with dish soap or other...
Page 18: Specifications
BioSmart DC Infrared Blanket Specifications Size Material Measurements General Information: Throw Micro Fleece 180*130cm Full Micro Fleece 210*190cm Queen Micro Fleece 220*220cm King Micro Fleece 220*250cm • Input: 100-240 Volts AC, 50/60 Hz, 2.5 Amps Power Supply - Model No: LEBS1521A – For Single Remote • Output: 23.8 Volts DC, 3.5 Amps • Lic./No.: CY1525 • C-TUV-US Listed • Input: 100-240 Volts AC, 50/60 Hz, 2.5 Amps...
Page 19: Warranty And Replacement Parts
BioSmart DC Infrared Blanket Warranty and Replacement Parts For Warranty Returns A “Return Merchandise Authorization” (RMA) is required for all merchandise and blanket returns. To obtain an “RMA” for a BioSmart product, go to the website for further instructions and we will email your authorization number to you, or, you can call customer service at the phone number listed at the bottom of each page of this manual. For Service and Parts Go to “BioSmartSolutions.com” to purchase parts and accessories directly for your BioSmart Infrared Blanket. You can also email special requests or questions. We answer all emails promptly in the order received with an appropriate response by email or a call-back at a time that is convenient. ©2015 BioSmart® Technologies - 17 -...
Page 20: Year Limited Warranty
◆ The blanket must be purchased for residential use, not for resale, from an authorized BioSmart Website or an authorized BioSmart ◆ BioSmart Technologies will repair or replace, free of charge, to Dealer� the original purchaser, any part that is found defective in material or workmanship during the first year.
Page 21 God or the use of voltages other than those noted in the owner’s manual ◆ BioSmart’s limited warranty is valid only if you retain your for this product� warranty certificate no. and “proof of purchase” for this product from an authorized dealer of BioSmart Technologies.
Page 22: Remote Quick Reference
Remote Quick Reference BioSmart DC Infrared Blanket • The comfort level setting The remote has 2 functions • The time duration setting Activating the blanket requires that you set both the comfort level and the time duration. Push the “power” button at the bottom of the remote. To Activate your blanket: The screen will display the previous setting for 5 seconds. To set the time duration, press the center button with the “clock” icon on it. The clock on the screen will flash and the screen will display the longest time duration setting for your particular blanket. This will be 12 hours or 16 hours depending on the model. Each time you push the center button it will reduce the time duration by one hour, until you reach “0”. It then starts over again. When you reach the desired duration time stop pushing the button and wait 5 seconds. The time duration is now set. To set the comfort level, press either of the two top buttons on your remote and the screen will display the existing comfort level setting. Pressing either button a second time will place the remote in calibration mode and the “infrared” icon on the screen will start flashing.
Page 24 BioSmart Far Infrared Blanket ® Green Technology for a Brighter Future Warranty Registration No. ® mart echnologieS 18324 Cook Road, Suite 1 Yelm, Washington 98597 BioSmartSolutions.com Customer/Warranty Service: 800-595-9605 Manufactured exclusively for BioSmart Technologies LLC by LinkPower Electronics Co. LTD, China. UT 4029 (CN) All patents, tradmarks, marketing, and distribution rights for this product are held by AcePower International Inc, 3F No. 95, ZhengDa 2 Street, Taipei 11656, Taiwan R.O.C. Tel: 886-2-29379263. MB3 ©2015 BioSmart Technologies ®...
