FPX 864TRV GS Installation Instructions

Blower installation

Advertisement

Packing List

(2) Blower Assemblies (1 left, 1 right)
Wiring Harness
Rheostat
Snap Disc
(4) Brass Bushings

Installation

WARNING:
Make sure power to the fireplace has been shut off prior to installation (disable the service
breaker).
Do not connect 110-120 VAC to the gas control valve or wiring system of this fireplace.
HINT:
It is easier to install the blower prior to connecting the gas line. If using the Greensmart™
remote, install it after the blowers are in place.
1

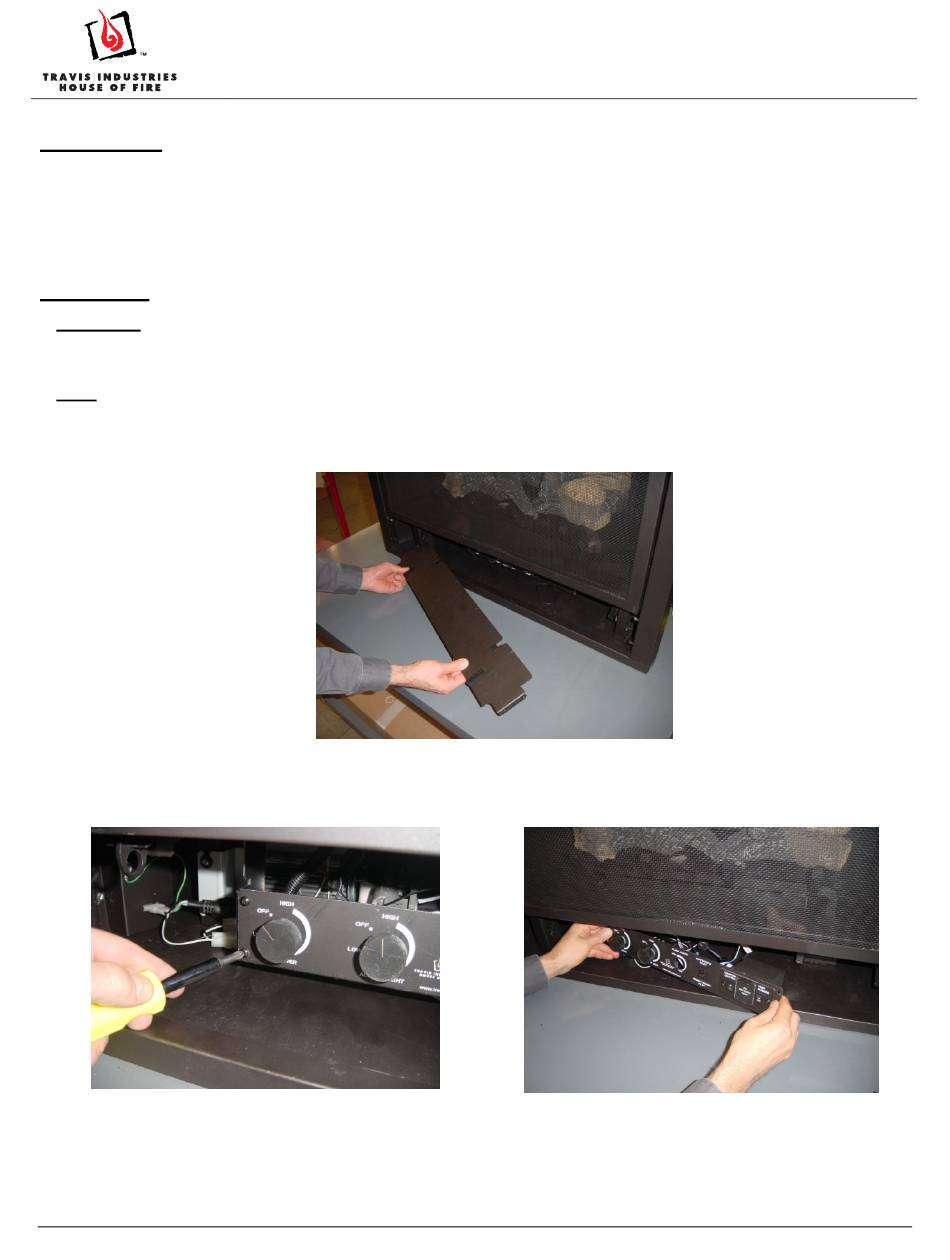

Remove the concealment cover (see Figure 1).
2
Unscrew the four screws holding the control cover in place (see Figure 2). Carefully remove the control
cover and place it aside (leave the wiring intact - see Figure 3)
Page 1 of 3
864TRV GS – 564 SS GS
Blower Installation Instructions
Figure 2
17601556 - 3/25/09
Rheostat Nut
Rheostat Knob
(4) #8 x ¾" Screws
Figure 1
(sku 99000162)
Figure 3
© Travis Industries, Inc.
