Summary of Contents for Contacta STS-SJB
-
Page 1: Setup Guide

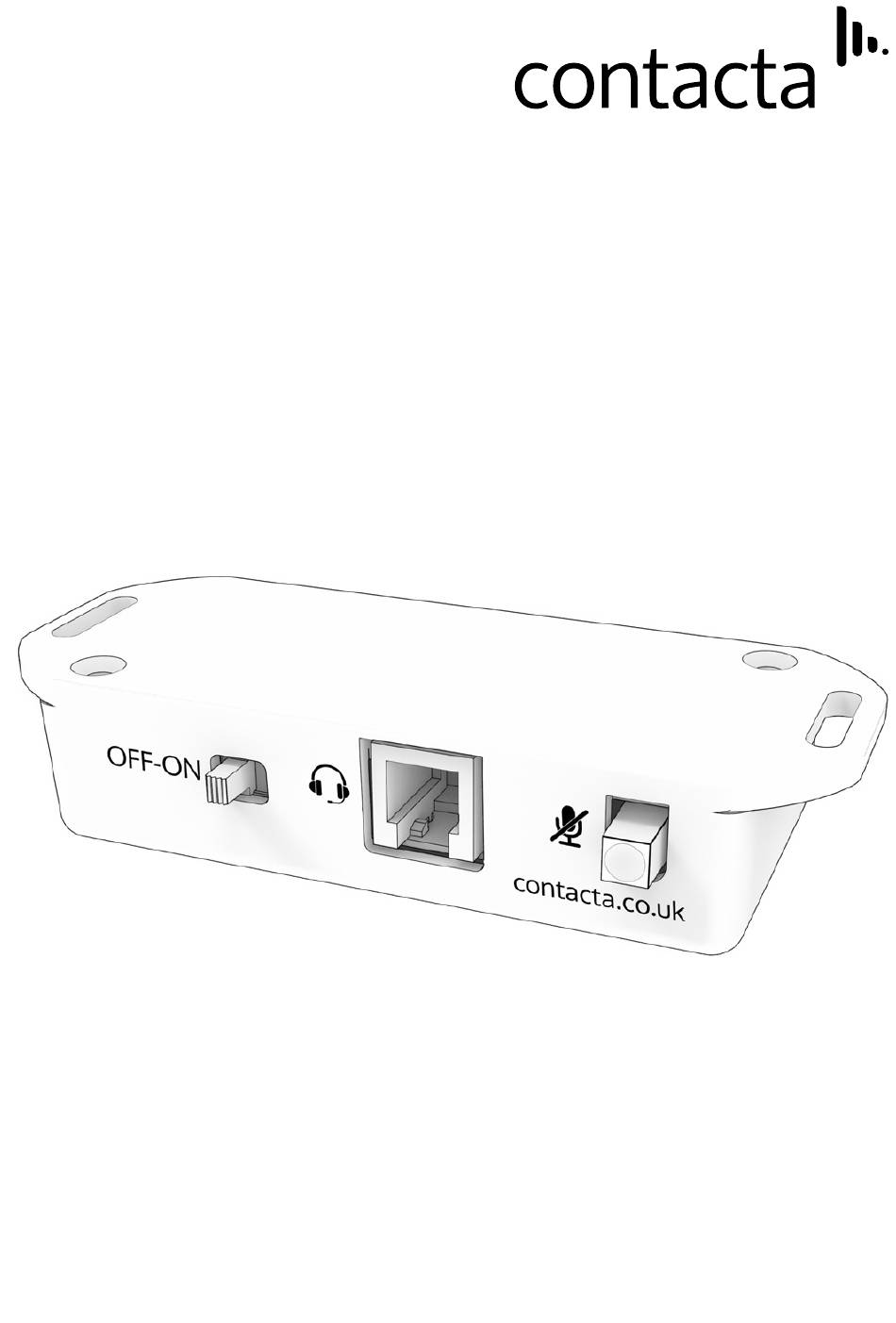

Break Out Box STS-SJB / STS-SJB-RJ Setup Guide June 2019... - Page 2 Product Overview Setup Contacta has a policy of continuous product development, and therefore small specification changes may not be reflected in this manual. Images, labels, packaging, accessories and product colours are subject to change without notice.
- Page 3 Two versions are available: STS-SJB: Uses 3.5mm audio jacks for connection to a headset. STS-SJB-RJ: Uses an RJ11 socket for connection to either the Sennheiser SC 230 headset or Sennheiser SC 260 headset, utilising the Sennheiser CSTD 08 connection cable for easy setup.
-
Page 4: Rear Connections
Rear Connections Microphone Port: Euroblock for microphone. 2. Speaker Port: Euroblock for speaker. 3. Speech Transfer System Amplifier [STS-A31H] Connection Cable: Cable terminated with x2 Euroblocks. The yellow and black cable is for the amplifier speaker port, and the red and black cable for the amplifier microphone port. - Page 5 4. Connect a headset/headphones/microphone to the Break Out Box. • STS-SJB uses two 3.5mm audio jacks. • STS-SJB-RJ uses an RJ11 connection (note: compatible with RJ-9) for use with the Sennheiser SC-260 & SC-230 headsets. Use a Sennheiser CSTD 08 connection cable for quick connect compatability.
