How to replace SATA cards on CT-8000R/RP

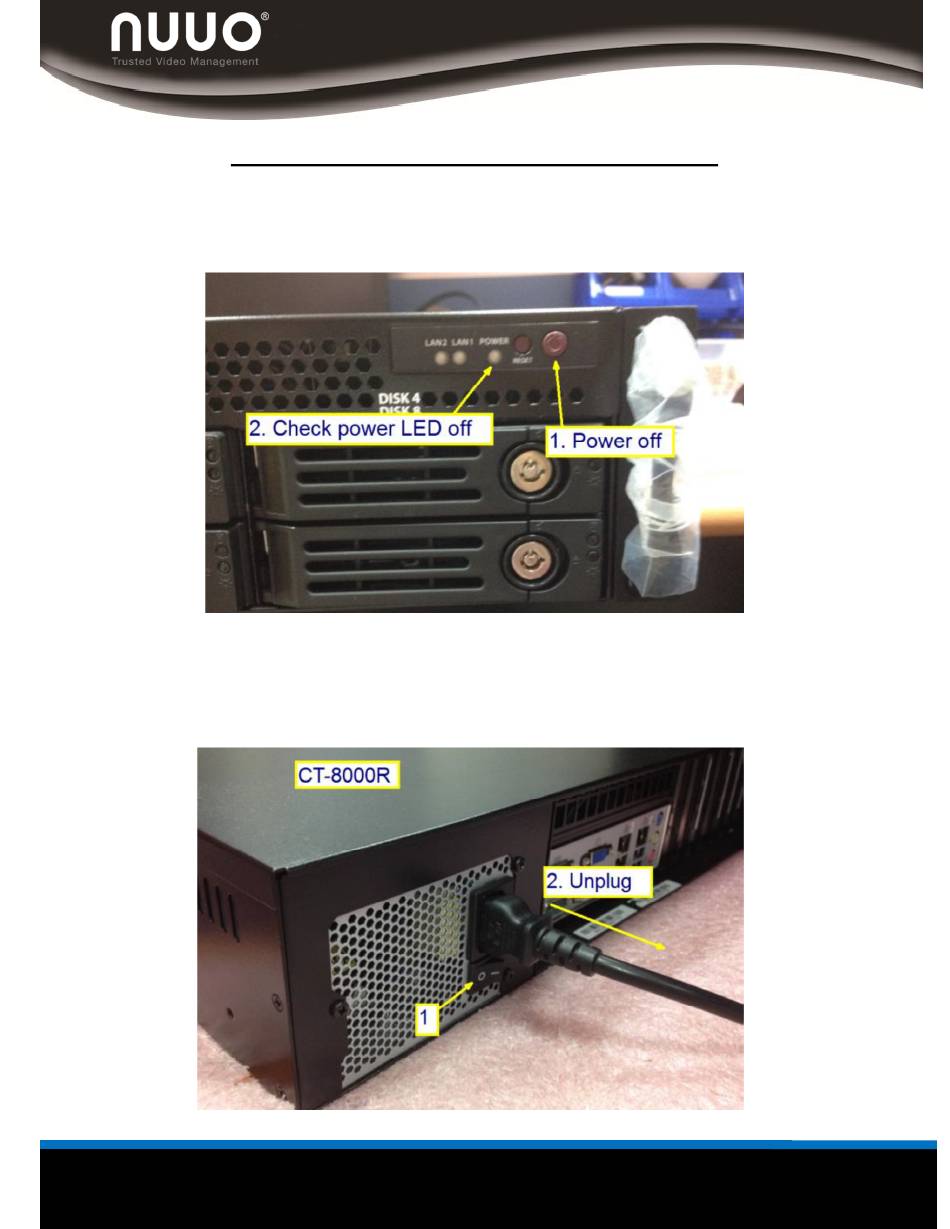

1. Open the metallic case:

a) Perform a normal shutdown and make sure the power LED light if turned off.
b) Unplug power cord
For CT-8000R
Turn the power switch into the "O" position and unplug the power cord.
