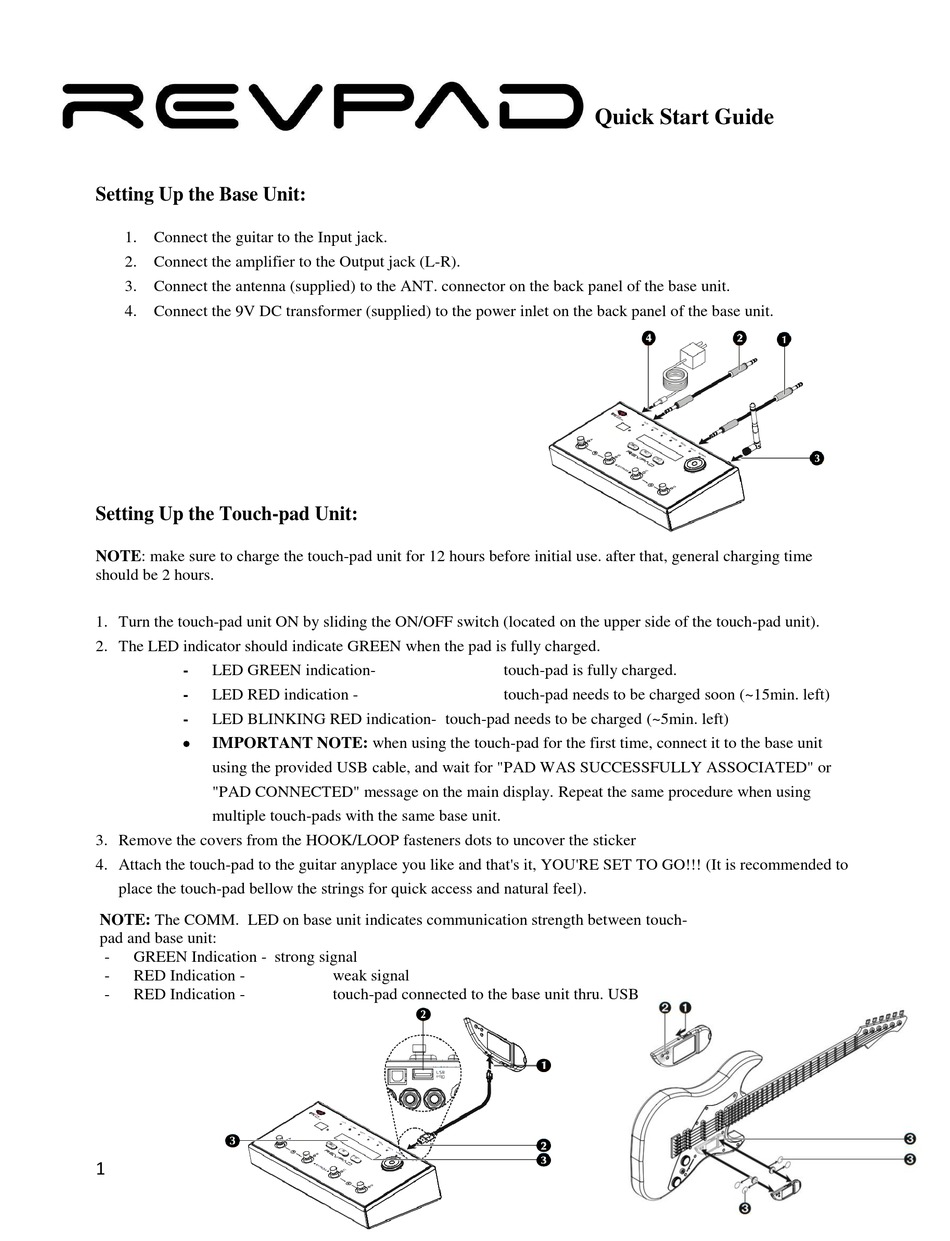

GTC Sound Innovations REVPAD Quick Start Manual

A
Setting Up the Base Unit:
1. Connect the guitar to the Input jack.
2. Connect the amplifier to the Output jack (L-R).
3. Connect the antenna (supplied) to the ANT. connector on the back panel of the base unit.
4. Connect the 9V DC transformer (supplied) to the power inlet on the back panel of the base unit.
Setting Up the Touch-pad Unit:
NOTE: make sure to charge the touch-pad unit for 12 hours before initial use. after that, general charging time
should be 2 hours.
1. Turn the touch-pad unit ON by sliding the ON/OFF switch (located on the upper side of the touch-pad unit).
2. The LED indicator should indicate GREEN when the pad is fully charged.
- LED GREEN indication-
- LED RED indication -
- LED BLINKING RED indication- touch-pad needs to be charged (~5min. left)

IMPORTANT NOTE: when using the touch-pad for the first time, connect it to the base unit
using the provided USB cable, and wait for "PAD WAS SUCCESSFULLY ASSOCIATED" or
"PAD CONNECTED" message on the main display. Repeat the same procedure when using
multiple touch-pads with the same base unit.
3. Remove the covers from the HOOK/LOOP fasteners dots to uncover the sticker
4. Attach the touch-pad to the guitar anyplace you like and that's it, YOU'RE SET TO GO!!! (It is recommended to
place the touch-pad bellow the strings for quick access and natural feel).
NOTE: The COMM. LED on base unit indicates communication strength between touch-
pad and base unit:
- GREEN Indication - strong signal
- RED Indication -
- RED Indication -
-
1
touch-pad is fully charged.
touch-pad needs to be charged soon (~15min. left)
weak signal
touch-pad connected to the base unit thru. USB
Quick Start Guide
