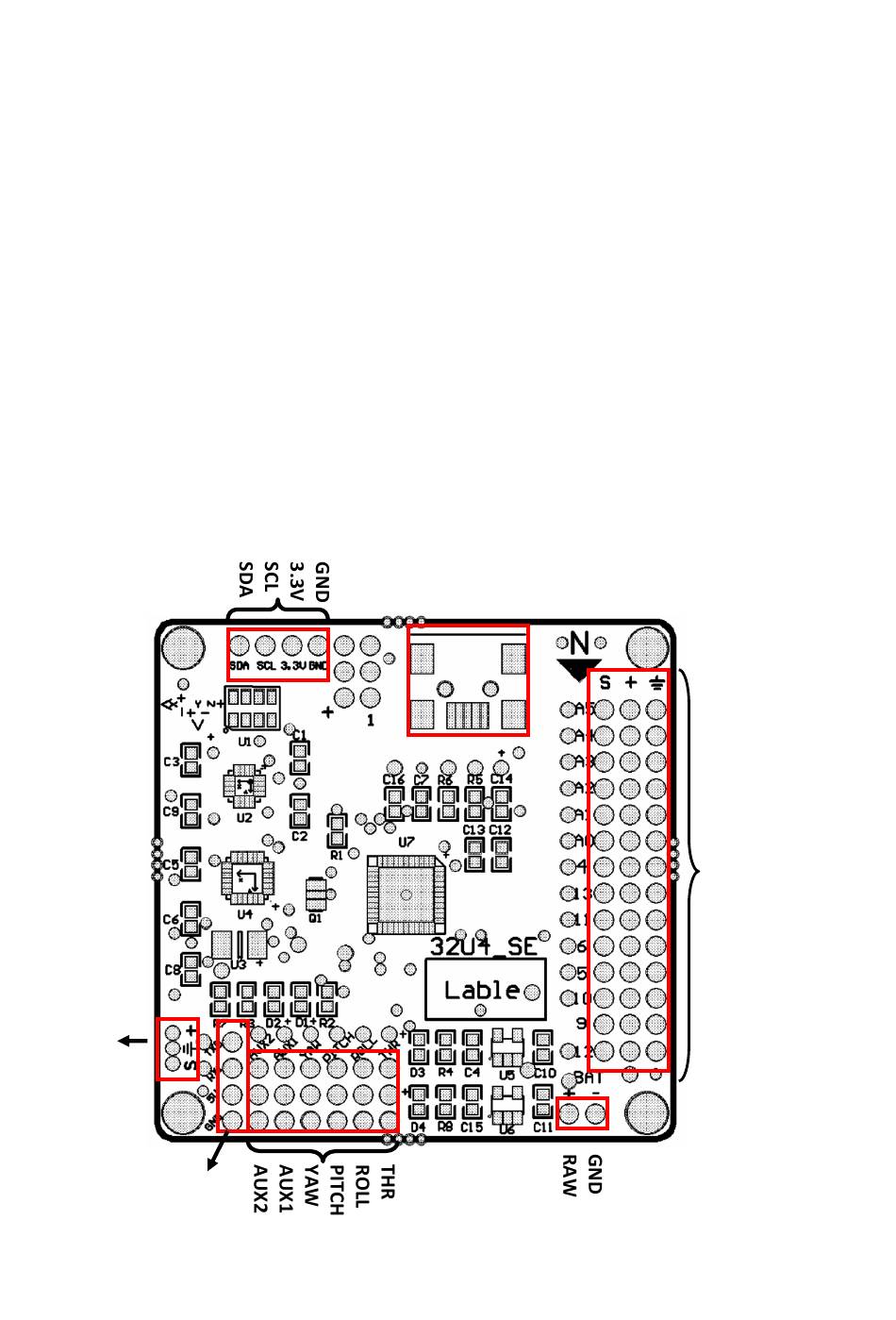

Multiwii_32U4_SE Manual Rev01 1. Introduction The Multiwii_32U4_SE is an All‐In‐One Flight‐Controller (FC), usable for all sizes of Multirotor helicopters. It is equipped with a microcontroller, a 3‐axis gyroscope (GYRO), a 3‐axis accelerometer (ACC), a 3‐axismagnetometer (MAG) and a barometer (BARO).. The FC was developed for use with the multiWii‐software (www.multiwii.com) from Alexandre Debus – aka. AlexInParis – and it supports all flight conditions. An Atmel AVR 8‐bit microcontroller (MCU),the ATMEGA32U4, is used on the 32U4_SE. This MCU has 6 high‐resolution PWM (ESC signal) outputs, an on‐chip USB interface (so, no need for a FTDI adapter) and the ability to read the signals of various RX types. Mini USB A5 A3 A2 A1 Output 3.3V Signal(RX) 2~3S Lipo Input...
Page 2
2. Power Supply Your MultiWii_32U4_SE has two power supplies: ‐ 5V UBEC, connected to output ‐LiPo, connected to LiPo 2S‐3S The outputs were always supplied via an ESC BEC or an external UBEC! Attention: Use the 32U4_SE with 2‐3S LiPos only! 5V UBEC only...
Page 3
3. Connect a RX Normal RX You can use a standard RX with 4 channels. Because of the sensors used and the Various flight modes available, a 6 channel RX is recommended . You only need to connect all three wires for the throttle channel (signal and power (+/‐)). For all other channels only the signal wires are needed. This will simplify your wiring and also save some weight. AUX2 AUX1 RUDD Normal RX PITCH ROLL PPM sum RX With a PPM sum RX you can use up to 8 channels (at the time of writing) with only one single patch wire. PPM RX ‐ Spektrum Satellite A Spektrum satellite receiver outputs all channels of the transmitter over a serial interface (UART). With the use of a Spektrum satellite you can use up to 8 channels (as with a PPM Sum receiver). In addition, it is quite small and lightweight. Spektrum 3.3V Satellite...
Page 4
4. Connect the ESC's The MultiWii_32U4_SE was designed to provide up to 8 ESC connections plus up to 5 additional servos (maximum, but depends from the configuration and the on‐board resources used!). The image shows the motors positions and spin directions. ESC connections 5V ESC BEC Servo connections 5V ESC BEC Servo...
Page 6
5. Copter installation When installing the MultiWii_32U4_SE it is best placed at the center of your multicopter. 6. MultiWii Firmware & upload The MultiWii_32U4_SE is specially designed for the use with MultiWii The Leonardo is supported with the latest Arduino version. (1.0.1 or later). The 32U4_SE uses the same sensors (and axis orientation) as the popular FreeIMUv043. To activate the sensors you need to uncomment the '#define FREEIMUv043'. '#define FREEIMUv043...
Page 7
#define A32U4ALLPINS To make use of the full potential of the 32U4_SE you need to uncomment the '#define A32U4ALLPINS'. 7. External sensors You may connect any I2C sensor to the 32U4_SE that is supported by the software. But as GYRO, ACC, MAG and BARO were present on the 32U4_SE the only addition might be an external I2C GPS‐module. ATTENTION: The external I2C bus of the 32U4_SE may only be used with 3.3V sensors!
