CO/Tech 50076 Instruction Manual

PIR Sensor
Art.no 36-6362 Model 50076
Please read the entire instruction manual before using the product and
then save it for future reference. We reserve the right for any errors in
text or images and any necessary changes made to technical data.
In the event of technical problems or other queries, please contact our
Customer Services.

Things to consider:

• Other wireless equipment using the same frequency band can
reduce the transmission range.
• The range of all wireless equipment depends on the type of obstacles
located between the transmitter and the receiver (e.g. a concrete wall
will interfere with the signal more than a plasterboard wall).
If you experience problems, try the following:
• Turn off any other existing wireless equipment to check whether
this is the cause of the problem.
• Reposition the wireless equipment, shorten the distance between
the transmitter and the receiver or reduce the number of obstacles
(walls, furniture, etc.) between them.

Installation

Note: This motion sensor is designed for indoor use only.
• The motion sensor should be installed at least 1.2 m above ground level.
• Do not install the motion sensor where it will be exposed to direct sunlight.
• Do not install the motion sensor in front of a window, any kind of
fan or air conditioning unit.
• Do not install the motion sensor over or close to any type of heat source.

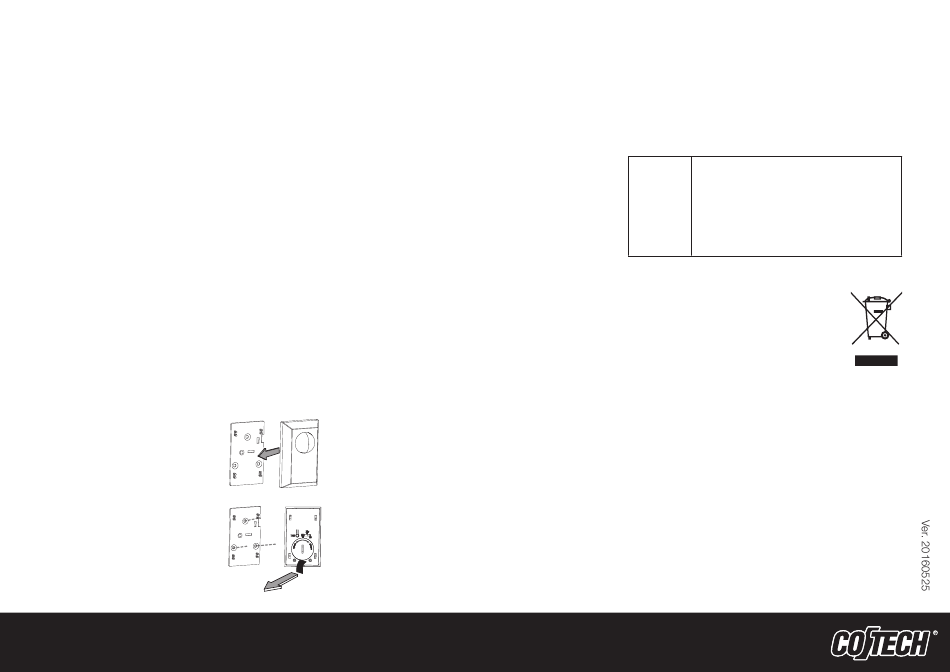

1. Remove the back of the motion
sensor.
2. Fix the back of the motion sensor in
the desired place. Use the included
screws and plugs or another
appropriate fastening method. Before
drilling mounting holes into the wall,
make sure that it is free from hidden
electrical wiring and water pipes.
Remove the plastic tab to activate
the battery. Note: Once the battery
has been activated it takes about
20 seconds for the motion sensor to
fully activate.
GREAT BRITAIN • CUSTOMER SERVICE tel. 020 8247 9300 e-mail customerservice@clasohlson.co.uk internet www.clasohlson.co.uk postal 10 – 13 Market Place, Kingston Upon Thames, Surrey, KT1 1JZ

Operating instructions

Connection

Follow the procedures below for pairing:
1. Make sure that the receiver that you are going to use the motion
sensor with is ready to be paired (refer to the user manual of
the receiver).
2. Hold in [ Learn ] on the motion sensor for 1 second. The motion
sensor will now pair with the receiver.

Operating modes:

The motion sensor has three operating modes:
• 24hr/10S: When a person enters the detection zone, the motion
sensor sends an on-signal to the receiver. When the person
leaves the detection zone there is a delay of 10 seconds
before the motion sensor sends an off-signal to the receiver.
If further motion is detected inside the detection zone within
the 10 seconds, a new on-signal will be sent to the receiver.
• 24hr/1M: When a person enters the detection zone, the motion
sensor sends an on-signal to the receiver. When the person leaves
the detection zone there is a delay of 1 minute before the motion
sensor sends an off-signal to the receiver. If further motion is
detected inside the detection zone within the 1 minute, a new
on-signal will be sent to the receiver.
• 30S: Night mode, on-signals are not sent during daylight.
When a person enters the detection zone in the dark, the motion
sensor sends an on-signal to the receiver. When the person
leaves the detection zone there is a delay of 30 seconds
before the motion sensor sends an off-signal to the receiver.
If further motion is detected inside the detection zone within
the 30 seconds, a new on-signal will be sent to the receiver.

Deleting the motion sensor from a receiver

It is not possible to delete (unpair) only the motion sensor from
a receiver. In order to delete the motion sensor from a receiver,
all the transmitters paired with the receiver must be deleted.
Read the instruction manual of the receiver in question.

Care and maintenance

• Clean the product by wiping it with a damp cloth. Use only mild
cleaning agents, never solvents or corrosive chemicals.
• Remove the battery and store the motion sensor out of reach of
children if it is not to be used for a long time.

Changing the battery

1. Remove the cover of the battery compartment from the back of
the motion sensor.
2. Insert a new battery (1 × CR2450). Insert the battery with the (+)
facing upwards.
3. Refit the battery cover.

Troubleshooting guide

The motion • Check the battery and replace it if necessary.
sensor does • Is the motion sensor paired with the receiver as
not work. described above? Try pairing them again.
• Check that the device (e.g. light) which is
connected to the receiver is switched on and
not faulty.
• Is the motion sensor too far from the receiver?
• Is the signal being blocked by furniture or
furnishings?

Responsible disposal

This symbol indicates that this product should not be
disposed of with general household waste. This applies
throughout the entire EU. In order to prevent any
harm to the environment or health hazards caused by
incorrect waste disposal, the product must be handed
in for recycling so that the material can be disposed
of in a responsible manner. When recycling your
product, take it to your local collection facility or contact
the place of purchase. They will ensure that the product
is disposed of in an environmentally sound manner.

Specifications

Frequency 433.92 MHz
Range 25 m
Battery 1 × CR2450 (included)
PIR sensor range ≤ 5 m
Detection angle 110°
Operating temperature 0–35 °C
Activation of night mode < 150 lux
