Summary of Contents for Sanus CFR518

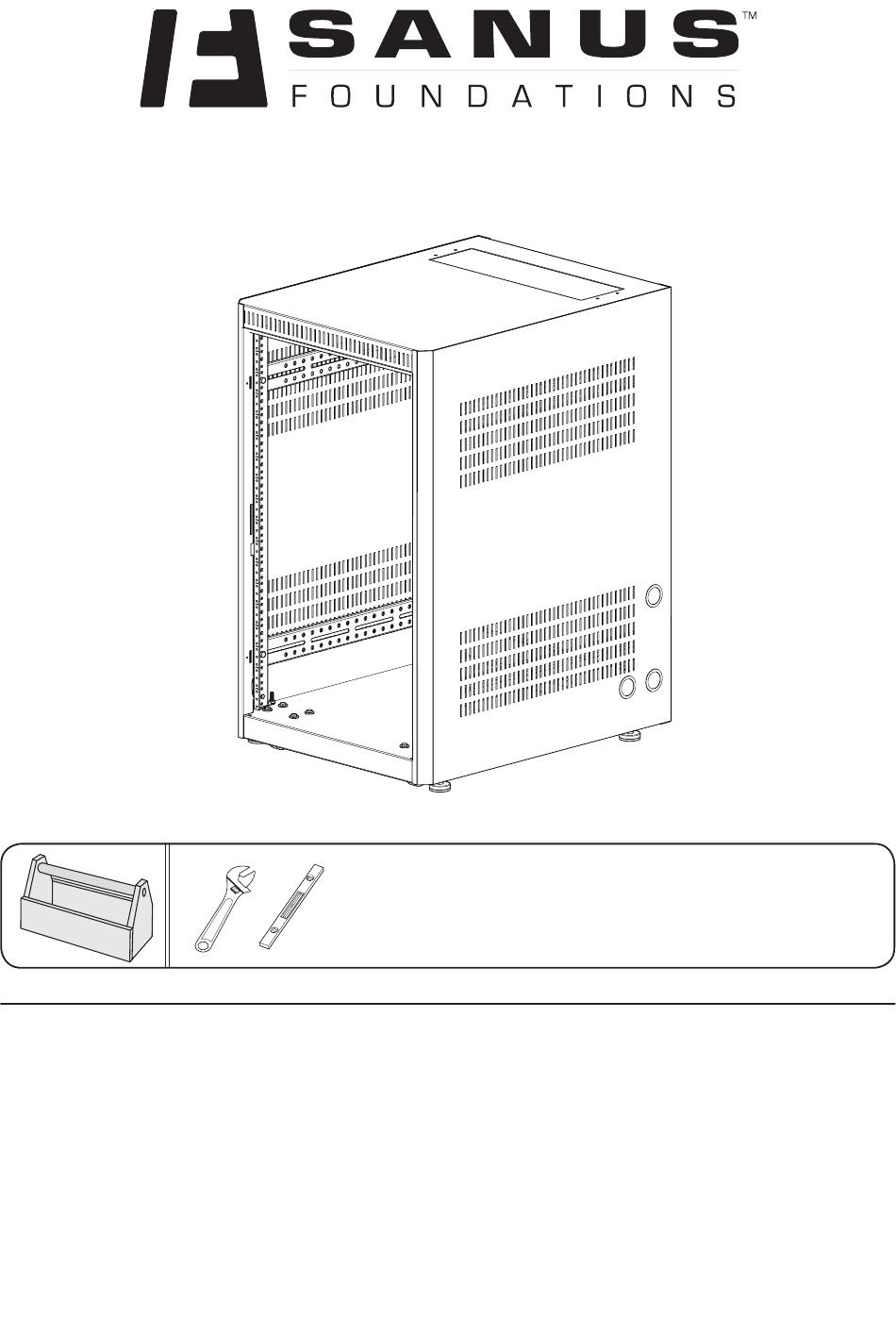

- Page 1 Americas: 800-359-5520 • 651-484-7988 • info@sanus.com Europe, Middle East, and Africa: 31 (0) 40 26 68 619 • sanus.europe@sanus.com Asia Pacific: 86 755 8996 9226 • 800 999 6688 (mainland China only) • sanus.ap@milestone.com sanus.com ©2009 Milestone AV Technologies, a Duchossois Group Company.
- Page 2 Do not use this product for any purpose not explicitly specified by Sanus Systems. Ù If you do not understand these instructions, or have doubts about the safety of the installation, assembly or use of this product, contact Sanus Systems Ù...
- Page 3 LEGEND WARNING This product contains small items that Tools Required Caution/Warning Repeat Step Heavy! Assistance Required. could be a choking hazard Do Not Loosen/Tighten Note This End Up. Choose an Option Troubleshooting and Tip Hazard Optional Electrical Warning Maintenance 6901-002027 <00>...
- Page 4 Supplied Parts and Hardware Before starting assembly, verify all parts are included and undamaged. If any parts are missing or damaged, do not return the damaged item to your dealer; contact Sanus Systems Customer Service. Never use damaged parts! [02] x 4...
- Page 5 Step 1 CAUTION: Install feet [02] (recommended) and adjust them as neccessary to level the rack – OR – install castors [03]. DO NOT install both feet [02] and castors [03]. CAUTION: To avoid potential injury or property damage, always ensure that your rack is level. [02] [04] [05]...
- Page 6 Step 2 CAUTION: Numerous knockouts (K) are provided for cable management. You can route your cables through the knockouts or through the opening (O) in the bottom panel. CAUTION: All knockouts that are used for wires without conduit must have bushings inserted in the knockout to eliminate damage to the cable's insulation. 6901-002027 <00>...
- Page 7 Step 3 CAUTION: Remove the venting panel for additional ventalation. CAUTION: To avoid damage to your components due to overheating, ensure that there is adequate space between each unit for proper airflow. It is important to maintain an operating temperature inside of the rack that does not exceed 104°F (40°C). 6901-002027 <00>...
- Page 8 Step 4 Adjust the rails within one slot – OR – adjust the rails into any of the slots provided. NOTE: Be sure to adjust the top (T), bottom (B), right (R), and left (L) rails evenly. 6901-002027 <00>...
- Page 9 Step 5 CAUTION: Verify that your grounding wire (W) is installed to the bottom rail hole (H) and the base ground stud (S) on the rack. CAUTION: Avoid potential injury or property damage! The grounding wire must be properly installed at all times. 6901-002027 <00>...
