Vollrath InstaCut 3.5 Installation Instructions

InstaCut™ 3.5 Blade Replacement Instructions
To ensure safe installation and operation, read the following statements
and understand their meaning. Please read carefully.
WARNING
Warning is used to indicate the presence of a hazard that can cause
severe personal injury, death, or substantial property damage if the
warning is ignored.
Sharp Blade Hazard.
Blades are sharp and can cause cuts and amputation.
To avoid injury from sharp blades, handle with caution. Only trained
personal should operate equipment or preform maintenance.
I P
nstallatIon rocedures
Wash new blades with warm, soapy water and rinse thoroughly to remove the thin
protective oil film. Keep the sharp edge away from you when handling blades.
sPare Parts lIst
and
Callout Description
A Lock Nut
B Pull Pin w/ Ring 1 1/4" Long
Pusher Head Block, 3/8"
C
Pusher Head Block, 1/4" & 1/2"
D Rubber Bumper, 3/8" I.D.
E Blade Holder
F Screw, Shoulder
G Handle Link
H Base
I Guide Rod
J Pusher Head Casting w/ Bearings
K Thumbscrew
L Pusher Head
M Nutblock, Hex
N D-Handle, Rubber Coated
O Blade
P Blade, Dice
WARNING

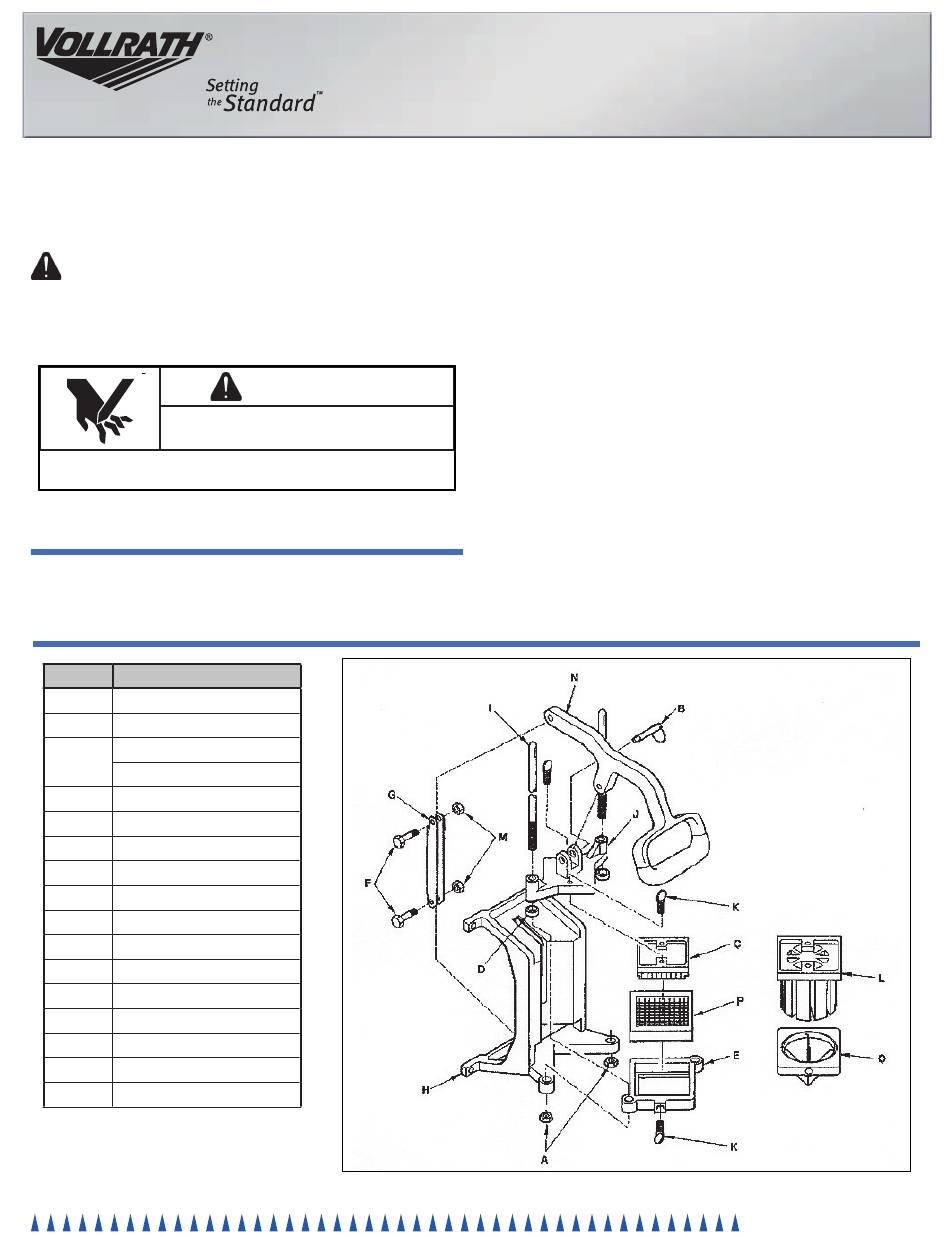

eXPloded VIeW - I c
nsta

Installation Instructions

1. Familiarize yourself with the parts diagram for your equipment.
2. Remove the pusher head assembly:
Tabletop models. Slide the pusher head off the rod guides.
Wall mount models. Remove the pin. Lift handle and slide the pusher head off
the guide rods. Place pin back into the hole on the handle assembly to prevent
loss.
3. Raise the bumpers approximately 2" (5.0 cm).
4. Loosen thumbscrew and carefully remove the blade assembly. Remove the
cutting blade assembly by pressing upwards on the bottom of the side of the
blade holder, where the thumbscrew is located. Discard the old blade assembly.
5. Install the new cutting blade assembly by inserting the tab on the blade holder
into the groove in the base, then lowering the blade holder into the seated and
flush position in the base. Tighten the thumbscrew.
6. Slide bumpers down guide rods to contact base assembly. Position pusher
head assembly onto the guide rods, slowly lower pusher head assembly, and
check pusher head block to blade alignment.
7. Lubricate the guide bar with mineral oil or Petro Gel after each use. Do not
use cooking oil as it will become sticky and may permanently damage the
equipment.
3.5W ( )
ut Wall mount
