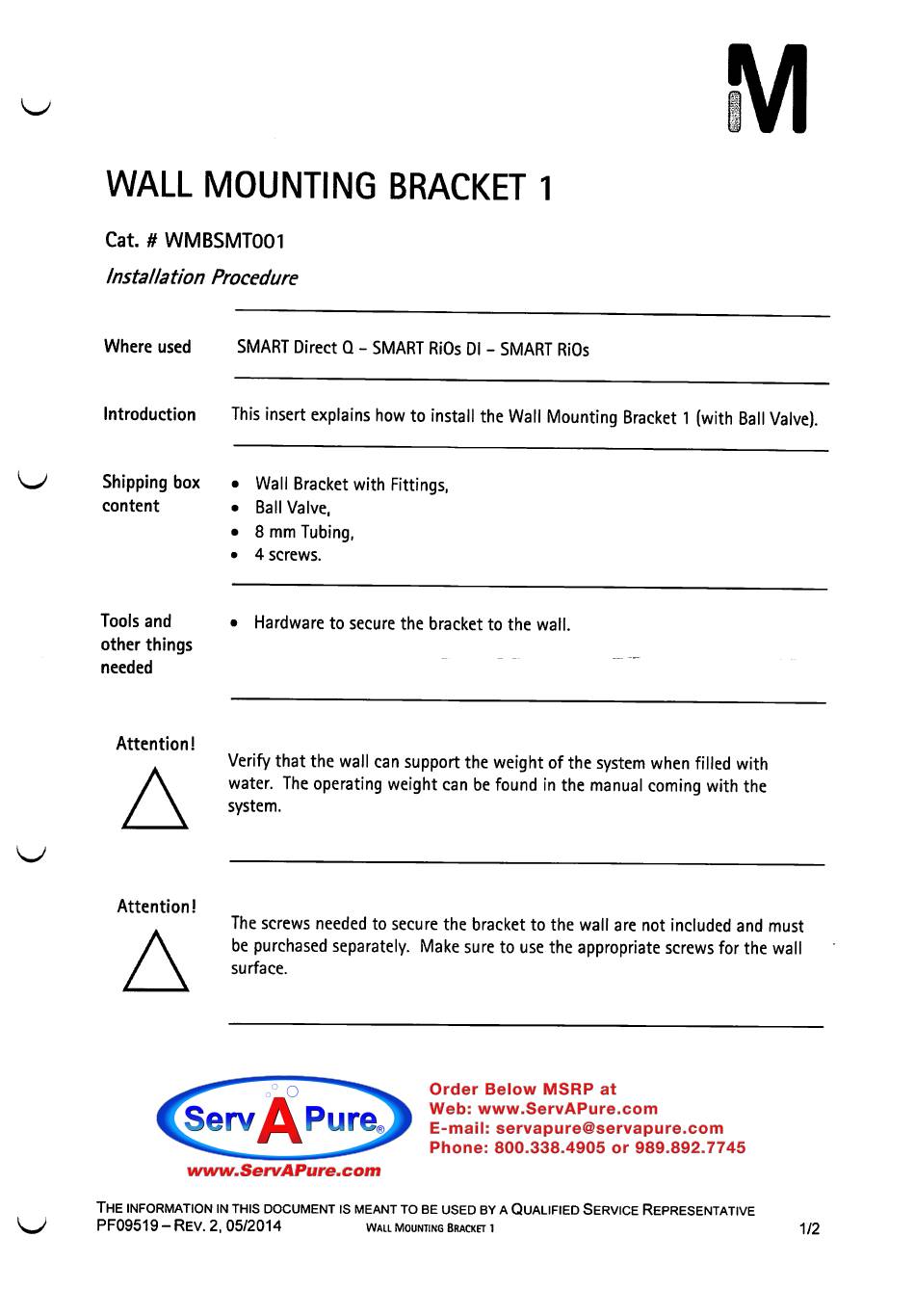

WALL MOUNTING BRACKET 1
Cat. # WMBSMT001
Installation Procedure
Where used SMART Direct Q - SMART RiOs Di - SMART RiOs
Introduction This insert explains how to install the Wall Mounting Bracket 1 (with Ball Valve).
• Wall Bracket with Fittings,
• Ball Valve,
• 8 mm Tubing,
• 4 s c r e w s .
Hardware to secure the bracket to the wall.
A t t e n t i o n !
Verify that the wall can support the weight of the system when filled with
water. The operating weight can be found in the manual coming with the
system.
A t t e n t i o n )
The screws needed to secure the bracket to the wall are not included and must
be purchased separately. Make sure to use the appropriate screws for the wall
surface.
The information in this document is meant to be used by a Qualified Service Representative
P F 0 9 5 1 9 - R e v . 2 , 0 5 / 2 0 1 4 w a l l m o u n t i n g B r a c k e t i 1 / 2
