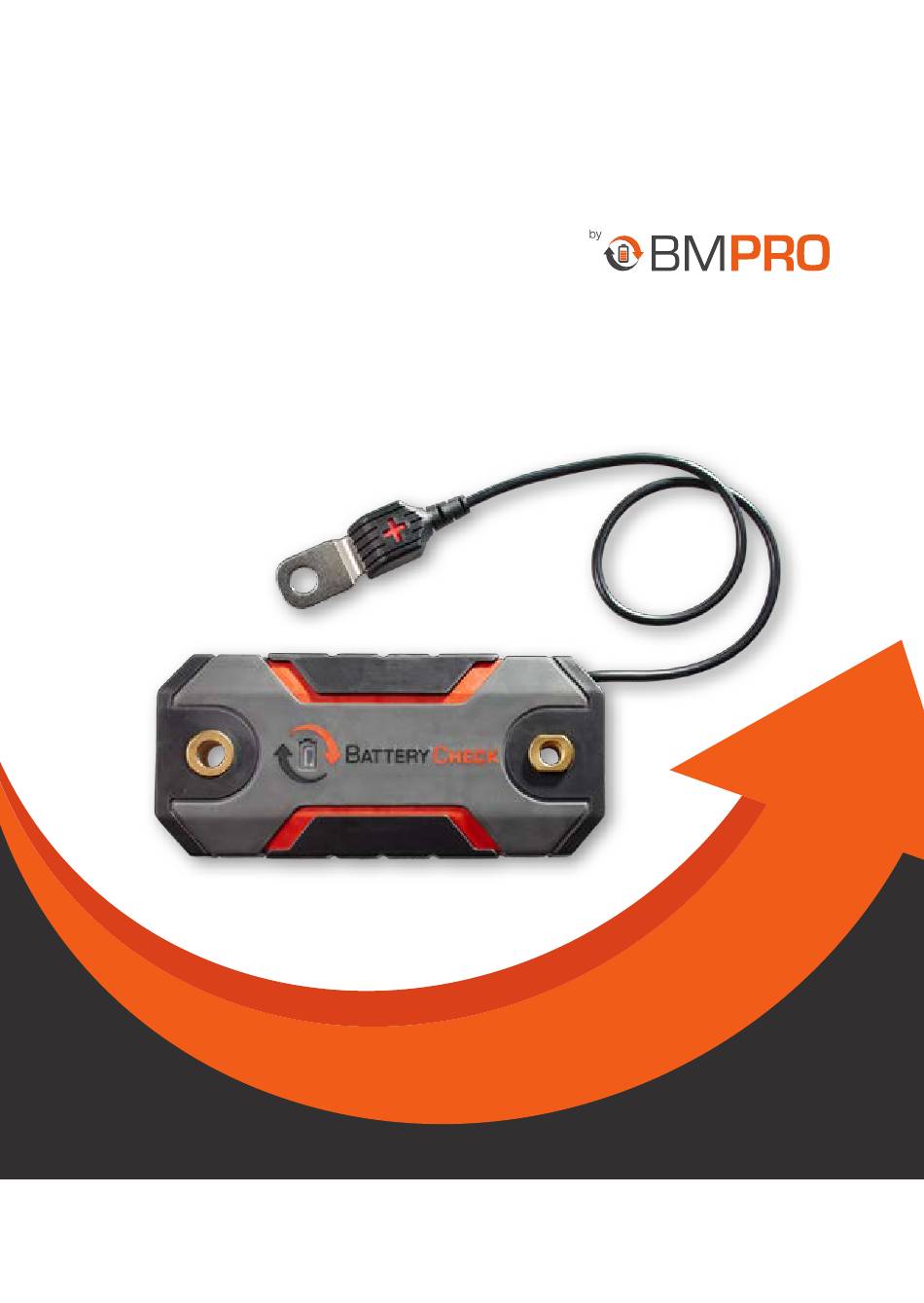

- Page 1 BatteryCheck USER MANUAL BM PRO - 19 Henderson Road, Knoxfield 3180, Victoria, Australia BATTERY MANAGEMENT TECHNOLOGY Phone +61 3 9763 0962 | +61 3 9763 8789 THAT POWERS YOUR ADVENTURES. Email sales@teambmpro.com | www.teambmpro.com...
-
Page 2: Table Of Contents
Disclaimer Setec makes no claim as to the accuracy or suitability of the information contained in this manual. Setec accepts no liability for any loss or damage, which may occur as a result of improper or unsafe use of its... -
Page 3: Introduction
INTRODUCTION SAFETY PRECAUTIONS Please read the Safety Precautions carefully prior to installing BatteryCheck. Be sure to observe all precautions without fail. Failure to observe these instructions properly may result in property damage or personal CAUTION injury, which may be serious depending on the circumstances. -
Page 4: Accessories
Parameters monitored are: › Battery Voltage › Battery Charge/Discharge Current › Battery Temperature › Estimated State of Charge (SoC) › Estimated State of Health (SoH) › Estimated Discharge Time Remaining ACCESSORIES The following accessories are provided with BatteryCheck device: › 1 x brass battery post ›... -
Page 5: Hardware, Mounting And Installation
HARDWARE, MOUNTING AND INSTALLATION NAME AND FUNCTION OF PARTS Negative Battery Terminal/Connection New Negative Terminal Connection (connects to load) ‘+’ Positive Flying Lead and Temperature Sensor MOUNTING BatteryCheck has a terminal at each end; using these two terminals the device is wired in series with the negative terminal of the battery being monitored. - Page 6 5. Check that BatteryCheck unit light (located in the battery icon logo flashes green indicating correct electrical connection) 6. Visit Bluetooth® settings on your mobile device and ensure that this function is turned on. Consult your phone’s documentation regarding Bluetooth configuration if required 7.
- Page 7 FOR ANDROID™ 8. Once BatteryCheck app is installed on your phone, select the icon to start the app. Following the splash screen appearing, the Home screen will appear 9. Select the Set-Up tab at the top of the app. A pop-up selection should appear, then choose New Connection 10.
-
Page 8: App Set-Up
APP SET-UP The BatteryCheck app is intended to configure the BatteryCheck device and display current battery information. The Set-Up screen will provide the following settable options: Label Description Default Value Battery Volts A number in the range 9.0V to 13.0V. (12V Battery) 10.0V Warning A number in the range 18.0V to 26.0V. -
Page 9: Batterycheck Specifications
BATTERYCHECK SPECIFICATIONS Specification Voltage Measurement Range 8V to 30V Voltage Measurement Resolution 100mV (or 0.1V) Current Measurement Range ±100A Current Measurement Resolution 100mA (or 0.1A) Temperature Measurement Range -20 °C to 70 °C (Battery Terminal) Temperature Measurement Resolution 1 °C Monitored Battery Capacity 7Ah to 800Ah Visual and Audible Alarms... -
Page 10: Warranty Terms And Conditions
WARRANTY TERMS AND CONDITIONS Registering your BM PRO by Setec product is an important step to ensure that you receive all of the benefits you are entitled to. Please visit https://teambmpro.com/ warranty/ to complete the online registration form for your new product today. This registration is for original owners of BM PRO by Setec products only. - Page 11 NOTES:...
- Page 12 NOTES:...
- Page 13 NOTES:...
- Page 14 Drifter COMPREHENSIVE BATTERY AND WATER TANK MANAGEMENT Large LCD screen Water and waste tank monitoring including pump on/off switch Low voltage warning Battery monitoring - displays Clock and temperature gauge remaining time left in battery, volts and amps, charge/discharge USB charging port status and remaining capacity (state of charge) Battery isolating switch...
