OWNER'S MANUAL

BatteryCharge

FOR MODELS

BC15

BC25

www.teambmpro.com

Table of Contents

Need help?

Do you have a question about the BM PRO BatteryCharge15 and is the answer not in the manual?

Questions and answers

Summary of Contents for Setec BM PRO BatteryCharge15

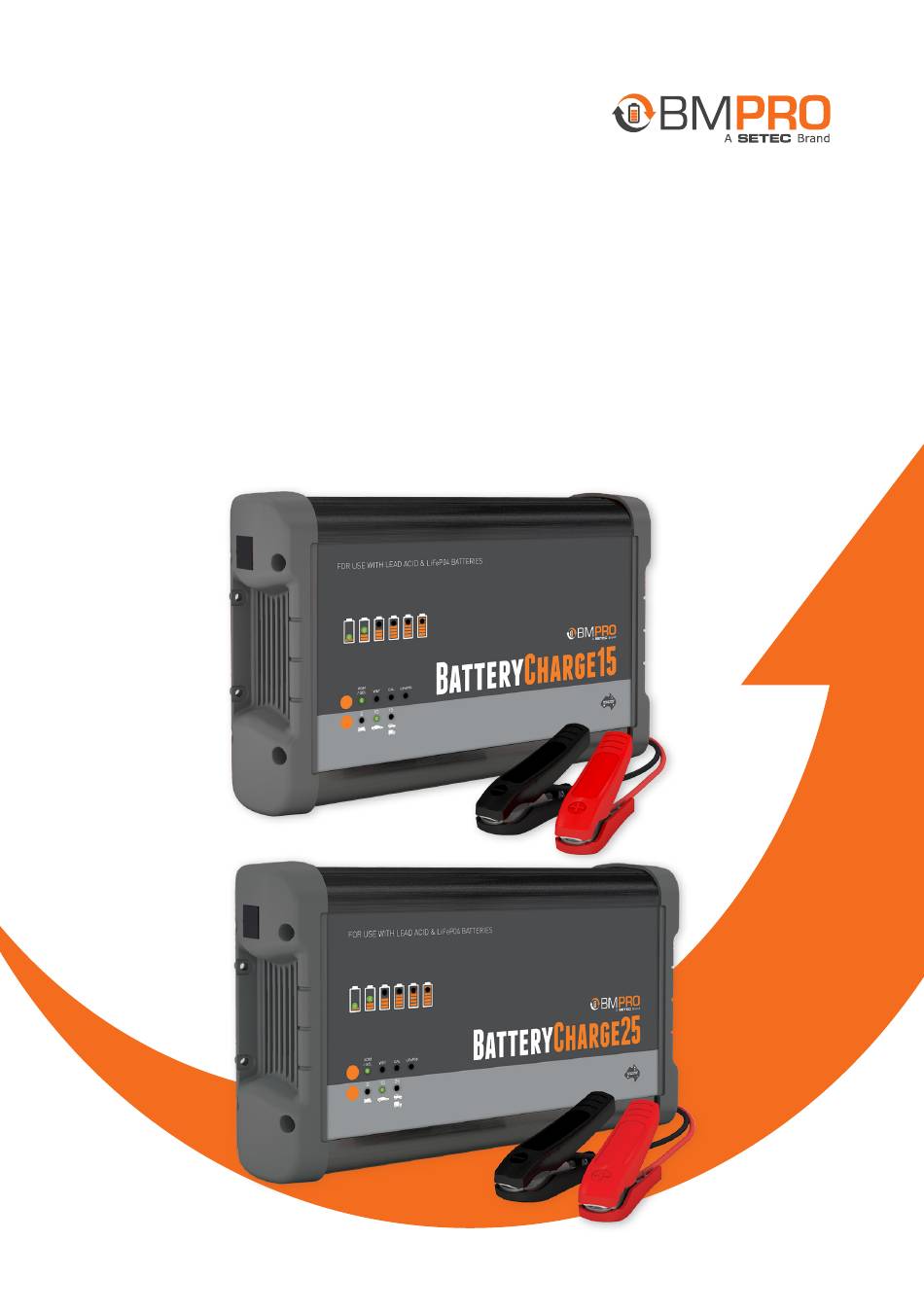

Page 1 OWNER’S MANUAL BatteryCharge FOR MODELS BC15 BC25 www.teambmpro.com...
Page 2 Disclaimer SETEC accepts no liability for any loss or damage, which may occur as a result of improper or unsafe use of its products. Warranty is only valid if the unit has not been modified or misused by the customer.
Page 3: Table Of Contents
CONTENTS Safety Precautions What’s Included Features Multi Chemistry Power Supply Polarity Protection Over Temperature Protection BC25 Battery Temperature Sensor Cooling Fan Display Battery Chemistry Selection AGM/Gel Calcium LiFePO4 Power Supply Adjustable Charge Rate 7 Stages of Charge Charging Instructions Batteries Power Supply Mode Specifications Mounting Instructions...
Page 4: Safety Precautions
SAFETY PRECAUTIONS Please read the Safety Precautions carefully before installing the power supply. Be sure to observe all precautions without fail. Failure to observe these instructions properly may result in property damage or CAUTION personal injury, which may be serious depending on the circumstances. Correct installation is the most critical factor in ensuring the safe use of the power supply.
Page 5: What's Included
WHAT’S INCLUDED Owner's Manual FEATURES The BatteryCharge15 (BC15) and BatteryCharge25 (BC25) are automatic 12V battery chargers with 7 charge stages. The 7-stage charger increases your battery’s life and performance as it gives high- performance and intelligent charging. As well as being able to use this charger on various types of batteries, it can also help recondition sulphated lead acid batteries or revive drained LiFePO4 batteries.
Page 6: Polarity Protection
Polarity Protection This allows the charger protection if there is a reverse connection or short circuit and stops any sparking from the output leads. Note: This feature is not available in Power Supply mode where a battery should not be connected. Over Temperature Protection A three-phase temperature protection system has been installed for your safety.
Page 7: Battery Chemistry Selection
BATTERY CHEMISTRY SELECTION Our Battery Chemistry option lets you set the charging profile of batteries depending on their chemistry (AGM/Gel, Calcium, Wet, or LiFePO4). This must be done to ensure you maintain your battery effectively and maximise its performance. To do this, press the battery chemistry button until you have selected the correct battery type.
Page 8: Adjustable Charge Rate
ADJUSTABLE CHARGE RATE The charge rate of the BatteryCharge can be adjusted to accommodate batteries of varying sizes. Both the BC15 and BC25 are designed to charge 12V batteries only Attempting to charge batteries with higher current, exceeding what is specified in the battery manual, may damage the battery.
Page 9 Desulphation When a battery has not been charged for some time, the lead-sulphate within the battery hardens. The desulphation stage is used to break this down and start the process back to a full charge. The 1st green LED in the top row flashes to indicate when in Desulphation and is constant when complete.
Page 10: Charging Instructions
Float This final stage keeps the battery at optimum charge without overcharging or damage to the battery. This allows the battery to be connected to the charger at all times, if required. All 6 green LEDs in the top row are constantly lit when in Float mode. Note: If user connected a battery greater than 90AH to a BC15 (or 150AH to a BC25), Float mode may not necessarily mean that the battery has been fully charged.
Page 11: Batteries
Step 5: Connect to Battery Attach the RED clamp from the charger to the Positive (+) battery post first, then attach the BLACK lead clamp from the charger to the Negative (-) battery post. Step 6: Charging During this process, the charging and ‘Fully Charged’ indicator lights will flash in various patterns.
Page 12: Power Supply Mode
POWER SUPPLY MODE Connect the BC15/BC25 to the mains supply and select Power Supply mode by depressing and holding the Charge Rate selection button for 10+seconds, or until all three LEDs in the bottom row are illuminated with the 3rd LED illuminating constant orange.
Page 13: Specifications
SPECIFICATIONS Part No. BC15 Type 7 Stage Input (nominal) 240VAC, 50Hz Input Power BC15 270W / BC25 430W Nominal Output Voltage 13.6V Minimum Start Voltage Output Current (Battery Charge Mode) BC15 2/10/15A / BC25 2/15/25A Rated Current (Power Supply Mode) BC15 10A / BC25 20A Back Drain <4mA...
Page 14: Fault Codes
FAULT CODES The top row first stage LED will flash red when a fault is detected. The LED will quickly blink the error code, pause for 2 seconds, then repeat for up to 30 seconds. Touching one of the push buttons while the error LED is flashing will make the unit re-attempt battery charge immediately.
Page 15: Warranty Terms And Conditions
Setec will not be liable for any costs, charges or expenses incurred in the process of returning a product in order to initiate a warranty claim...
Page 16 BMPRO A Setec Brand +61 3 9763 0962 sales@teambmpro.com 19 Henderson Rd, Knoxfield VIC 3180 Australia www.teambmpro.com...
