HUNTER HAWK 4

MKII

GAS STOVE

Instructions for Installation and Servicing

Please leave this instruction booklet with the user after the installation is complete. Leave the

system ready for operation and instruct the user in the correct use of the appliance and operation of

its controls. Please refer to the appliance data plate for the specific model type.

Table of Contents

Need help?

Do you have a question about the HUNTER HAWK 4 MKII and is the answer not in the manual?

Questions and answers

Summary of Contents for HunterGas HUNTER HAWK 4 MKII

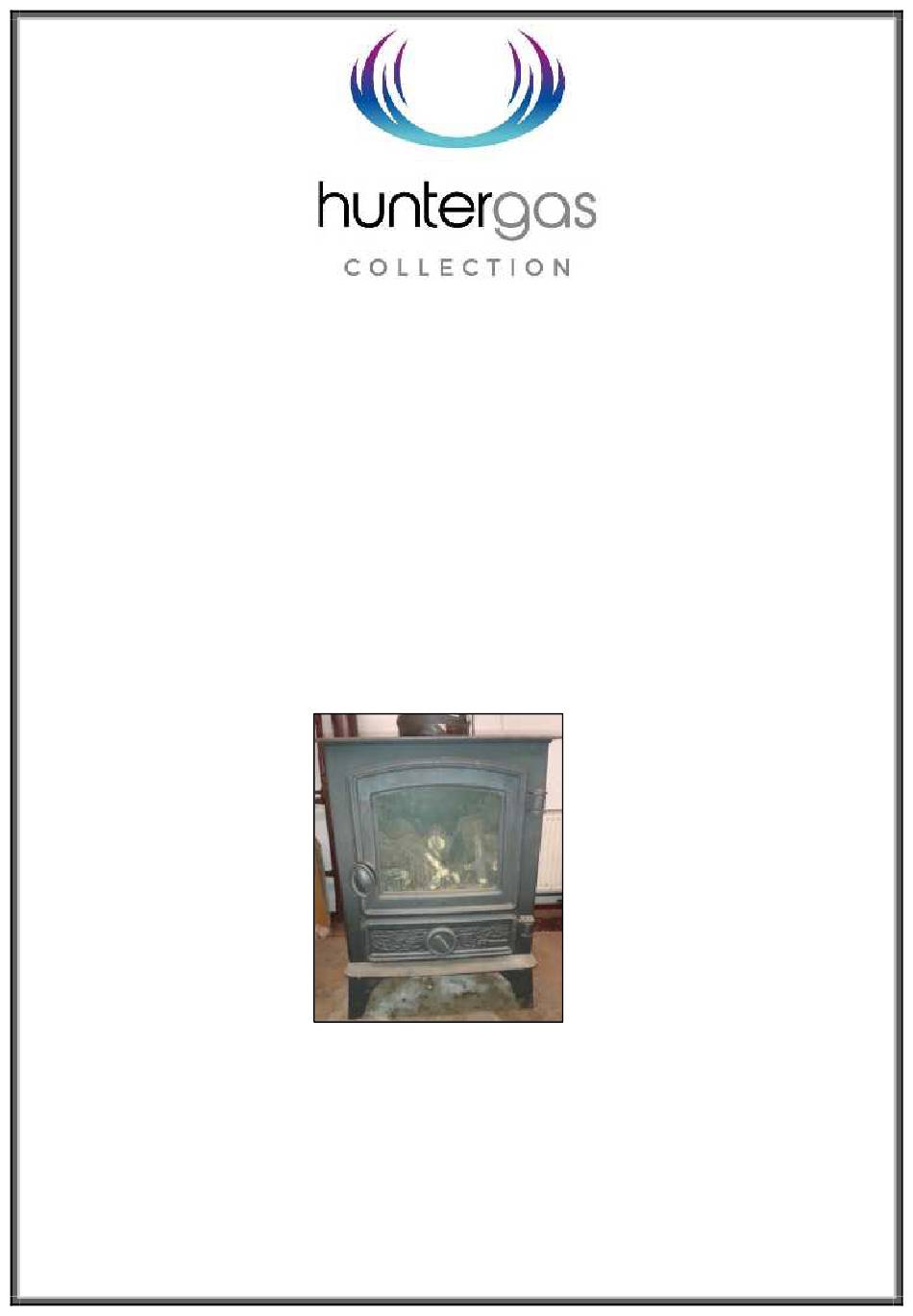

Page 1 HUNTER HAWK 4 MKII GAS STOVE Instructions for Installation and Servicing Please leave this instruction booklet with the user after the installation is complete. Leave the system ready for operation and instruct the user in the correct use of the appliance and operation of its controls.
Page 2: Table Of Contents
Contents INSTALLATION & COMMISSIONING CHECKLIST ..............3 TECHNICAL DATA…………………………....... 5 INSTALLING THE APPLIANCE………………………………..6 FLUE ARRANGEMENT …………………………………................8 ADDITIONAL AIR VENTING (GB ONLY) ..................8 OPENING THE STOVE DOOR……………………………………..............9 GAS SUPPLY CONNECTIONS....................10 TESTING SUPPLY PRESSURE ....................10 INSTALLATION OF THE FIRE-BED INTO THE STOVE………….………………………………………………………….
Page 3: Installation & Commissioning Checklist
INSTALLATION & COMMISSIONING CHECKLIST APPLIANCE INFORMATION Date Installed Appliance Stock Code Appliance Description Serial Number PURCHASE INFORMATION Dealer/Retailer Name Address Telephone Number Email Date Purchased INSTALLER INFORMATION Installer Name Gas Safe Registration Number Company Address Telephone Number Email...
Page 4 COMMISSIONING CHECK (Complete & Sign) Pass Fail Flue is correct for the appliance Flue flow test Spillage test Gas soundness & let by test Standing gas pressure mbar Appliance working pressure (on High Setting) mbar Gas rate m³h Has a remote control been fitted? (yes/no) Signature: Print Name: JIN04MKIIC_V1 10/01/17...
Page 5: Technical Data
TECHNICAL DATA NATURAL GAS Nominal Gas Pressure 20mbar Supply Gas Type/Category G20/I Injector Type/Marking Heat Input (Gross) Full 4.7kW 3.5kW Gas Flow Rate (m Full 0.447 Class Efficiency Class Countries of Destination GB & IE Only...
Page 6: Installing The Appliance
STOVE DIMENSIONS Diagram 1: Stove Dimensions INSTALLING THE APPLIANCE Pre-installation notes 1. Check the stove data plate to establish the gas type required. The data plate can be found on a chain at the top left rear corner of the stove. Before installation check that the local distribution conditions, nature of the gas and pressure, and adjustment of the application are compatible.
Page 7 8. Opening Clearances: for the relevant clearance distances for installing the appliance in an opening see diagram 2 and table 1. Diagram 2: Opening Clearances Table 1: Clearance Distances for Installing the Appliance IMPORTANT NOTE! Adequate clearance must be given between the appliance and the walls so that a satisfactory spillage test can be performed as detailed on page 17.
Page 8: Flue Arrangement
FLUE ARRANGEMENT Prior to installation the flue the chimney should be given a precautionary clean to ensure its entire length is free from blockages. Any flue dampers must be permanently fixed in the open position or removed altogether. The chimney should be smoke tested to ensure soundness. The GAS SAFE REGISTERED ENGINEER commissioned to install this appliance is wholly responsible for deciding the suitability of any flue arrangement to operate in conjunction with this gas appliance.
Page 9: Opening The Stove Door
OPENING THE STOVE DOOR NOTE! This appliance must never be used if the glass door panel is broken, removed or if the door is open. Before gaining access to the burner tray, first make sure that the stove is switched off and is cold. Firstly remove the door handle by turning anticlockwise.
Page 10: Gas Supply Connections
GAS SUPPLY CONNECTIONS The appliance is supplied with an 8mm Bundy pipe and an 8mm compression elbow to allow easy connection to the mains gas supply. This supply gas pipe should incorporate a gas service isolation tap that is situated within 1 metre of the application.
Page 11: Stove
INSTALLATION OF THE FIRE-BED INTO THE STOVE IMPORTANT NOTE CERAMIC COALS AND LOGS GET VERY HOT! NEVER ATTEMPT TO HANDLE HOT COALS OR LOGS WITH BARE HANDS AND NEVER PLACE HOT COALS OR LOGS ON OR NEAR COMBUSTIBLE SURFACES. HUNTER STOVES LTD ACCEPTS NO RESPONSIBILITY FOR ANY INJURY HOWEVER CAUSED WHILST HANDLING HOT COALS, LOGS OR CERAMICS.
Page 12 The first log to be placed Log A. This is placed around the left-hand front flame port hole in the matrix. The log should sit comfortably in place on the matrix as shown in photo 6. Photo 6: Installing Log A. 3.
Page 13 Log E is located to the left of the furthermost right hole in the matrix, the top resting on log C to the left of it (photo 10). The log picture is now complete. The stove should be lit and the flame picture checked with the door Photo 10: Complete Log Picture.
Page 14: Fitting The Canopy - (Optional)
FITTING THE CANOPY – (OPTIONAL) There is an optional canopy available for the Hunter Hawk MKII. The canopy can be simply slid into place on the top plate of the stove body (Shown in photo 11), making sure that the two welded tabs (located either side of the canopy) fit under the top plate. The canopy is then secured in place by tightening the two fixing screws (one located either side of the canopy) with a flat-bladed screwdriver, shown in photo 12.
Page 15: Spillage Monitoring System
Spillage Monitoring System The appliance is fitted with spillage system (TTB), which is located near the draught diverter and operates to shut the appliance off if the evacuation of combustion products is interrupted (for example caused by lack of flue pull or flue blockage). The spillage system MUST NOT be adjusted, modified or put out of action by the installer.
Page 16: Servicing Instructions
SERVICING INSTRUCTIONS Any recommendations made here are in addition to the standard servicing procedures used by the servicing engineer. A GAS SAFE registered fitter using only original Hunter Stoves parts should carry out servicing. 1. Open the stove door as described on Page 9. 2.
Page 17: Spares
SPARES LIST PART DESCRIPTION PART NUMBER TTB SWITCH, 150º 494-0851 TTB LEAD ASSEMBLY CN VARIANT CFB06ARRT004CN GLASS PANEL (D TYPE DOOR) HCR06058 GLASS PANEL (STANDARD DOOR) HCR06039 GLASS CLIP & SCREW HHR08046 DOOR ROPE KIT (D TYPE DOOR) SCPHKDRSK DOOR ROPE KIT (STANDARD DOOR) SCPHKRSK GAS BURNER FULL ASSEMBLY, 4kW NATURAL GAS, MANUAL CONTROL GYB04NYM...
