Summary of Contents for Mega LED Lighting MJ-1220
-

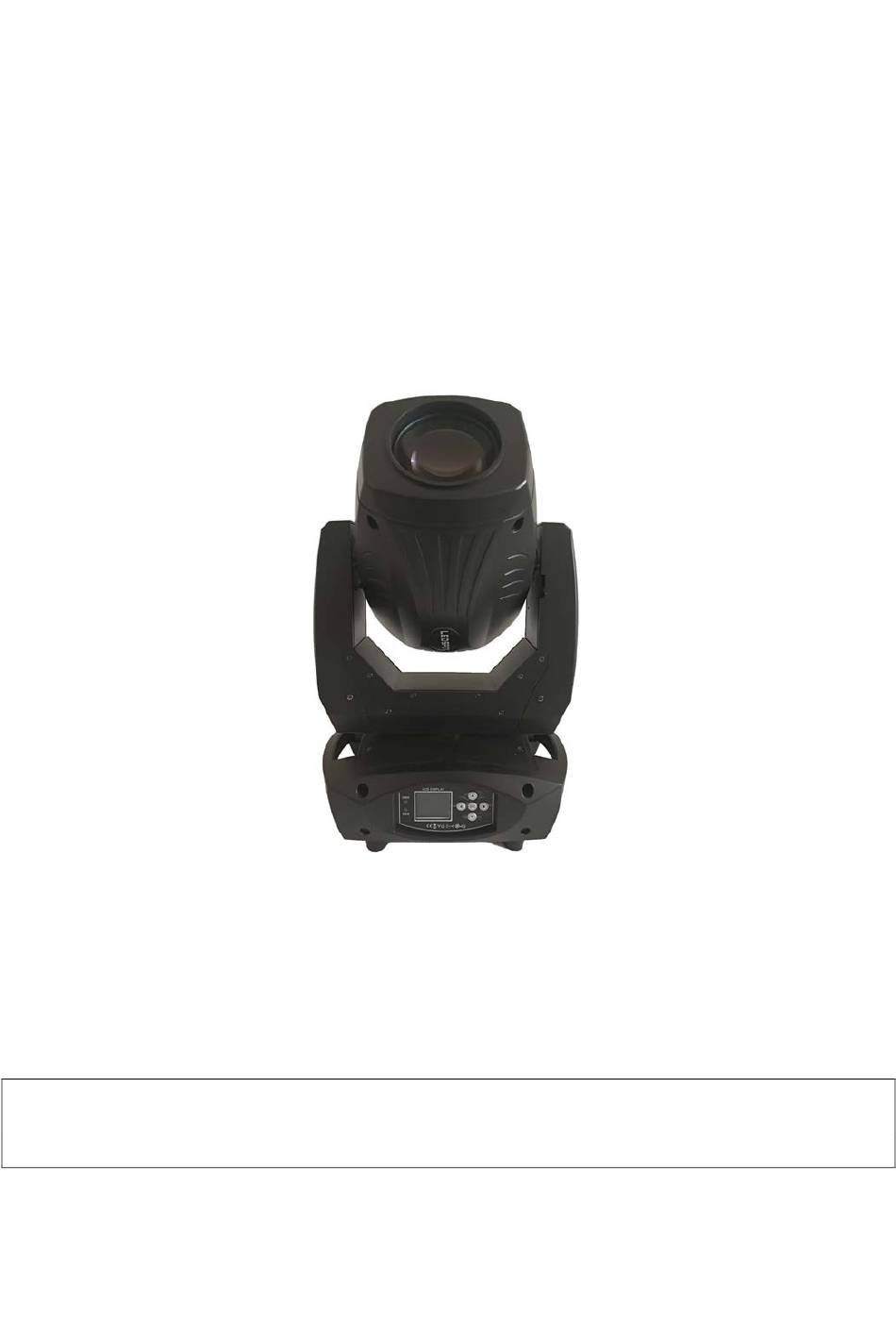

Page 1: User Manual
LED BEAM SPOT MOVING HEAD LIGHT MJ-1220 (3IN1) User manual PROFESSIONAL LED LIGHTING ====== ======== Thank you for choosing our LED moving head light. For the sake of your safety, Please read and follow these instructions carefully and keep this manual in a safe place for future... -
Page 2: Table Of Contents
Catalogue Chapter Page Safe Usage Of The Product -----------------------------------------------------------------------------------------3 Install The Equipment ------------------------------------------------------------------------------------------------4 Power Code Connection ---------------------------------------------------------------------------------------------4 DMX Connection ------------------------------------------------------------------------------------------------------5 DMX Terminator -------------------------------------------------------------------------------------------------------6 Function Set ---------------------------------------------------------------------------------------------------------------6 Operation Menu ---------------------------------------------------------------------------------------------------------7 Control panel of LED display information -----------------------------------------------------------------------9 Maintenance --------------------------------------------------------------------------------------------------------------9 Keeping The Product Clean ------------------------------------------------------------------------------------------9 Trouble Shooting ----------------------------------------------------------------------------------------------------------9... -
Page 3: Safe Usage Of The Product
SAFE USAGE OF THE PRODUCT When unpacking and before disposing of the carton, check there is no transportation damage before using the product. Should there be any damage caused by transportation, consult your dealer and do not use the apparatus. The product is for indoor use only, IP20. -
Page 4: Install The Equipment
Install The Equipment: Use 2pcs clamp and 1safety cord(need to purchase).Use clamp fix with light hook which in the packing box with light, then use screw install to the bottom of lamp. Hang the fixture on the structure and fasten the screws attached to each clamp. Make sure the light is installed reliable, and confirm the light which you fixed is strong enough for hanging the light. -
Page 5: Dmx Connection
DMX Connection: Connection between the controller and a projector and between one projector and another must be made with a 2 core-screened cable, with each core having at least a 0.5mm diameter. Connection to and from the projector is via cannon 3 pin (which are included with the projector) XLR plugs and sockets. -
Page 6: Dmx Terminator
DMX Terminator: In the Controller mode, at the last fixture in the chain, the DMX output has to be connected with a DMX terminator. This prevents electrical noise from disturbing and corrupting the DMX control signals. The DMX terminator is simply an XLR connector with a 120Ω (ohm) resistor connected across pins 2 and 3, which is then plugged into the output socket on the last projector in the chain. -
Page 7: Operation Menu
Use button switch can set the address code and function code easily. Check or modify lighting function settings, Press the any button. LCD display panel will display main menus. Function operation menu all have corresponding submenu . Each menu all represent the specific functions of lamps, specific see below "operation menu"... - Page 8 Motor Calibration Password Motor Password System Test Auto test LED 200W BSM System Info V01.01 Moto Soft Ver. V01.01 Display Soft Ver. System OK! Sub Menu description Sub menu include address, System Set, Manual Drive, Motor Calibration, System Test, System Info. Press the main menu picture to do each setting.
-
Page 9: Control Panel Of Led Display Information
Control panel of LED display information: DMX signal ok Blue No DMX signal Error Maintenance: To prolong the life of the projector, some maintenance work has to be done to ensure the LED optical system in good condition. If the projector does not function, check the fuses on the power socket of the projector, they should only be replaced by fuses of the same specification. -
Page 10: Equipment And Appendix
Equipment and Appendix: The packing list of this light as follows: ☆ Led moving head light 1pcs ☆ Power Cable 1pcs ☆ XLR connector 1unit ☆ Light Hook 2pcs ☆ The Product of Instruction 1pcs Channel List:(18CH) Channel Function Value Function Description 0~255 Pan movement (0-540) - Page 11 75～84 Gobo 3 shake from fast to slowly 85～94 Gobo 4 shake from fast to slowly 95～104 Gobo 5 shake from fast to slowly 105～114 Gobo 6 shake from fast to slowly 115～124 Gobo 7 shake from fast to slowly 125～134 Gobo 8 shake from fast to slowly 135～144...
-
Page 12: Technical Parameters
0～127 Frost OFF CH14 Frost 128～255 Frost ON 0～255 0-100% Linear focus CH15 Focus 0～255 0-100% Linear zoom CH16 Zoom 0～50 No function 51～100 Function auto test 101～150 Auto1 CH17 Macro 151～200 Auto 2 201～255 Sound control 0～250 No function CH18 Reset 251-255...
