Summary of Contents for Crazy Monkey Creations 2 Yard Electric Skein Winder

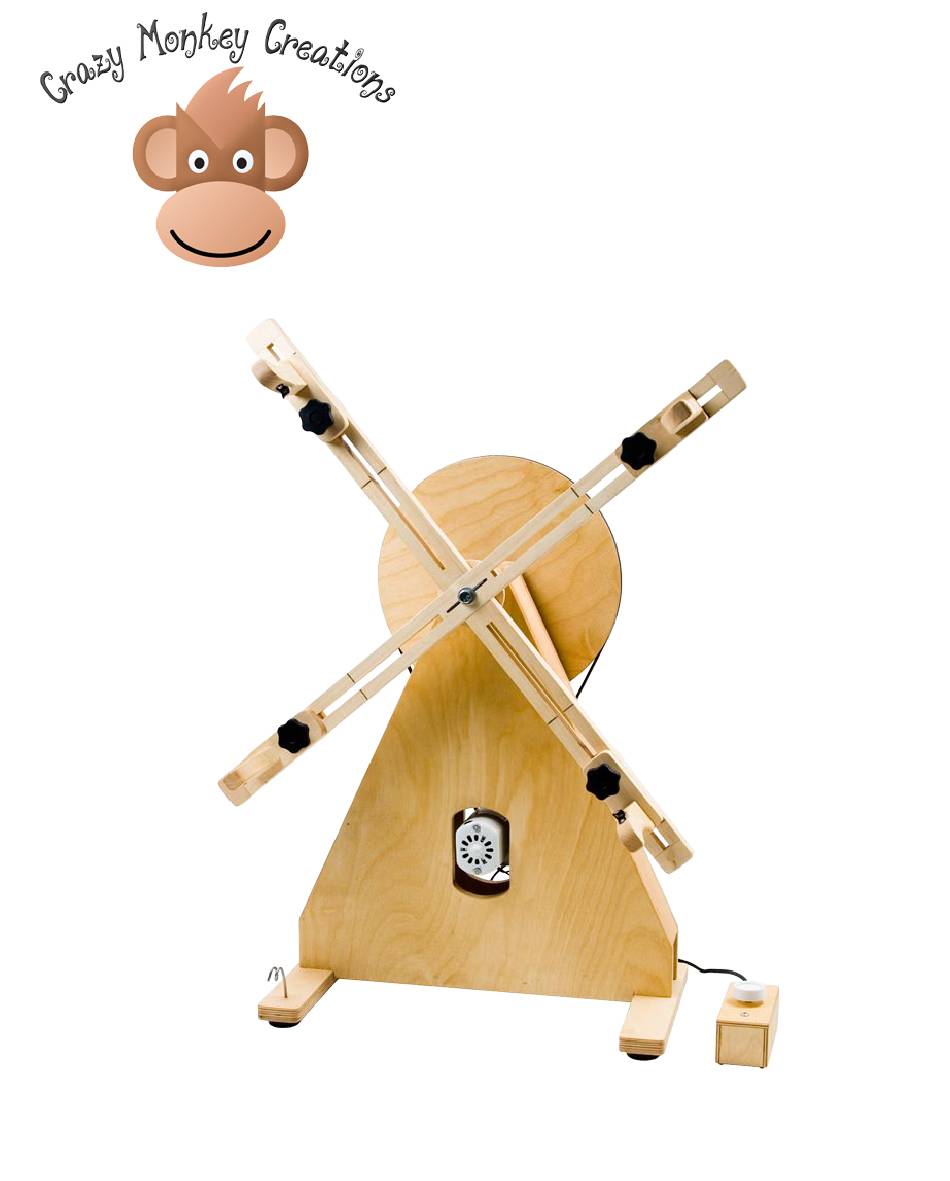

- Page 1 2 Yard Electric Skein Winder Assembly and Use...
-
Page 2: Package Contents
Package Contents • 1 - Triangular Base (w/ motor) • 1 - 3/8 x 7” Hex Head Bolt • 1 - Cross Arm (w/ washer & roll pin) • 1 - Left Foot (w/ yarn guide) • 1 - 3/8 x 2” Fender Washer •... - Page 3 Assembling the Winder Cross Arms: Inspect the contents of your package. If any parts are missing or damaged, call or e-mail us so we can send you replacement parts immediately. Main Body: Insert 3/8 x 6-1/2” bolt with washer and roll pin through the hole in the center of the cross arms.
- Page 4 Pulley & Belt: extra length of the belt under the small pulley on the motor shaft. Carefully lift the wooden pulley until you can slip it on the end of the bolt, while being sure not to drop the belt. Push the pulley onto the bolt and align the slot with the roll pin.
- Page 5 Belt Tension: Adjustable Fingers: The drive belt tension is adjusted to Insert a 5/16 x 1-3/4” carriage bolt the correct tension before shipping. through the wooden slider pad, so that However should the motor move during the square neck of the carriage bolt seats shipping or assembly readjustment may in the square hole in the pad.
- Page 6 Using the Winder Adjusting Skein Size: Danger: The winder arms are very solid and spin at very high speed. Keep hands, arms, head and other appendages clear of spinning winder. Severe injury can occur. Danger: The yarn moves extremely fast. Do not touch the yarn or attempt to guide it with your hand while...
- Page 7 Winding a Skein: Winding From a Swift: Securely attach your swift to a table or solid object. The winder winds very fast causing strong vibrations in the swift. Be sure that the yarn is not tangled on the swift. If the yarn gets stuck it could break or damage the swift.
- Page 8 Warranty We produce our skein winders to the highest standards of quality and performance. Your skein winder is backed by a one year warranty against defect in material or workmanship. If your winder breaks or becomes non functional for any reason, within one year from the date of delivery we will repair or replace it free of charge.
