ALTIZEN PRO INSTALLATION GUIDE

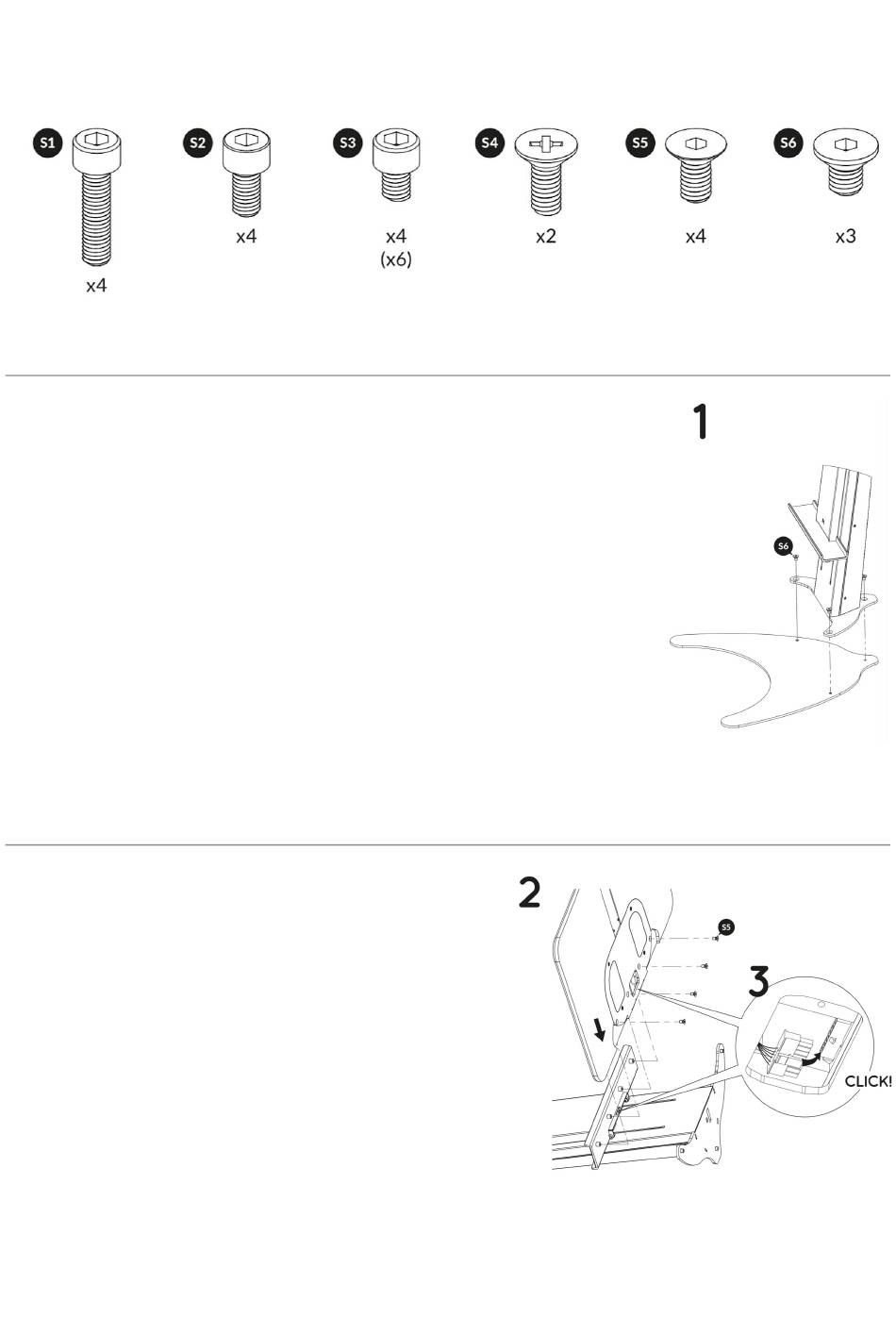

Step 1
Place the base on table. Attach the pillar to the base with 3
screws
Step 2 & Step 3
Step 2: Place the base and connected pillar on its back.
Attach the worksurface to the pillar with 4 screws.
Step 3: Connect the cable connector under worksurface
to the cable receptacle on the pillar and ensure you hear
a "click sound".
Advertisement
Table of Contents
Summary of Contents for Altizen PRO Series
- Page 1 ALTIZEN PRO INSTALLATION GUIDE Step 1 Place the base on table. Attach the pillar to the base with 3 screws Step 2 & Step 3 Step 2: Place the base and connected pillar on its back. Attach the worksurface to the pillar with 4 screws.
- Page 2 Step 4 Cover the cable connector with 2 screws. Laptop Module Step 5 Attach laptop platform to the mount on the pillar with 4 screws.
- Page 3 Step 6 Please silicon cover over the screws. Step 7 Plug power adaptor into the DC jack at the back of the pillar. Single Module Step 5 Attach VESA bracket to the sliding mount on the pillar.
- Page 4 Step 6 Attach VESA mount to the back of the monitor (screws come with monitor). Step 7 Slot the monitor with VESA mount to the plate on the pillar. Tighten 2 screws underneath. Step 8 Plug power adaptor into the DC jack at the back of the pillar.
- Page 5 Dual Monitor Module Step 5 Attach the dual bar to the pillar with 4 screws. Attach both VESA bracket to both plates on the dual bar with 3 crews on each side. Step 6 Attach both VESA mounts to the back of your monitors. Step 7 Slot the monitor with VESA mount onto the VESA bracket and tight the 2 screws underneath.
- Page 6 Step 8 If you need to adjust the distance between each VESA mounts, loosens the thumbscrews at the top of the VESA bracket and slide your monitors to your desired position, before tightening the screws. Step 9 Plug power adaptor into the DC jack at the back of the pillar.
