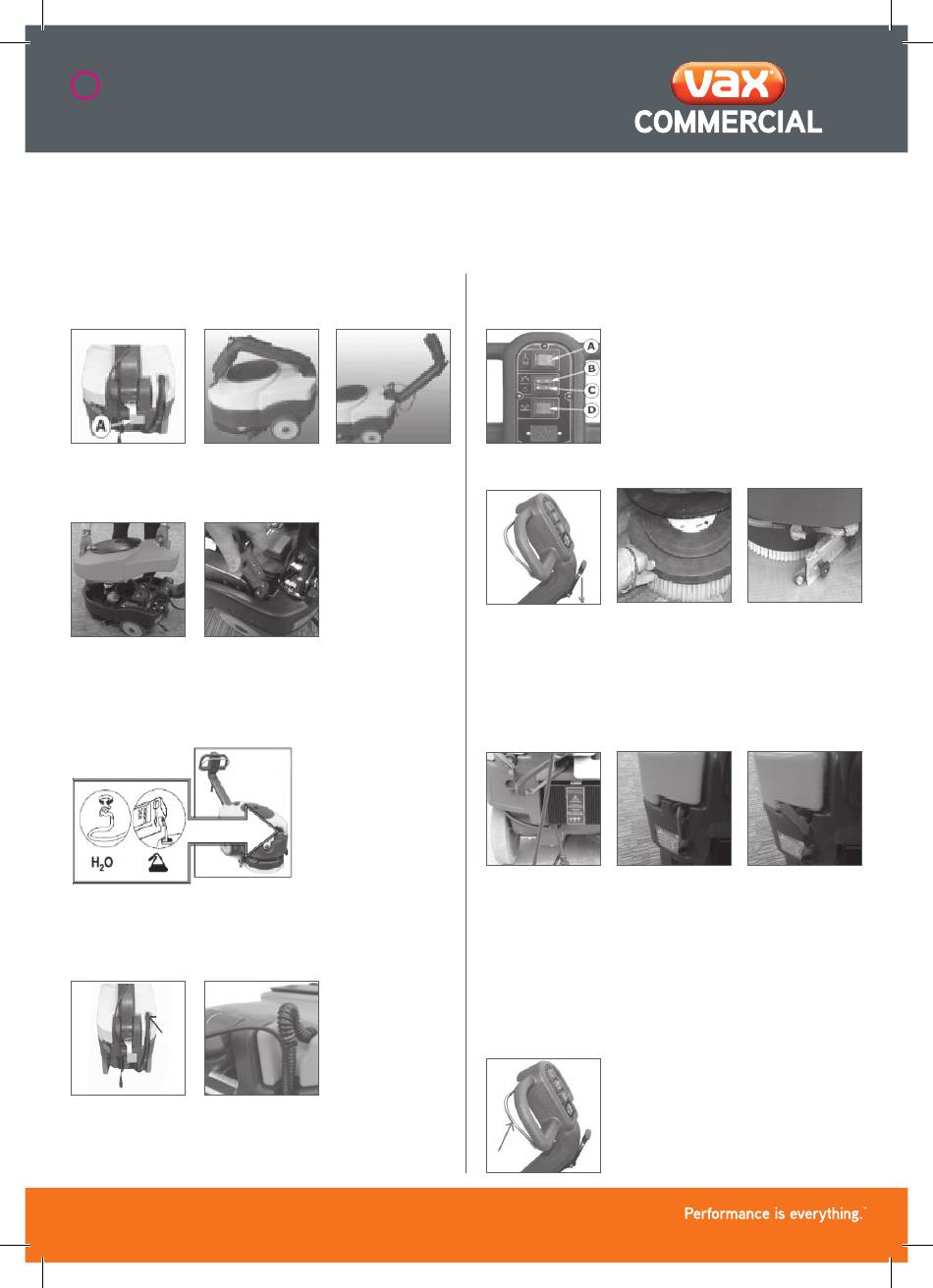

Vax VCSD-01 Quick Start Manual

Quickstart Guide
Getting the most out of your machine
1) Getting started
Release the handle bar by depressing the handle
release pedal (A).
Disconnect the recovery hose, remove the orange dirty
water tank, plug the charger into the battery then replace
the tank. The unit needs to be plugged in and charged for
4 hours before use until the green LED is displayed.
Fill machine - Pour recommended amount of cleaning
solution into the opening as shown, and top with water
to maximum fill level (max temp of 50°C).
Connect the recovery hose located on the back of the
machine to the dirty water tank.
VCSD-01/VCSD-02
VCSD-01_VCSD-02_QSG_A5_[J1831]_Amd_11.07.13_2.indd 1
VCSD-01/VCSD-02
Scrubber dryer
2) How to use
Turn the machine on and select the
required setting.
A = on/off switch (mains powered
unit only)
B = suction motor on/off switch
C = water flow on/off switch
D = brush motor on/off switch
To lift or lower Place scrubber
the squeegee pad on the floor
use the lever and lift pad
as indicated. holder over the
pad to fix to the
machine.
Connect main Rotate the isolation key on the back
isolator key of the unit anti-clockwise to isolate
(battery all power. The key can now be
version only). removed from the unit.
Insert the key and fully rotate
clockwise to provide power for
all functions. The key cannot be
removed in this position.
To activate brushes, pull control
lever towards handle.
Open and
adjust the clean
solution water
tap to adjust
flow of water.
