2.2. LEDs

There are two LEDs in your programming tool. Each LED will display specific information,
as shown below:

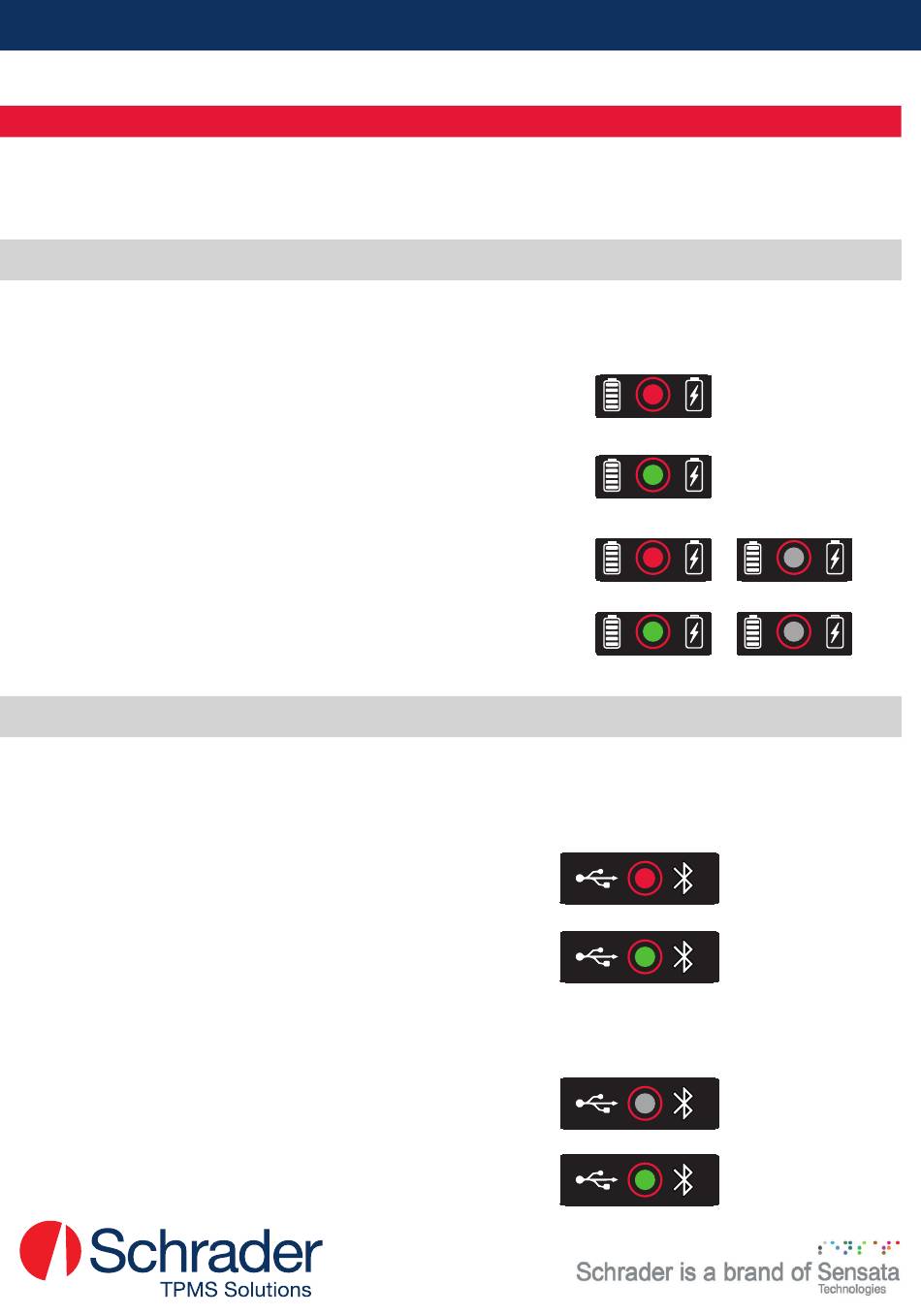

2.2.1. Power LED panel
The Power LED indicates if the tool is ON and the charging status.
• Solid red – charging
• Solid green – fully charged
• Flashing red – battery empty – charging required
• Flashing green – battery OK
2.2.2. Status LED
The Status LED indicates whether the diagnosis or programming functions are in pro-
gress, have failed or have been successfully completed.
• Solid red – diagnosis or programming error
• Solid green – diagnosis or programming OK
• Flashing green – diagnosis or programming in progress
