Sennetech SCT-100 Quick Start Manual

Pelco RS-422 to Vicon RS-422 Version 1.1
Converts Pelco RS-422 camera control code to Vicon RS-422 code for a single P/T/Z. Only camera
commands for the address matching the Address Selector switches will be converted.
Input Pelco "D" or "P" code at 2400, 4800 or 9600 baud is detected automatically.
Vicon output code is switch selectable for 4800 baud or 9600 baud.
A test mode sends a continuous square movement pattern to the P/T/Z so the wiring and addressing
between the translator and the P/T/Z can be checked without an Pelco controller.
The removable mounting
clip can be snapped onto a
din rail or screwed to a
panel or wall.
Sennetech, Inc. 6455 W. Bath Rd, Perry, MI 48872 U.S.A. Ph (517) 675-1150 Fax (517) 675-1151

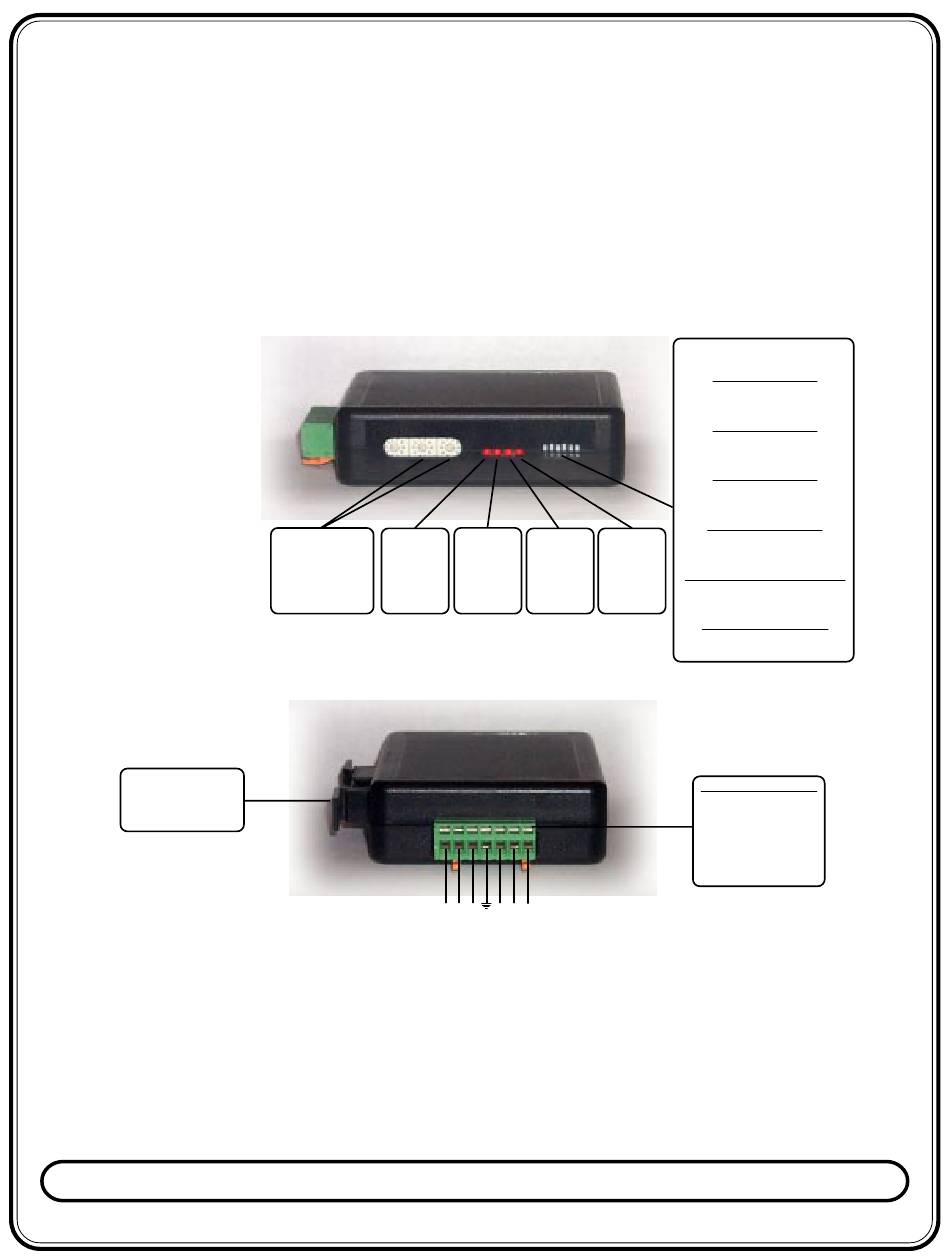

SCT-100-Pelco-Vicon
Single Camera Code Translator
Address Selector Rx
Selects the camera Indicator
address. The valid Flashes when
address range is there is data
001~256 on the input
lines.
_
+
Data
Input
Connect power to the Pwr
inputs. Do not connect
power wires to the Gnd.
SPECIFICATIONS
Size: 4.5" x 3.5" x 1.25"
Weight: 0.5 lb
Power: 6Volt to 15Volt AC or DC at 75ma
Environmental: Indoor use only
www.sennetech.net
Status
Error Tx
Indicator Indicator Indicator
Flashes on Lights if an
Flashes when
input error. invalid test Vicon output
address is code is sent.
selected.
_
+
Data
Power Output
Configuration Switches
Switch 1: Unassigned
Up:
Down:
Switch 2: Unassigned
Up:
Down:
Switch 3: Unassigned
Up:
Down:
Switch 4: Vicon Output
Up: 9600 Baud
Down: 4800 Baud
Switch 5: Output Camera Address
Up: Set camera to #1
Down: Camera address = Input
Switch 6: Output test code
Up: Output test pattern On
Down: Output test pattern Off
Removable edge connector.
Insert a small screwdriver in
the upper slot to force open
the wire clamp. Push in all
the way to open fully. Place
stripped wire end(s) in the
open clamp and withdraw
screwdriver.
