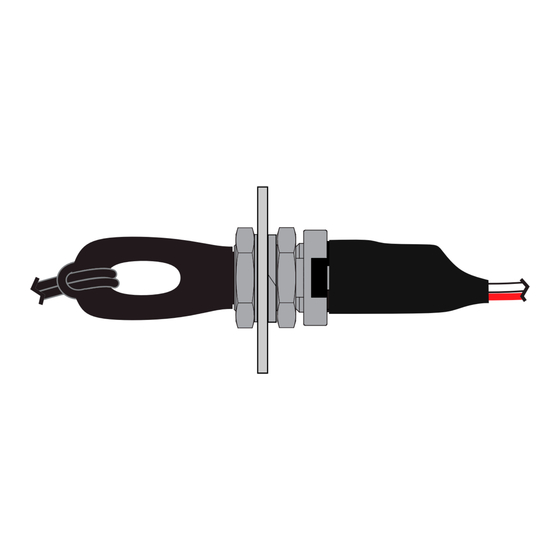

EDGE ESC LOCK HARNESS AND KEY
Mounting
The
socket
may
be
installed
through
a
panel or secured inside a
fuselage.

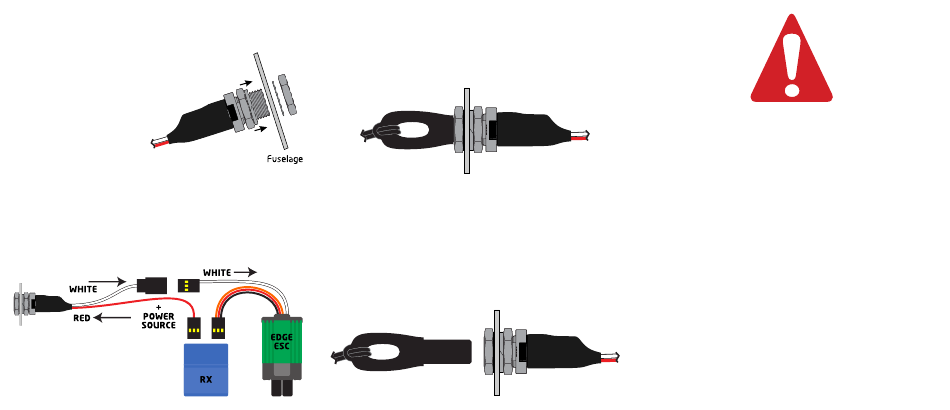

Wiring Diagram
Connect the white wire to the Aux Line (white wire) on
an Edge ESC.
Connect the red "+" wire to any servo wire with a Y
harness.
www.modellmarkt24.ch
www.modellmarkt24.ch
Operation
Key in socket OR disconnected wire in socket harness
= ARM LOCKED.
A properly programmed and wired Edge will be
incapable of arming when the key is in the socket.
If the key is placed in the socket or the arm lock socket
loses power, the ESC will go into a locked state - even
if it is running.
Key removed + power to socket = ARM UNLOCKED. ESC
must receive low throttle signal to arm and run.
Warning
Edge Arm Lock mode is intended as a
secondary safety device. It is not intended
to replace safe practices or careful handling
of your RC power system, vehicle, and
transmitter.
Edge Arm Lock is only operational if you
have successfully conigured the Edge ESC
using Castle Link software.
Edge Arm Lock requires that the AUX LINE
of the Edge ESC receives a voltage between
1.8V and 8.4V to arm. Failure of the power
source (0 volts) will cause the ESC to enter
Arm Lock mode.
