NYW S603 User Manual

Waterproof ip 68 metal case, anti-vandal wg interface: wg26 input/output?with doorbell support and interface: bottom and circuit segregate, any doorbell can be connected multi-function standalone access controller and reader capacity: 2000 cards/codes thr
Hide thumbs
1
2
3
4
5
6
7
8
9
Table of Contents

Advertisement

Quick Links

Download this manual

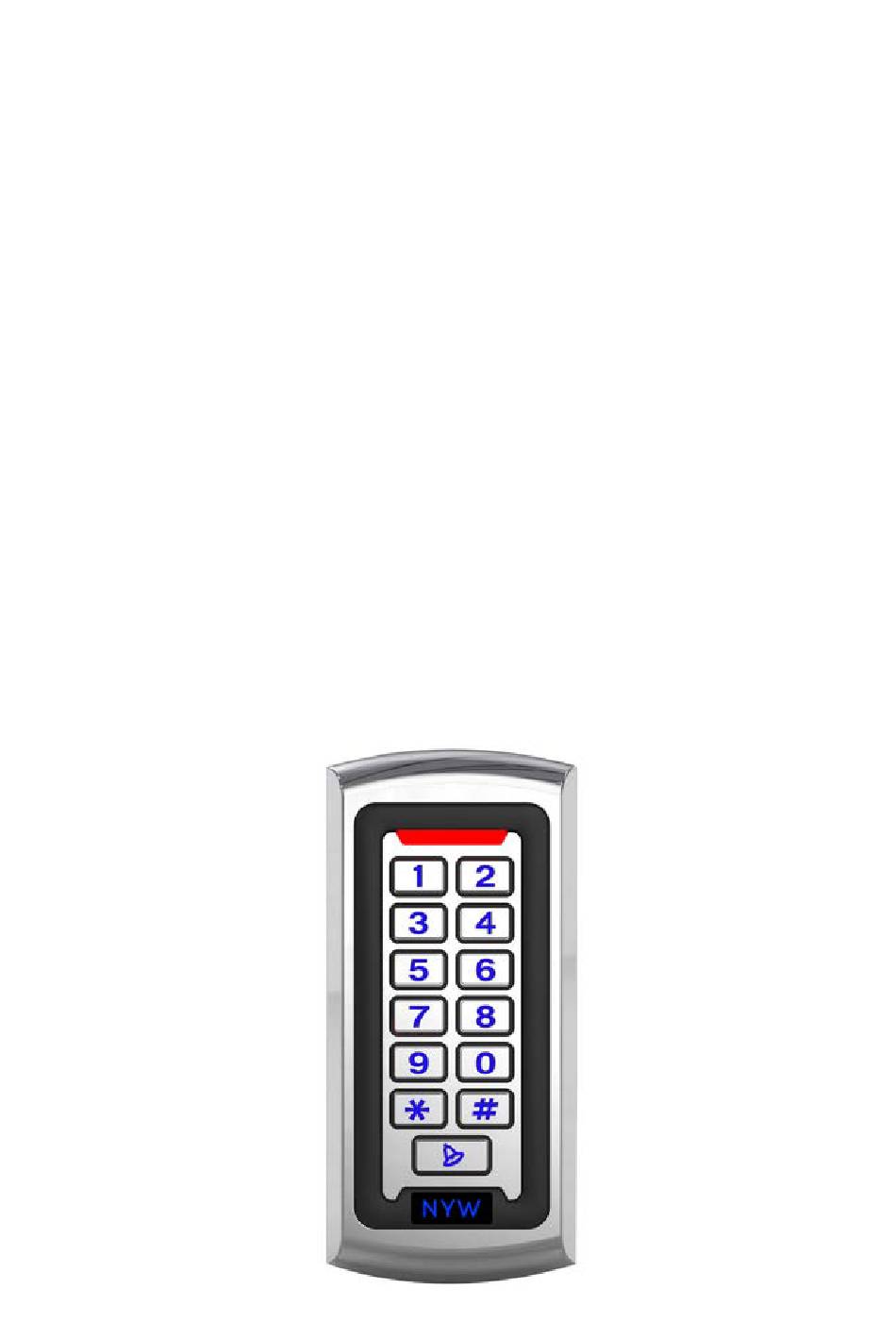

Waterproof IP 68
Metal case, anti-vandal
WG interface: WG26 input/output
with doorbell
support and interface: bottom and circuit segregate,
any doorbell can be connected
Multi-function Standalone Access controller and
reader
Capacity: 2000 cards/codes
Three accesses: card, pin, card+pin
Metal waterproof Standalone Keypad
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the S603 and is the answer not in the manual?

Questions and answers

Summary of Contents for NYW S603

  • Page 1 Waterproof IP 68 Metal case, anti-vandal WG interface: WG26 input/output
with doorbell support and interface: bottom and circuit segregate, any doorbell can be connected Multi-function Standalone Access controller and reader Capacity: 2000 cards/codes Three accesses: card, pin, card+pin Metal waterproof Standalone Keypad User Manual...

  • Page 2: Specifications

    Please Read the manual carefully before use this device 1. Description The unit is a simple standalone keypad, also can be used as a wiegand keypad reader. This unit supports up to 2000 pin users, 4 digits PIN. It can be used as door access such as small shops, domestic households, factories, warehouses, laboratories.

  • Page 3: To Reset To Factory Default

    Lock Output Load Max 3A Alarm Output Load Max 20A Operating Temperature -45℃～60℃ Operating Humidity 10%- 90% RH Waterproof Conforms to IP68 Adjustable Door Relay time 0 -99 seconds 4. To Reset to Factory Default a. Disconnect power from the unit b.
  • Page 4 ： Relay Output Delay Time Press 4 0～99 Note: 0-99 is to set the door relay time 0-99 seconds; t he factory default is 5 seconds. 5.4 Alarm time setting ： 0 ～ 3 Press 5 Note: ; the factory default is 1 minute To set the alarm output time (0-3 minutes) door open detection setting...

  • Page 5: Sound And Light Indication

    8.Sound and Light indication Operation Status Red Light Green Light Yellow Light Buzzer Power on Bright Stand by Bright Press keypad Operation successful Bright Operation failed DiDiDi Enter into programming mode Bright In the programming mode Bright Exit from the programming Bright mode Open the door...
  • Page 6  Attach the keypad to the back cover. 10. Wiring Colour Function Description Pink BELL_A Doorbell button one end Pink BELL_B Doorbell button to the other end Green WG output D0 White WG output D1 Grey ALARM Alarm negative(alarm positive connected 12 V+) Yellow OPEN Exit button one end(the other end connected GND)
  • Page 7 11.2 special power supply diagram:...
  • Page 8 12. As a Wiegand Keypad Reader In this mode the unit supports a Wiegand 26 bit output so the Wiegand data lines can be connected to any controller which supports a Wiegand 26 bit input.
  • Page 9 14 Packing list Name Quantity Remarks Keypad User manual Φ6mm×30 mm Rubber plug Φ4mm×28 mm Self tapping screws IN4004 Diode...
