Summary of Contents for SKKYE LIGHT Dimmable DualStrip 18

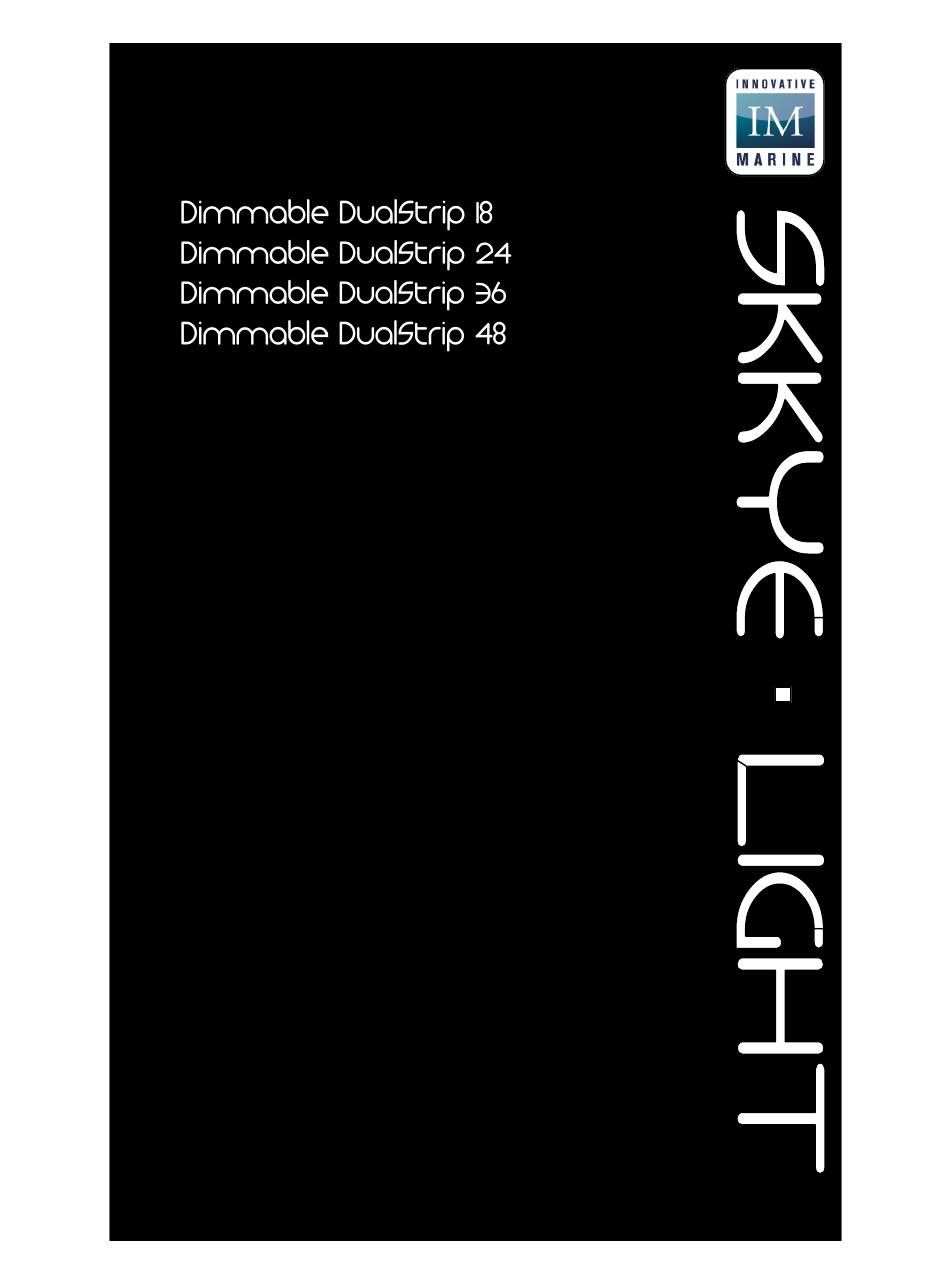

  • Page 1 Owner’s Manual...
  • Page 2 TABLE OF CONTENTS Important Safety Instructions Parts—Exploded View & Identification Dimmable DualStrip 18 Dimmable DualStrip 24 Dimmable DualStrip 36 Dimmable DualStrip 48 Introduction Features Specifications 18”, 24” Specifications 36”, 48” Getting Started Choosing a Location Dimmable DualStrip on Framed Tank...
  • Page 3 WARNING To guard against injury, basic safety precautions should be observed including the following: READ ALL SAFETY INSTRUCTIONS BEFORE USE. WARNING To avoid electric shock, special care should be taken since water is employed in the use of aquarium equipment. For each of the follow- ing situations, do not attempt to repair yourself.
  • Page 4  Do not use an appliance for other than intended use. The use of attachments not recommended or sold by the appliance manufacturer may case an unsafe condition.  Do not install or store the appliance where it will be exposed to the weather or to temperatures below freezing.
  • Page 5 Description Item Code SingleStrip/DualStrip Bracket 640001 Sliding Extension Rods 640006 Side Cap (Rt)-Dial Side 650001 Dimmable Dials 650002 18” Aluminum Shell 650003 18” Aluminum Heat Sink Plate 650004 6x1Watt LED-DualStrip 650011 .05Watt Lunar LED 650012 Independent LED Reflector 650013 18” Acrylic Lens 650014 Dimmable Circuit Board 650018...
  • Page 6 Description Item Code SingleStrip/DualStrip Bracket 640001 Sliding Extension Rods 640006 Side Cap (Rt)-Dial Side 650001 Dimmable Dials 650002 24” Aluminum Shell 650005 24” Aluminum Heat Sink Plate 650006 6x1Watt LED-DualStrip 650011 .05Watt Lunar LED 650006 Independent LED Reflector 650007 24” Acrylic Lens 650015 Dimmable Circuit Board 650009...
  • Page 7 Description Item Code SingleStrip/DualStrip Bracket 640001 Sliding Extension Rods 640006 Side Cap (Rt)-Dial Side 650001 Dimmable Dials 650002 36” Aluminum Shell 650007 36” Aluminum Heat Sink Plate 650008 6x1Watt LED-DualStrip 650011 .05Watt Lunar LED 650006 Independent LED Reflector 650007 36” Acrylic Lens 650016 Dimmable Circuit Board 650009...
  • Page 8 Description Item Code SingleStrip/DualStrip Bracket 640001 Sliding Extension Rods 640006 Side Cap (Rt)-Dial Side 650001 Dimmable Dials 650002 48” Aluminum Shell 650009 48” Aluminum Heat Sink Plate 650010 6x1Watt LED-DualStrip 650011 .05Watt Lunar LED 650006 Independent LED Reflector 650007 48” Acrylic Lens 650017 Dimmable Circuit Board 650009...
  • Page 9 SkkyeLight LED series set the new standard for ultra-modern de- sign in high brightness LED green technology. Reward your mini Ecosystem with mesmerizing glitter lines while consuming a frac- tion of the energy cost and minimal carbon emissions into our en- vironment.
  • Page 10 Dimmable DualStrip Features:  1 Watt High Brightness LEDs  120 lumens per watt  2” Sliding Rods & Aluminum Casing  Individual Reflectors for uniform coverage  Passive Cooling – Silent Operation  Modern slim design  Pulse Width Modulation – Dimming ...
  • Page 11 SPECIFICATIONS— MODEL SIZE 6501 18"X3.5"X3" LIGHT SPECIFICATIONS DAYLIGHT ACTINIC LUNAR 9X1W 9X1W 4X0.5W LED WATTS 456nm 456nm COLOR CURRENT 0~350mA 0~350mA 60mA MODEL SIZE 6502 18"X3.5"X3" LIGHT SPECIFICATIONS DAYLIGHT ACTINIC LUNAR 9X1W 9X1W 4X0.5W LED WATTS COLOR 456nm 456nm 0~350mA 0~350mA 60mA CURRENT...
  • Page 12 SPECIFICATIONS— MODEL SIZE 6506 36"X3.5"X3" LIGHT SPECIFICATIONS DAYLIGHT ACTINIC LUNAR LED WATTS 18X1W 18X1W 4X0.5W 456nm 456nm COLOR 0~350mA 0~350mA 60mA CURRENT SPECIFICATIONS— MODEL SIZE 6506 48"X3.5"X3" LIGHT SPECIFICATIONS DAYLIGHT ACTINIC LUNAR 24X1W 24X1W 4X0.5W LED WATTS 456nm 456nm COLOR CURRENT 0~350mA 0~350mA...
  • Page 13 HANDLING PRECAUTION  Do not use cleaners that contain ammonia to clean the Dimmable DualStrip surface.  Always unplug light when performing any maintenance on Dimmable DualStrip. CHOOSING A LOCATION  Place Dimmable DualStrip in a ventilated area.  Use the integrated Sliding Extension Rods to adjust the length of DualStrip to place over Framed or Rimless Aquarium.
  • Page 14 SKYYELIGHT DIMMABLE DUALSTRIP ON FRAMED TANK  Slide out Extension Slide out Extension Rods of each end of the Rods of each end of Single Strip to fit the DualStrip to fit Framed Aquarium .(Fig.1) Framed Aquarium. (Fig.1) Fig 1 Place the Arm on the ...
  • Page 15 SKYYELIGHT SINGLESTRIP ON RIMLESS TANK Slide out Extension  Slide out Extension Rods of each end of Rods of each end of the DualStrip to fit the Single Strip to fit Rimless Aquarium. Rimless Aquarium (Fig.1) (Fig.1) Fig 1 Place the Arm on the outer edge of the Rim.
  • Page 16 POWERING UP SKKYELIGHT DIMMABLE DUALSTRIP Daylight & Actinic Drivers NOTE: Daylight/Actinic Drivers are identical. It is not specific to either Daylight or Actinic.  Dimmable DualStrip comes with Daylight & Actinic Drivers  Connect the female plug from the DualStrip fixture to the male plug from the Daylight/Actinic Driver.
  • Page 17 POWERCORD ORGANIZER Dimmable DualStrip comes with a pre-installed powercord or- ganizer from the DualStrip fixture to the male plugs.  For a clean appearance run the cords to the back of the aquarium.
  • Page 18 CUSTOMIZING WITH DIMMEABLE DUALSTRIP  Dimmable DualStrip has 2 Channel Dimming Daylight & Actinic  Each Dial controls the intensity of either the Daylight or Actinic  Customize the color spectrum and intensity by adjusting the Actinic & Daylight Dials ADDING MORE LIGHTS ...
  • Page 22 WARRANTY INFORMATION LIMITED 1 YEAR WARRANTY— DIMMABLE DUALSTRIP This DIMMABLE DUALSTRIP has a 1 YEAR limited warranty. The DIMMABLE DUALSTRIP warranted to the original pur- chaser against defective material and workmanship for 1 YEAR from the date of original purchase. This warranty is valid only under the following conditions: additions, modifications, or changes made to the product by the purchaser and not by the manufacturer shall void this warranty.
  • Page 23 PRODUCT INFORMATION MODEL # SERIAL NUMBER DATE OF PURCHASE Please keep your receipt in a safe place to ensure you have this in- formation.
  • Page 24 WWW.INNOVATIVE-MARINE.COM A Division of...
