Installation Guide
Quick

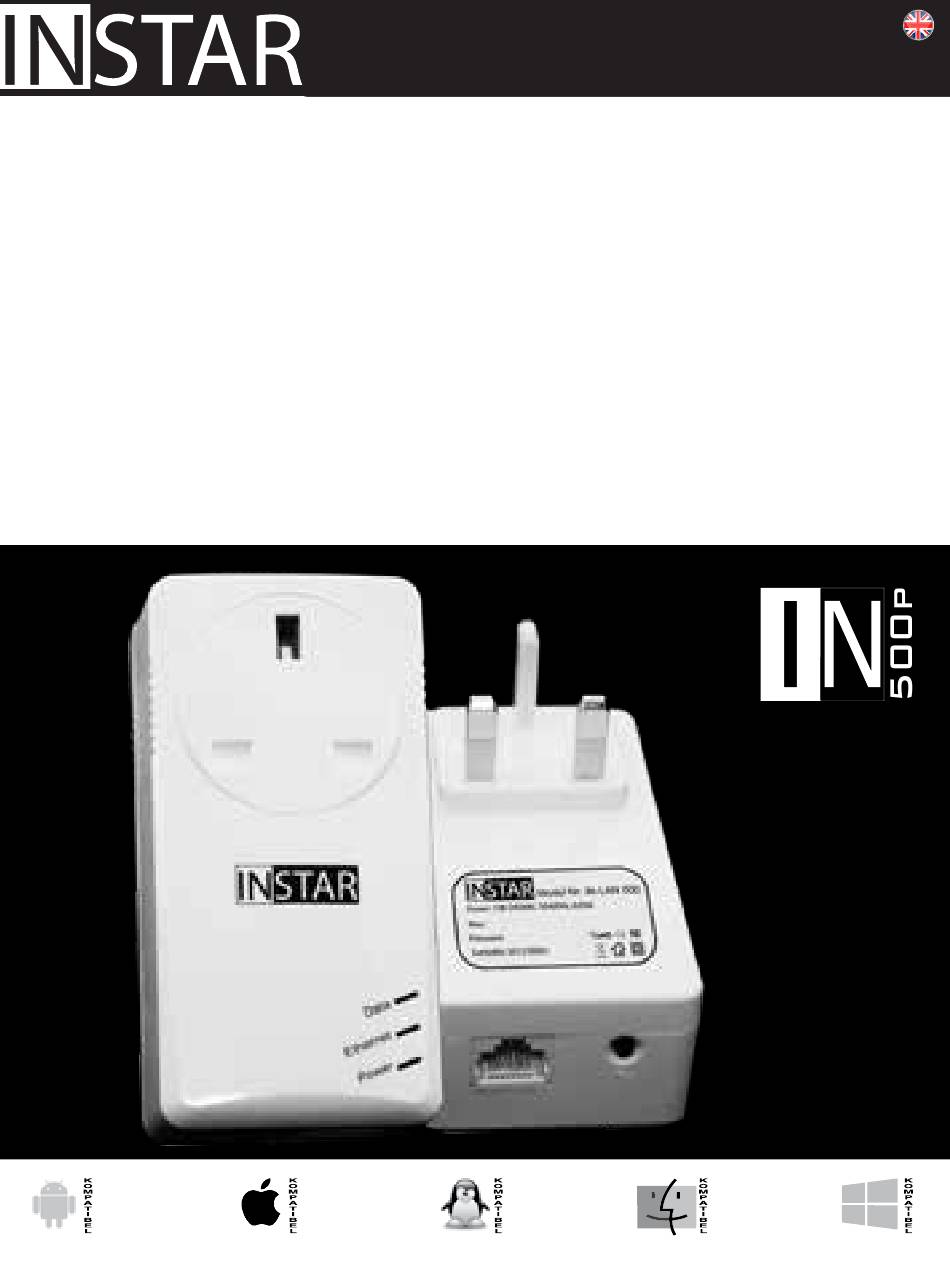

IN-LAN 500p
/ Supports up to 500 Mbps PHY rates over powerline
/ Effective data transfer rate 65Mbps (TCP) / 90Mbps (UDP)
/ 128-bit AES link encryption with key management
/ High performance and lower power Atheros QCA7420 chipset
/ Compatible with HomeplugAV Powerline devices (IEEE 1901 compliant)
LAN
Android
iPhone
LINUX
Mac OS
Windows
Advertisement
Related Manuals for Instar IN-LAN 500p
Summary of Contents for Instar IN-LAN 500p
- Page 1 Installation Guide Quick IN-LAN 500p / Supports up to 500 Mbps PHY rates over powerline / Effective data transfer rate 65Mbps (TCP) / 90Mbps (UDP) / 128-bit AES link encryption with key management / High performance and lower power Atheros QCA7420 chipset...
-
Page 3: Table Of Contents
BUILDING A PRIVATE NETWORK..........7 BANDWIDTH OPTIMIZATION.............9 TECHNICAL DATA................10 WARRANTY AND DISPOSAL............11 More information can be found in the PDF-User Manual that you can download from www.instar.de This Quick-Installation Guide was made exclusively for INSTAR customers. Your Manufacturer of Network and Security Equipment... -
Page 4: Safety Warnings 1
» Never install the device near explosive or flammable substances. » Don’t use the device for any other purpose that it isn’t made for. » INSTAR does not give any warranty if you use any third party firmware. CE-Conformity This device suites the basic requirements of the European regulations for electro-... -
Page 5: Installation
2 INSTALLATION Data Indicator Indicates an established connection to another IN-LAN adaptor / Flashes when data is being transmitted Ethernet Indicator Indicates an established Ethernet connection / Flashes when data is being transmitted Power Indicator Steady when adaptor is ready for operation / Flashes when in stand-by mode Network Connector RJ45 connector for the provided LAN cable... - Page 6 State-of-the-art technology en- sures that the power and data networks do not interfere with each other. What does INSTAR IN-LAN® offer? IN-LAN offers a PLC transfer rate of up to 500Mbps (effective rate 65Mbps TCP...
-
Page 7: Basic Setup
Ethernet cable. Plug the second IN-LAN unit into an outlet - for example - close to your INSTAR camera and connect the camera to your network using the camera’s Ethernet cable. -
Page 8: Building A Public Network 4
Building a Public Network 4 How to secure the network traffic ? I. Press the pairing button for 5 seconds until the signal lights flash once. The Adapter is now ready to negotiate a pairing password with another adaptor. II. Press the pair button for 1 second, and then release it. The power LED should start to flash - signaling that it is waiting to be paired with another adaptor. -
Page 9: Building A Private Network
To manually setup your network under the Windows Operating System, you will need to install the Qualcomm Atheros control software PPU (Power Packet Utility) that can be dowloaded from the INSTAR homepage: http://www.instar.de/templates/IN-LAN.zip Please make sure to install the Microsoft .NET Framework 1.1 or 2.0 before you install the application: http://www.microsoft.com/en-us/download/details.aspx?id=19... - Page 10 After downloading the PPU software from our homepage: http://www.instar.de/templates/IN-LAN.zip Double-click the Installer.bat file and follow the installation wizard through the in- stallation process. On workstations running Microsoft Windows, the security con- figuration settings require the user to have administrator privileges to install the software.
-
Page 11: Bandwidth Optimization
Now open the “Privacy” Tab and provide a private network name for your IN-LAN. Click the button “Set All Devices” to reboot all devices in your IN-LAN network and sychronize the new network name. To re-open your network please click on the “Use Default(Public Network)” button then click on the “Set All Devices”... -
Page 12: Technical Data 7
Technical Data 7 Communication PLC Rate 500Mbps PHY Protocol IEEE 1901 and HomePlug AV 1.0 compliant, 802.3 10/100 Ethernet, 802.3u Fast Ethernet Data Rate (TCP/UDP) 65Mbps (TCP) / 90Mbps (UDP) Encryption 128 AES Modulation Schemes 4096/1024/256/64/16/8 - QAM, QPSK, BPSK and ROBO Modulation Band 2 - 68 MHz Support contention-free access, 4-level priority based, contention access, and multi segment bursting, Support VLAN... -
Page 13: Warranty And Disposal
INSTAR offers a 2-year warranty on its products. During this time you can send in your device for a free repair. This excludes devices with custom made firmware or any other software that has not been approved by INSTAR. The warranty is only valid for the original hardware parts of the device. - Page 14 INSTAR Quick Notes .........................................................................................................................................................................................................
