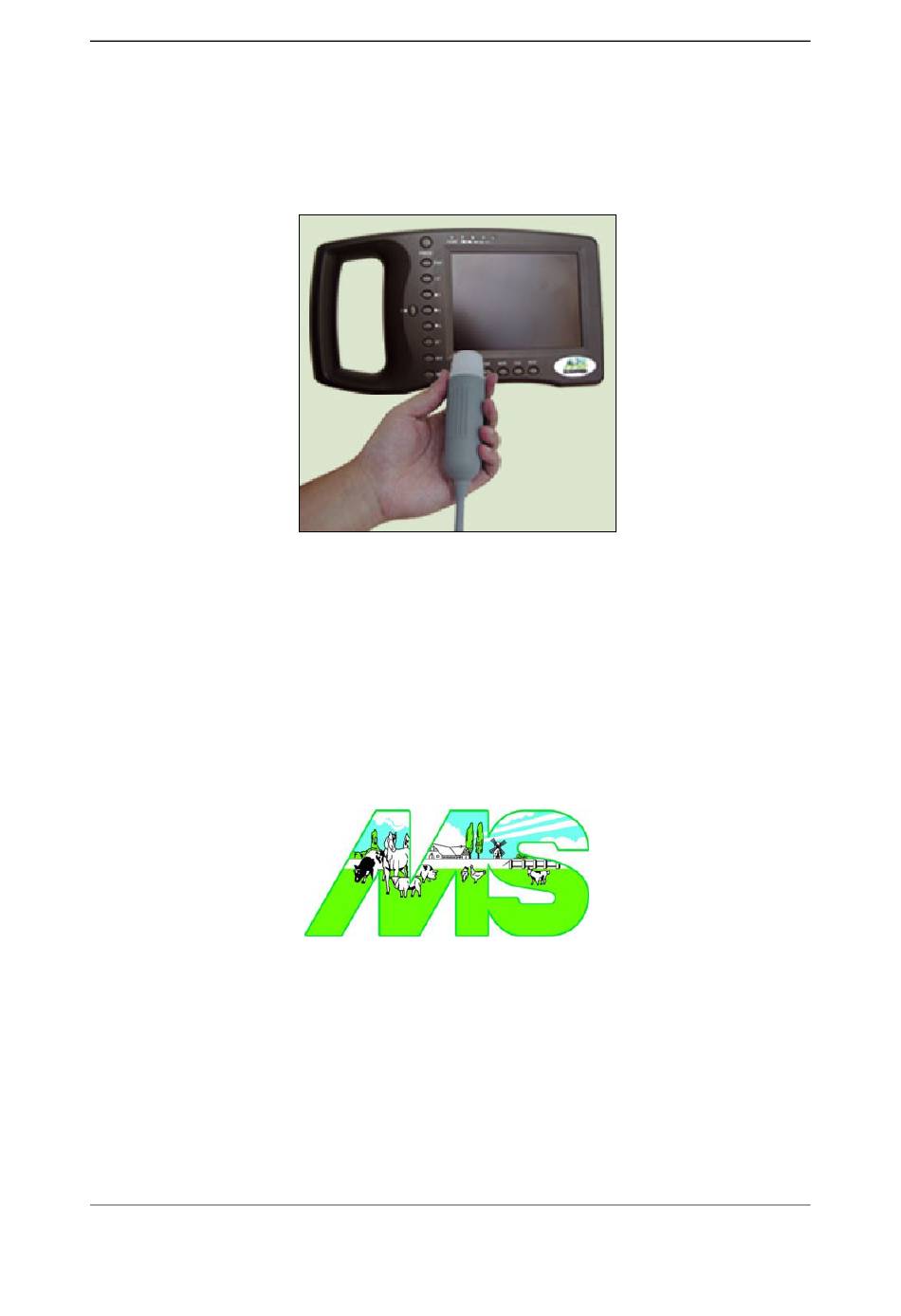

1609899 Multiscan
Schippers Bladel BV
Bleijenhoek 17
5531 BK Bladel (NL)
Tel: +31(0)497-339771 Tel: +32(0)14-672356
Fax: +31(0)497-382096
1
1609899
Multiscan
Schippers Europe BV
Bleijenhoek 17
5531 BK Bladel
Phone: +31 (0) 497 339774
Fax: +31 (0) 497 339779
Schippers BVBA
Schippers GMBH
Grens 114
Kölnerstrasse 62
2370 Arendonk (B)
47647 Kerken (D)
Tel: +49(0)2833-92360
Fax:+32(0)14-672285
Fax:+49(0)2833-923611 Fax:+33(0)2.99.85.47.48
1-Nov-06
Schippers France SARL
La Martinière – BP10
35310 Bréal sous Montfort (F)
Tel: +33(0)2.99.85.47.47

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Multiscan 1609899 and is the answer not in the manual?

Questions and answers

Summary of Contents for Schippers Europe Multiscan 1609899

  • Page 1 1609899 Multiscan 1-Nov-06 1609899 Multiscan Schippers Europe BV Bleijenhoek 17 5531 BK Bladel Phone: +31 (0) 497 339774 Fax: +31 (0) 497 339779 Schippers Bladel BV Schippers BVBA Schippers GMBH Schippers France SARL Bleijenhoek 17 Grens 114 Kölnerstrasse 62 La Martinière – BP10...
  • Page 2: Table Of Contents

    1609899 Multiscan 1-Nov-06 Contents Chapter 1 Overview..................3 1.1 Features ....................... 3 1.2 Application Range ..................3 1.3 Manufacturing Standards................3 Chapter 2 System Introduction ............... 4 2.1 Outline ......................4 2.2 Technical Specification ................. 5 2.3 Schematic Diagram ..................6 2.4 Basic Principles ....................
  • Page 3: Chapter 1 Overview

    1609899 Multiscan 1-Nov-06 Chapter 1 Overview 1.1 Features The Multiscan uses the latest micro computer technology: digital scanning conversion (DSC), variable aperture, high dynamics, low noise, wide band receiver, log compression, dynamic filtering and border imaging. These features produce a clear, stable image with high resolution. The main features of the Multiscan are: •...
  • Page 4: Chapter 2 System Introduction

    1609899 Multiscan 1-Nov-06 Chapter 2 System Introduction 2.1 Outline Figure 2-1. Front Panel Figure 2-2. Side View Figure 2-3. Bottom Surface Schippers Bladel BV Schippers BVBA Schippers GMBH Schippers France SARL Bleijenhoek 17 Grens 114 Kölnerstrasse 62 La Martinière – BP10 5531 BK Bladel (NL) 2370 Arendonk (B) 47647 Kerken (D)
  • Page 5: Technical Specification

    1609899 Multiscan 1-Nov-06 Figure 2-4. Back Cover 2.2 Technical Specification Model Multiscan Standard probe 5.0MHz mechanical sector scanner Scanning depth 192 mm Detection depth ≥140 mm Resolution Lateral ≤3 mm(depth≤80mm) ≤4 mm(80mm<depth≤130mm) Axial ≤2 mm(depth≤80mm) Geometric position precision (%) Horizontal ≤20 Vertical ≤10...
  • Page 6: Schematic Diagram

    1609899 Multiscan 1-Nov-06 2.3 Schematic Diagram Figure 2-1. Schematic Circuit Diagram 2.4 Basic Principles The principles of B mode scanning are as follows: human/animal organs have differing densities and ultrasound speeds, i.e. their level of acoustic impedance varies (= average density x acoustic speed). The piezoelectric crystal (transducer) is triggered by an electrical pulse to produce an ultrasound wave of definite frequency.
  • Page 7: Chapter 3 Installation

    1609899 Multiscan 1-Nov-06 Chapter 3 Installation 3.1 Environmental Requirements Temperature: +5°C~+40°C Humidity: <80% Atmospheric pressure: 80kpa~106kpa Power supply: AC 220V±22V, 50Hz/60Hz or AC 110V±11V, 60Hz; Display unit: DC 14 V±0.5V Keep the Multiscan away from powerful electrical fields, magnetic fields and high voltage equipment.
  • Page 8 1609899 Multiscan 1-Nov-06 Figure 3-1. Attaching/Detaching Probe to Holder • Attaching/detaching the probe to the holder: The Multiscan has a holder to safely secure the probe. To attach, press the probe against the holder until it snaps into place. To detach, push the probe upwards and take it out (See figure 3-1) •...
  • Page 9: Charging The Battery Pack

    1609899 Multiscan 1-Nov-06 3.4 Charging the Battery Pack There are two ways to charge the battery pack (1 ) Charging via Display Unit Make sure that the battery pack is in the display unit. Connect the power cord of the “Input” port in the AC-adaptor to the power outlet, and then connect the power cord of the “Output DC14V/3A”...
  • Page 10: Chapter 4 Operating Panel + Mouse

    1609899 Multiscan 1-Nov-06 Chapter 4 Operating Panel + Mouse 4.1 Operating Panel Figure 4-1. Operating Panel Key functions The Multiscan has 2 operating modes: 1) Real-time scanning: selection of scanning modes (B and/or M modes). 2) Freeze frame: for measurements and data input Numeric Characters + Directional Keys Numeric characters are used for inputting data: ID number, age etc.
  • Page 11 1609899 Multiscan 1-Nov-06 RESET Device Reset Key Press RESET to restart the Multiscan in normal mode if it malfunctions and/or becomes “DEAD” (unable to start by pressing any other key). ZOOM/1 Image Magnification The Multiscan offers 4 levels of image magnification: ×1.0, ×1.2, ×1.5 and ×...
  • Page 12 1609899 Multiscan 1-Nov-06 Veterinary configurations: SWINE: to calculate G. A. of swine In accordance with heart length EQUINE: to calculate G. A. of equine in accordance with gestational sac diameter; BOVINE: to calculate G. A. of bovine in accordance with body length; SHEEP: to calculate G.
  • Page 13: Mouse

    1609899 Multiscan 1-Nov-06 M/0 Activate Single M Mode Press M/0. A single M mode image will be displayed on the screen (simplified as “single M”). Figure 4-4. Freeze Frames of 4 Display Modes 4.2 Mouse A three-key mouse makes operating the scanner even easier - use the track ball of the mouse, and the left, middle and right keys to perform the following functions: •...
  • Page 14: Chapter 5 Operating Instructions

    1609899 Multiscan 1-Nov-06 Chapter 5 Operating Instructions 5.1 Power On Turn the Multiscan on by pressing the power switch on the right side of the display unit and the “power” indicator will light up. Pressing any key (except RESET) will enter scanning mode, after the startup logo has appeared. Adjust brightness, contrast and gain controls on the side of the mainframe to achieve the best visual display.
  • Page 15: Measurement

    1609899 Multiscan 1-Nov-06 5.3 Measurement ● Heart rate measurement (for “B/M” or “M” mode only) In “B+M” or “M” mode, measure the distance between two wave crests of the heart beat. The result will appear on the screen; EF indicates slope (mm/s), HR indicates heart rate, T indicates time (ms).
  • Page 16: Photo Shots + Image Printing

    1609899 Multiscan 1-Nov-06 5.5 Photo Shots + Image Printing • Photo Shots Freeze frame image, then use Polaroid camera or digital camera to take photos. • Image Printing Connect “video out” of Multiscan to the video input on printer (connection cable sold separately).
  • Page 17: Chapter 6 Routine Maintenance

    1609899 Multiscan 1-Nov-06 Chapter 6 Routine Maintenance 6.1 Power Supply • Check the AC-adaptor power supply regularly. Do not use if voltage exceeds the recommended rating (AC220V±22V, 50Hz). • Examine the AC-adaptor cable and probe cable regularly. Replace immediately if defective in any way. 6.2 Display Unit •...
  • Page 18: Battery Information

    1609899 Multiscan 1-Nov-06 6.4 Battery Information • The Multiscan is powered by a rechargeable polymer Li-ion battery. • Please note, a new battery only reaches its optimum performance after 2 or 3 complete charge and discharge cycles. • The battery can be charged and discharged hundreds of times but it will eventually wear out.
  • Page 19: Chapter 7 Transportation + Storage

    1609899 Multiscan 1-Nov-06 Chapter 7 Transportation + Storage 7.1 Environmental Requirements for Transportation + Storage Environmental temperature: - 5˚C ~+55°C Relative humidity: <80% Atmospheric pressure: 80kpa~106kpa 7.2 Transportation The Multiscan packaging is marked in accordance with the requirements of GB191 ”Packing, Storage and Transportation Marks”. The packing box contains shockproof protection for the Multiscan.
  • Page 20: Chapter 8 Troubleshooting

    1609899 Multiscan 1-Nov-06 Chapter 8 Troubleshooting 8.1 Examination • Ensure the power supply is working normally. Make sure the power cable has been connected to the display unit correctly and inserted into the electric socket. • Make sure the probe has been connected to the Multiscan correctly. 8.2 Malfunction Solution Malfunction symptom Malfunction solution...
