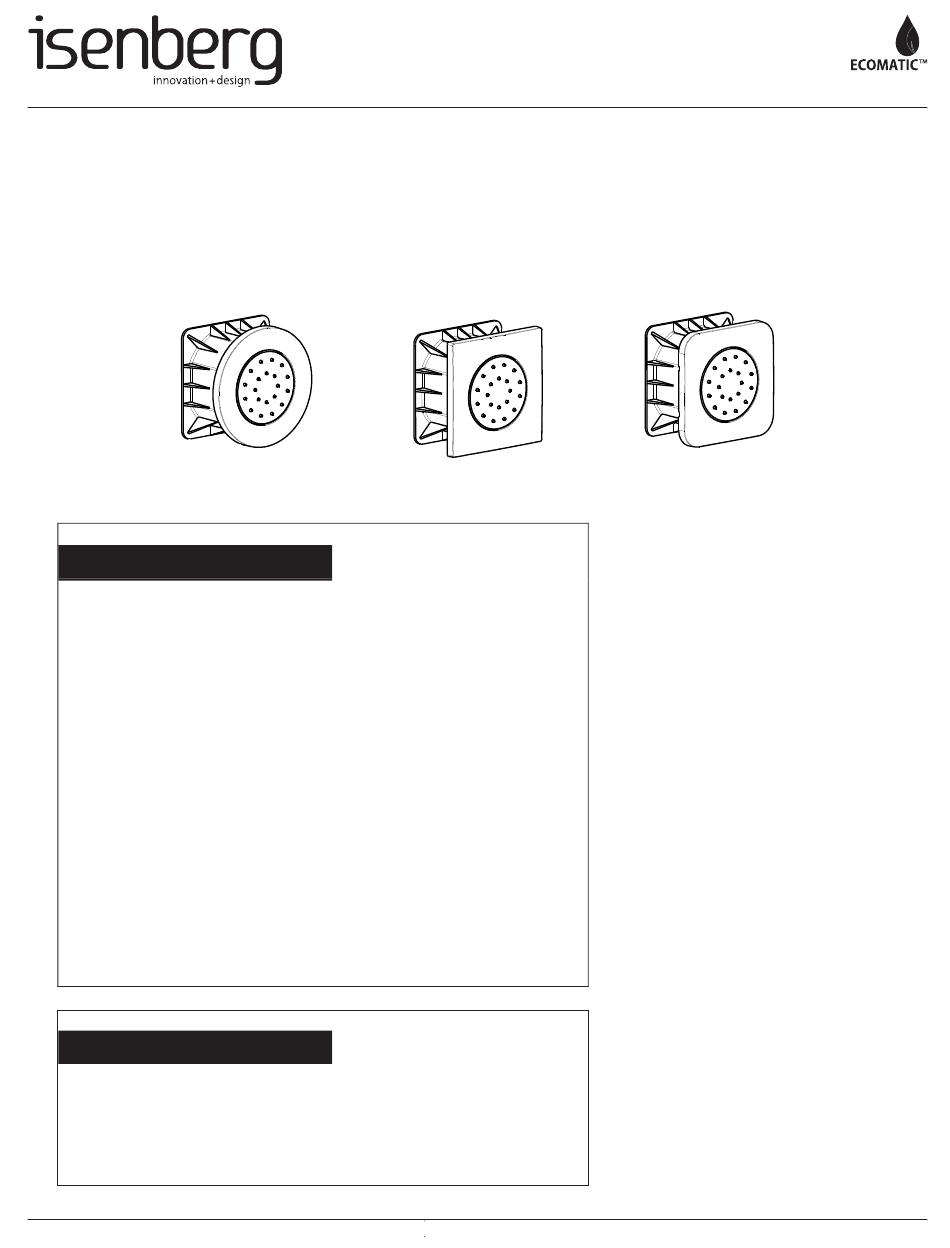

Installation Manual For Body Jets
NOTICE TO HOMEOWNER
We recommend that this product is installed by a qualified
•
professional plumber.
•
Please check this product immediately to ensure that it has
not been damaged and is complete. Before installation, please
make sure this product is the correct model and you have all
the parts required for installation and use.
•
Please flush the water system to ensure that no metal swarf,
solder, and other impurities can enter the product.
• Turn off water supply before commencing work.
Please read these instructions carefully and retain for future
•
reference.
BEFORE YOU BEGIN
•
You must observe all local plumbing laws and codes.
•
Do not install this valve if it does not meet local plumbing codes.
•
Shut off the main water supply.
Ver. 2.53
www.isenbergfaucets.com
100.6410 / 160.6410 / 196.6410
Made For Responsible Luxury
Advertisement
Table of Contents
Summary of Contents for Isenberg Ecomatic 100.6410
- Page 1 Made For Responsible Luxury Installation Manual For Body Jets 100.6410 / 160.6410 / 196.6410 NOTICE TO HOMEOWNER We recommend that this product is installed by a qualified • professional plumber. • Please check this product immediately to ensure that it has not been damaged and is complete. Before installation, please make sure this product is the correct model and you have all the parts required for installation and use. • Please flush the water system to ensure that no metal swarf, solder, and other impurities can enter the product. • Turn off water supply before commencing work. Please read these instructions carefully and retain for future • reference. BEFORE YOU BEGIN • You must observe all local plumbing laws and codes. • Do not install this valve if it does not meet local plumbing codes. • Shut off the main water supply. Ver. 2.53 www.isenbergfaucets.com...
- Page 2 Made For Responsible Luxury Installation Manual For Body Jets 100.6410 / 160.6410 / 196.6410 TABLE OF CONTENTS Operating Specifications . . . . . . . • • Cut-Out Dimensions / Rough In Spec . . . . . • Installation Instructions . . . . . . . www.isenbergfaucets.com...
- Page 3 Made For Responsible Luxury OPERATING SPECIFICATIONS WATER TEMPERATURE WATER PRESSURE This product is to be used with water at This product is to be used with a water pressure range of 15 PSI to 72 PSI ONLY a temperature range of 40˚F - 120˚F ONLY! If water pressure is greater than 72 PSI install a pressure reducing valve (PRV) www.isenbergfaucets.com...
- Page 4 Made For Responsible Luxury CUT OUT DIMENSIONS ROUGH IN SPEC The 6410 series body jets have a valve casing. The cut-out The 6410 series body jets have a rough in spec which dimensions for this purpose can be seen below can be seen below for easy installation. 4.37” / 111mm - 2.32” / 59mm MAX - 3.11” / 79mm www.isenbergfaucets.com...
- Page 5 Made For Responsible Luxury INSTALLATION INSTRUCTIONS The body jet will require a 1/2” NPT - Female connection in the wall. Install at appropriate depth as per rough in speci cations. Ensure valve is level when screwed into the wall. Insert and tighten 1/2” male connection. Secure valve casing to with appropri- ate screws provided.
- Page 6 Made For Responsible Luxury INSTALLATION INSTRUCTIONS Install protective plastic cover. Max - Min Install tile and cut extra plastic to ensure that valve casing is ush with tile. www.isenbergfaucets.com...
- Page 7 Made For Responsible Luxury INSTALLATION INSTRUCTIONS Install Brass extension piece. Install body jet cartridge using provided screws. Ensure the cartridge is installed in the correct orientation - look for the “TOP” symbol. www.isenbergfaucets.com...
- Page 8 Made For Responsible Luxury INSTALLATION INSTRUCTIONS Install trim plate. The trim face plate can be removed using a screw driver as shown on the left diagram. www.isenbergfaucets.com...
