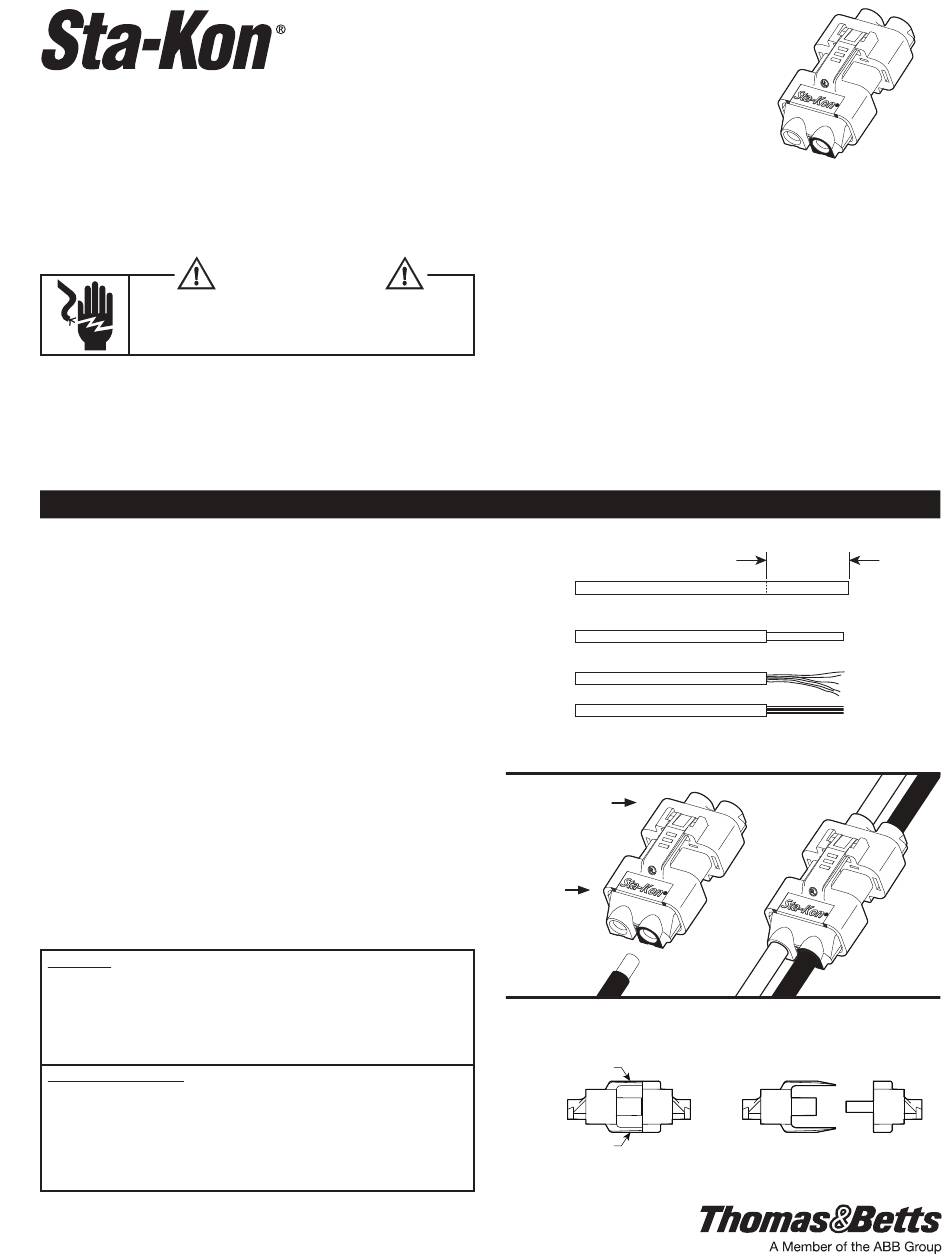

Thomas & Betts Sta-Kon LD2P Push-in Wire Series Installation Instructions

RISK OF SHOCK, DISCONNECT
POWER BEFORE INSTALLATION.
NOTICE:
THIS PRODUCT IS TO BE INSTALLED
BY A QUALIFIED ELECTRICIAN IN ACCORDANCE
WITH NATIONAL ELECTRICAL CODE OR CANADIAN
ELECTRICAL CODE REQUIREMENTS.

INSTALLATION

1. Disconnect power before installing.
2. Verify the voltage and current ratings of the luminaire are
equal to or less than the disconnect (4A, 600v)
3. Strip wire insulation to 3/8" minimum, 13/32" for 12 AWG
(Figure 1).
4. If stranded wire, straighten and uniformly group (Figure 1).
5. Insert the wires completely into the wire entries marked
"B" for black or hot lead, and "W" for white or neutral lead.
Slightly twisting stranded wire while inserting helps keep
strands together.
6. Insert black ballast lead (18 AWG solid) into the black
marked wire entry (also marked "B") and ballast neutral lead
(18 AWG solid) into the other wire entry (marked "W"), on
the ballast side of the disconnect (Figure 2).
7. Insert supply line and neutral leads into the line side wire
(entries marked "B" and "W") of the disconnect making sure
the wire leads are in-line and match the ballast leads on the
ballast side.
8. Energize the circuit and confirm the luminaire is functional.
WARRANTY: Thomas & Betts sells this product with the understanding that the user
will perform all necessary tests to determine the suitability of this product for the user's
intended application. Thomas & Betts warrants that this product will be free from defects
in materials and workmanship for the period stated on the enclosed warranty card. Upon
prompt notification of any warranted defect, Thomas & Betts will, at its option, repair or
replace the defective product. Misuse, misapplication or modification of Thomas & Betts
products immediately voids all warranties.
Limitations and Exclusions: THE ABOVE WARRANTY IS THE SOLE WARRANTY
CONCERNING THIS PRODUCT, AND IS IN LIEU OF ALL OTHER WARRANTIES
EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO ANY IMPLIED
WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE,
WHICH ARE SPECIFICALLY DISCLAIMED. LIABILITY FOR BREACH OF THE
ABOVE WARRANTY IS LIMITED TO COST OF REPAIR OR REPLACEMENT OF THE
PRODUCT, AND UNDER NO CIRCUMSTANCES WILL THOMAS & BETTS BE LIABLE
FOR ANY INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES.
© 2013 Thomas & Betts. All Rights Reserved.
Memphis, Tennessee • www.tnb.com
TA04254 C page 1 of 2
INSTALLATION INSTRUCTIONS
for Fluorescent Luminaire Disconnect
LD2P and LD2WP Push-in Wire Series
(catalog numbers may have alpha and/or numeric suffixes)

WARNING

ONE-TIME USE ONLY — DO NOT REUSE
• ELECTRICAL RATING: 4A, 600V
• TEMPERATURE RATING: 105°C
• WIRE RANGE:
18-12 SOLID COPPER
14-12 STRANDED COPPER (19 Strands or less)
LIMITED NUMBER OF CURRENT
INTERRUPTING OPERATIONS
TO BE SOLD ONLY WITH INSTALLATION
INSTRUCTIONS
WIRES
SOLID
STRANDED
Figure 1
LINE SIDE
• 18-12 AWG Solid
• 14-12 AWG Stranded
(19 strands or less)
BALLAST SIDE
• 18 AWG Solid
BLACK
BALLAST
Figure 2
LEAD
To separate the disconnect, squeeze the top and bottom latch
with your fingers and then pull the two halves apart.
TOP LATCH
BOTTOM LATCH
CONNECTED
3/8" or 13/32"
Strip Length
STRAIGHTEN
STRANDS
BALLAST SIDE LINE SIDE
DISCONNECTED
