Temperature Sensor
Titanium
Alloy Probe
Protective
Cap

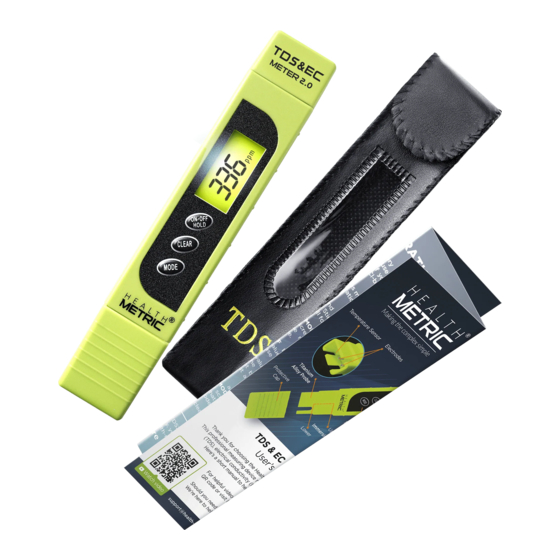

Thank you for choosing the Health Metric 3-in-1 TDS & EC Meter 2.0.
This professional measuring device makes testing for total dissolved solids
(TDS), electrical conductivity (EC), and temperature super easy.
Here's a short manual to help you get started right away.
Electrodes
Immersion Lines
Lower
TDS & EC METER 2.0
User's Manual
For helpful video instructions and FAQs, simply scan the
QR code or visit health-metric.com/TDS2.
Should you need any assistance, feel free to get in touch.
We're here to help!
support@health-metric.com
LCD Screen
ON/OFF
Clear
Mode Selector
Upper
Backlit
3V Button Cell
(CR2032)
TDS range: 0 - 9999 ppm
EC range: 0 - 9999 μs/cm
Fahrenheit: 32 - 176 °F
Celsius: 1 - 80 °C.
Accuracy: ± 2%
___________________________
Battery: 1 x 3V Button Cell CR2032
Conversion factor: NaCl
www.health-metric.com
Advertisement
Table of Contents
Related Manuals for Health Metric TDS & EC METER 2.0
Summary of Contents for Health Metric TDS & EC METER 2.0
- Page 1 Conversion factor: NaCl TDS & EC METER 2.0 User’s Manual Thank you for choosing the Health Metric 3-in-1 TDS & EC Meter 2.0. This professional measuring device makes testing for total dissolved solids (TDS), electrical conductivity (EC), and temperature super easy.
-
Page 2: After Use
4 MODES TO CHOOSE FROM Press the MODE button to switch between the 4 display modes shown below. MODE 1 MODE 2 MODE 3 MODE 4 EC μs/cm TDS ppm Celsius Fahrenheit INSTRUCTIONS FOR USE 1. REMOVE 4. WAIT Remove the protective Wait a couple of cap and press the seconds for the... - Page 3 TDS meters can be used for estimating salt levels (NaCl). You can simply multiply the TDS reading by 0.9 to obtain a ppm salt level. Note! A TDS meter isn’t designed for testing water hardness. You can find purpose-made Health Metric Water Hardness Test Strips on Amazon: bit.ly/TESTWHT STORAGE AND MAINTENANCE Store in a cool dry place away from direct sunlight.
- Page 4 CALIBRATION INSTRUCTIONS Calibration Tips Your TDS meter is factory calibrated (at 342 PPM), so you can use it straight ● TDS meters measure EC and convert out of the box. However, if you wish to it into TDS. Small fluctuations in EC re-calibrate it, use a NaCl-based TDS can cause small variations in TDS, calibration solution.
Need help?
Do you have a question about the TDS & EC METER 2.0 and is the answer not in the manual?
Questions and answers
Does this measure PH level?
No, the Health Metric TDS & EC METER 2.0 does not measure pH level.
This answer is automatically generated
what does this do?
The Health Metric TDS & EC Meter 2.0 measures total dissolved solids (TDS), electrical conductivity (EC), and temperature in liquids. It provides readings in parts per million (ppm) for TDS, microsiemens per centimeter (μs/cm) for EC, and temperature in both Celsius and Fahrenheit. It includes features like automatic temperature compensation (ATC), a backlit LCD screen, and multiple measurement modes.
This answer is automatically generated
Where I can find the reference values?
