Summary of Contents for Ikan BVS-100

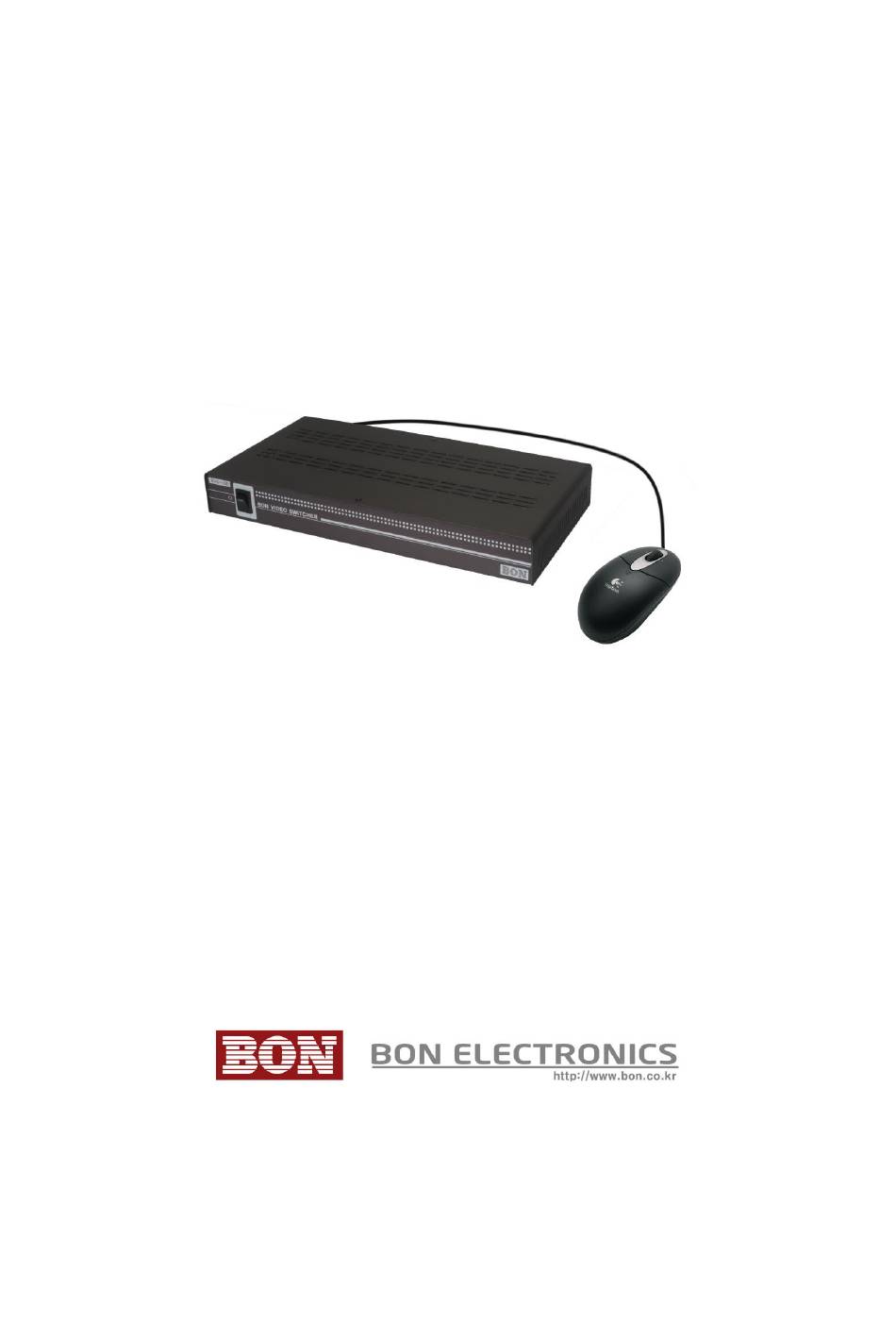

- Page 1 Bon Video Switcher BVS-100 User’s Guide...
-
Page 2: Table Of Contents
Contents SAFETY INSTRUCTIONS......................3 APPEARANCE..........................4 PREVIEW SCREEN........................5 MENU............................6 Warranty Information........................12 Probable Modification of Product.....................12... -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS • Rough handling of product may cause physical damage or malfunction. • Never insert anything metallic into the product openings. Doing so may create the danger of electric shock. • To avoid electric shock, never touch the inside of the product. Only a qualified should open the product case. -
Page 4: Appearance
APPEARANCE FRONT REAR 1) Input ports for HDMI and SDI. 2) Audio output. 3) Program output ports. HDMI and/or SDI can be used. 4) Preview monitor port. Connect a general LCD monitor with this HDMI port. 5) XLR Audio input. 6) Serial update port. -
Page 5: Preview Screen
PREVIEW SCREEN Preview screen is a quad-split screen that displays the current broadcasting program with a red rectangle. Changing the Program To change the current program, double click on one of the four screens. Status Display You can see the status at the bottom such as volume level and channel selection. To adjust such as volume level, click on the [+] or [-]. -
Page 6: Menu
MENU OUTPUT VIDEO FORMAT You can select various output formats on the list. * 1920 x 1080 60i or 59.94i is usual selection. REFERENCE SOURCE This is for SDI reference source for synchronization of an SDI and Black Burst signal for professionals. - Page 7 INPUT User can select 4 channels from 5 input ports as below. 2 HDMI + 2 SDI (Input port number 1, 2, 3, 4 are shown on preview) 1 HDMI + 3 SDI (Input port number 1, 3, 4, 5 are shown on preview) * The position of the screen is cannot be switched between each other.
- Page 8 AUDIO Each audio input level can be adjusted by user in the range of -38db to +24db. To adjust master audio level, adjust PGM output level. EFFECT/MIXER Effect Type Transition effect when switching between screens. For no effect, select 'Cut'. Effect Speed The transision speed is selectable from slow to fast.
- Page 9 Luma Setting To overlay a PC screen such as Microsoft PowerPoint graphics, set luma key here. Luma Key Input Select the input channel to use as a luma key. Threshold Level Set the luminance level in the middle to filter. Upper Value &...
- Page 10 FUNCTION KEYS User can select a preferred function for key when a keypad is used. For a mouse, user /, *, Del should click on the function on the status box at the bottom of the screen. KEYPAD KEY ASSIGNMENT Menu Movement ←,→,↑,↓...
- Page 11 RECOMMENDED COMPATIBLE KEYPADS Sungwoo Wireless Keypad Cubeternet Keypad RECOMMENDED COMPATIBLE MICE Logitech B100 Microsoft Compact Optical Mouse 500...
-
Page 12: Warranty Information
Warranty Information Free Service If the product needs to be repaired in 12 months from the purchase. Exceptions • damage caused by accident, abuse, misuse, water, flood, fire, or other acts of nature or external causes • damage caused by service performed by anyone who is not an authorized service provider •... - Page 13 Corporate Headquarters Tresebelle-Sky 2F, 1479 Gayang-2, Gangseo-gu, Seoul, South Korea Research / Service Center Vision Tower 7F, 1481 Gayang-2, Gangseo-gu, Seoul, South Korea Telephone +82 2 2659 0333 +82 2 2659 8133 http://www.bon-electronics.com http://www.bon.co.kr Email salesbon@bon.co.kr...
