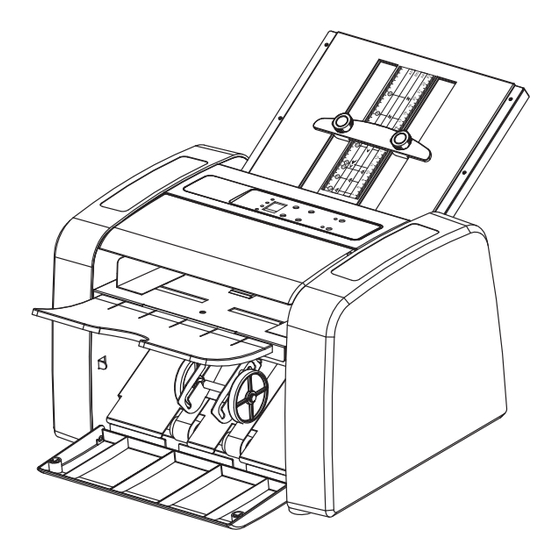

UNITED F100 Operator's Manual

Tabletop document folder
Hide thumbs Also See for F100:

Advertisement

Table of Contents

F100
Tabletop Document Folder
10/2018
OPERATOR MANUAL
FIRST EDITION

Advertisement

Table of Contents
loading

Related Manuals for UNITED F100

Summary of Contents for UNITED F100

  • Page 1 F100 Tabletop Document Folder OPERATOR MANUAL FIRST EDITION 10/2018...
  • Page 2 Single Fold Letter Fold Z-fold Double Fold Specifications  11" & 14" Paper size ： Paper weight 60g/m to 90g/m ： Some recycled paper and coated paper may not fold properly. Load capacity Maximum up to 200 sheets (20 lb copy paper) ：...

  • Page 3: Important Safety Instructions

    Important Safety Instructions To ensure your safety in using this product, please carefully read this product’s instruction manual before using, and place the instruction manual in a easily accessible location. To prevent causing life and property damage to users and others, this manual uses the following warning and caution icons to warn about dangerous operations and usage.
  • Page 4 Description Folding position adjustment stop Control panel Folding position ruler Safety cover First fold tray Paper guide Feed table Support feed table Paper ejector roller Feed roller Collections tray Paper stacking table Paper separator block (separation pad) Rear View First fold tray Second fold tray Folding position ruler Folding position...
  • Page 5 Setup ① Remove the packing material that protects the machine. Please keep the box and packaging material for transportation in case of repair or maintenance. Contents Machine body First fold tray Second fold tray Support feed table Power cable L-shaped hexagonal wrench ③...
  • Page 6 Fold Tray Installation Align the fold tray notch with the pivot on the machine. (See diagram for details.) Notch Small notch ① First fold tray First fold tray ② Second fold tray Second Fold Tray Direction Second fold tray comes with a notch on both sides. 「Single Fold」...

  • Page 7: Setting Procedure

    Operating Instructions Switch on the Power Switch on the main power. Setting Procedure (1)Switch on the Power Fanning the Paper (2)Fanning the Paper To prevent overlapping feeds or mis- feeds,please make fan the paper (3)Set the Paper before folding. ① Pick up a stack of paper. (4)Set Folding Position ②...

  • Page 8: Set The Paper

    Operating Instructions Set the Paper ① Open the safety cover. Place the paper in the center of the feed tray. paper 【Move guide inwards】 【Release guide】 Push on the side of the guide To release, press tab and move guide outwards. towards the paper stack.
  • Page 9 Operating Instructions Set Folding Position Please use the following table for the corresponding folding position mark on the fold tray, and then move the folding position adjustment stop to the correct position on the ruler. Example：Legal paper into Letter Fold Move first tray stop position to B Move second tray stop position to J Fold Stop Adjustment...

  • Page 10: Speed Setting

    Operating Instructions Counter Setting Display panel Error Ｓｔｅｐ1 Display  Press BATCH/ENTER (Flashing) BATCH/ ENTER Pre-setting state SPEED BATCH/ ENTER ＋ － Ｓｔｅｐ2 COUNT COUNT Display Press the ADD or SUB  key to select ascending ＋ － (Flashing) count or descending COUNT COUNT count.

  • Page 11: Error Display

    Reason : Fold tray is not inserted properly or not - Plate1 Error present. Solution : Ensure the tray is in place. - Plate2 Error *If error message keeps appearing even after all the component are in place, please contact United by visiting www.unitedofficenow.com.
  • Page 12 Separator pressure adjustment and roller cleaning Paper Separator Pressure Adjustment When multiple sheets of paper are drawn in together or when the feed roller is idling and not feeding paper normally, adjust the paper separation pressure to the optimal feed state. Move to left notch if multiple sheets are feeding in Move to right notch if sheets are not feeding ※Take off feed roller shaft before adjusting pressure.( refer to page 10 )

  • Page 13: Replacement Supplies

    Replacement Supplies Feed roller Paper separator block (separation pad) Replacing the Feed Roller The feed roller and the paper separator block are consumables. Please replace with new ones when the feed roller and the paper separator block have been worn down and no longer can feed paper normally. Please make sure to unplug power before replacing the feed roller.

  • Page 14: Simple Troubleshooting

     Moreover, paper with fold lines or one that is wrinkled can also not fold normally. ●If you cannot troubleshoot and solve the problem using the following table,  please remove the power supply and contact the United by visiting www.unitedofficenow.com. Problem...
