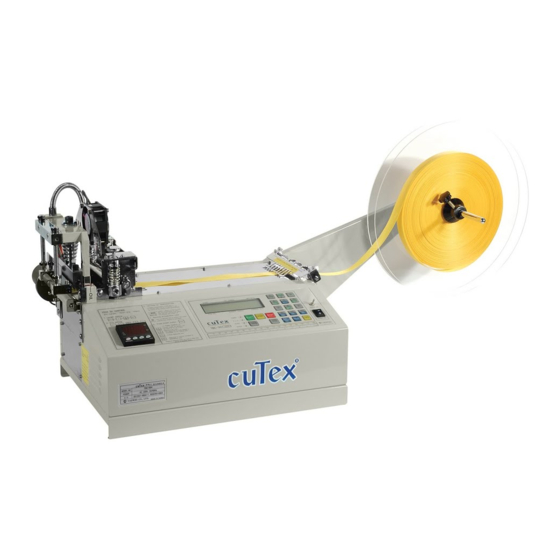

cuTex TBC-50H How To Operate

Automatic ribbon tape & small webbing cutter

Hide thumbs

Table Of Contents

cuTex

How to operate

Automatic Ribbon Tape

& Small Webbing Cutter

(Model No. : TBC-50H)

TAEWOO CO., LTD.

Table of Contents

Need help?

Do you have a question about the TBC-50H and is the answer not in the manual?

Questions and answers

Summary of Contents for cuTex TBC-50H

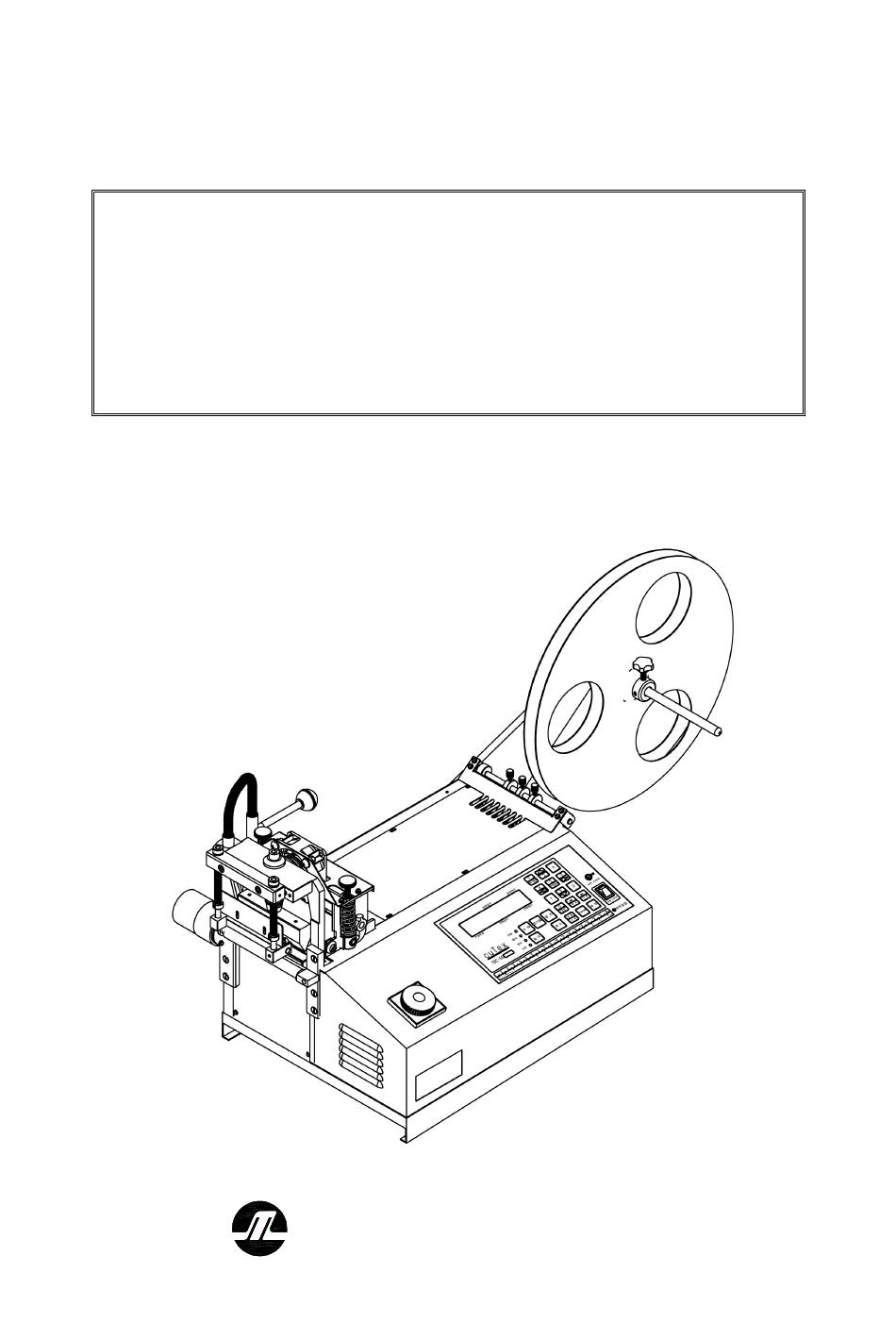

Page 1 How to operate Automatic Ribbon Tape & Small Webbing Cutter (Model No. : TBC-50H) TAEWOO CO., LTD.
Page 2 How to operate TBC-50H 1. An example (Cutting length : 70mm, Cutting quantity : 120 pcs) ▷ Turn on the POWER SW. ▷ Set the temperature.(It is normally used at 250° ∼350° C. About 5 minutes after turn-on & set it, it will be reached to set-temperature. (For more detail, refer to the appended "How to use temperature Controller DX4")
Page 3 * Speed up & down is possible in any time(operation or stop) and set-speed will not be changed even though you press RESET button or power off & on. ← : to correct rong data. E-mail : cutex@chollian.net http://www.taewoocutex.com - 2 -...
Page 4 FILE : Function for label cutting (applicable models : TBC-50S, TBC-50SH) : to prevent the cutted material from clinging to the knife blade. (This switch is installed to Model TBC-50H, TBC-50SH, TBC-50HX only.) 3. Specification Max. Range of Model Main Cutting...
Page 5 & lower knife plate and power off & adjust gap or pressure by 7mm-spanner. (Clockwise turn of spanner makes the lower knife plate up, anti-clockwise turn makes it down.) E-mail : cutex@chollian.net http://www.taewoocutex.com - 4 -...
Page 6 JUKYO-DONG, CHUNG-KU, SEOUL, KOREA TEL ＋82 2 2279-5205/5209, 2265-6904 FAX ＋82 2 2278-3124 FACTORY : A-302, 1025-1 DOGOK-RI, WABU-EUP, NAMYANGJOO, KYONGGI-DO, KOREA TEL ＋82 31 521-6904∼7, FAX ＋82 31 521-6908 E-mail : cutex@chollian.net www.taewoocutex.com E-mail : cutex@chollian.net http://www.taewoocutex.com - 5 -...
Page 7 Part Drawing A of TBC-50H (Feeding part) E-mail : cutex@chollian.net http://www.taewoocutex.com - 6 -...
Page 8 Part List A of TBC-50H (Feeding part) Part No. Description Part No. Description Clamping Bolt(M3×5L) A-23 Stepping Motor Upper Cap of Cooling Fan A-24 Clamping Bolt(M4×13L) Cooling Fan(Small) A-25 Ball Bearing(#696) Check Nut(M4) A-26 Guide-clamping Bracket Clamping Bolt(M4×10L) A-27 Stopper...
Page 9 Part Drawing B of TBC-50H (Cutting part) E-mail : cutex@chollian.net http://www.taewoocutex.com - 8 -...
Page 10 Part List B of TBC-50H (Cutting part) Part No. Description Part No. Description Clamping Bolt(M8×15L) B-38 Lower Knife Case Neck Washer of Hot-knife Bracket B-39 Ball Bearing(#6004) Upper Knife Case B-40 Snap Ring Heat Sensor B-41 Motor＋Reduction Gear Heater B-42...
Page 11 Part Drawing C of TBC-50H (Other parts) E-mail : cutex@chollian.net http://www.taewoocutex.com - 10 -...
Page 12 Part List C of TBC-50H (Other parts) Part No. Description Part No. Description Roll-hanger Wheel C-28 AC Connector(IN-PUT) Clamping Bolt of Holder C-29 AC Connector(OUT-PUT) Holder C-30 Clamping Bolt(M3×5L) Roll-hanger Shaft C-31 Left Cover Roll-hanger Shaft Washer C-32 Rubber Bushing...
Page 13 Operator feels electric current - Connect the earth cord(green) to any bolt of All models in touch of machine. backside of machine. ※ A/S center : TEL ＋82 31 521 6904∼7, FAX ＋82 31 521 6908 E-mail : cutex@chollian.net http://www.taewoocutex.com - 12 -...
