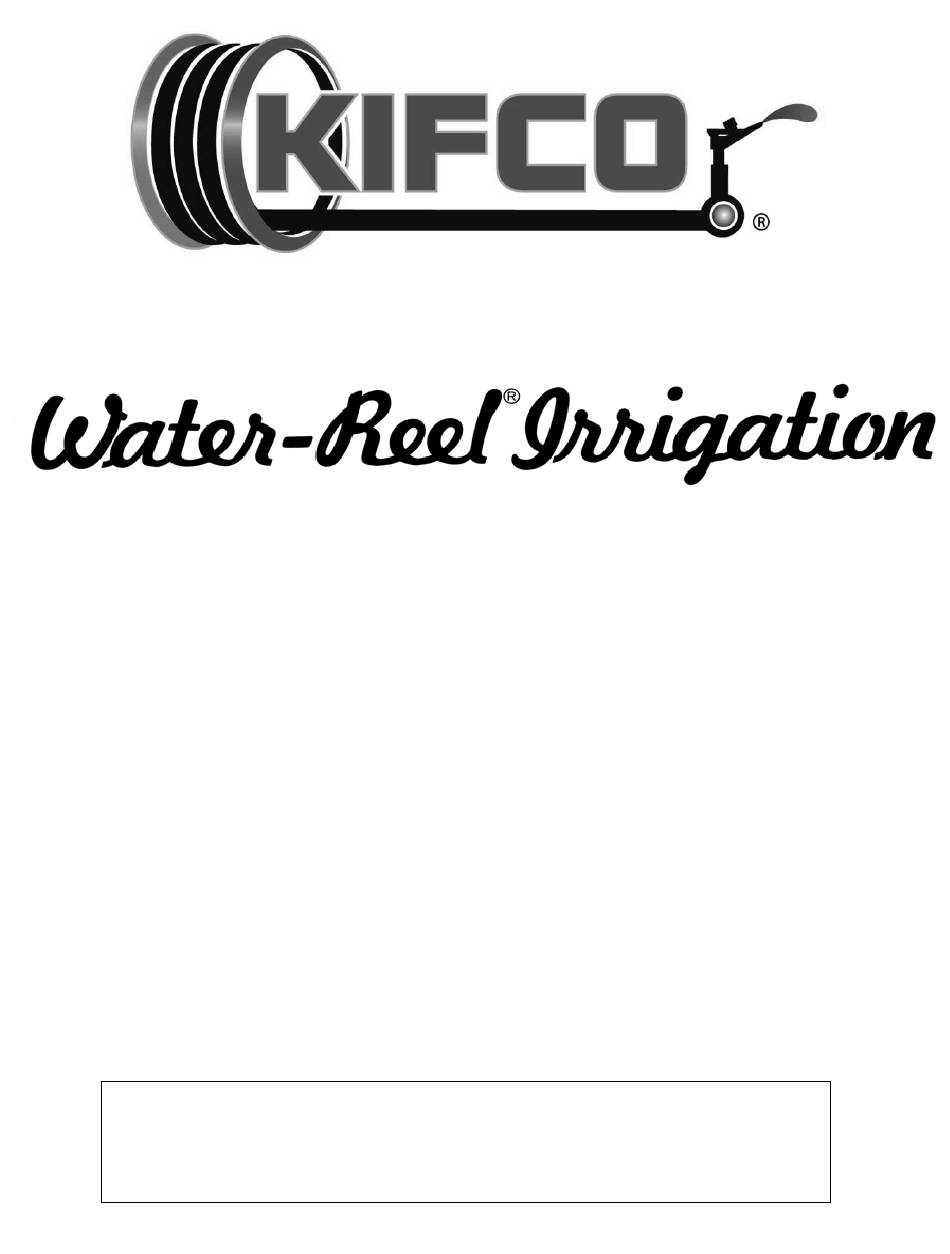

- Page 1 OPERATOR'S MANUAL Models B110G & E110G Copyright © October 2010, Kifco Inc. Kifco Inc. 700 S Schrader Ave., P.0. Box 290, Havana, IL 62644 Phone 309-543-4425 Fax 309-543-4945 www.kifco.com P/N – 193-0243-0...
-
Page 2: Table Of Contents
Electrical Information & Diagram for E110G......25 Winterizing and Storage Machine Winterization..............26 Machine Storage.................27 Machine Specifications Machine Specifications..............27 Adjustments Level-Wind Timing...............28-29 Spool Brake.................29 Drive Pinion Clearance E110G only..........30 Level Wind Chain................30 Warranty Warranty..................31 Dealer Checklist ..............32 Parts Book Available at www.kifco.com... -
Page 3: Introduction
If you have a problem or if you do not understand some feature of your Water-Reel, contact your Kifco dealer. Warranty is provided as part of the Kifco product support. Please see specific warranty statement in this manual. Measurements in this manual are in U.S. units unless otherwise stated. -
Page 4: Safety
Safety Owner’s Responsibilities The owner is responsible for the safe operation of this product. It is the owner's responsibility to: 1. Read and understand these instructions 2. Operate the machine according to prescribed limitations 3. Properly train others who may be permitted to operate the machine 4. - Page 5 Safety Learn To Be A Safe Operator Read This Manual Know the controls on the Water-Reel and also how to shut off the primary water supply! Do not allow children to operate the Water-Reel. Do not allow anyone to operate the Water-Reel without proper instruction. Protect Children Keep children clear of Water-Reel in operation.
- Page 6 Safety Use Caution When Towing Your Water-Reel is not intended for highway towing. Towing Speed: 10 MPH maximum on smooth surfaces. 3 MPH maximum on rough surfaces. Never Tow the Water-Reel in excess of 10 MPH. Keep Hands and Clothing Clear of Machine Never Reach into the Water-Reel While it is in Operation.
-
Page 7: Location Of Safety Messages
DO NOT OPERATE THIS MACHINE UNTIL YOU HAVE READ AND UNDERSTAND THE OPERATOR’S MANUAL. IF YOU CAUTION DO NOT HAVE A COPY OF THE OPERATOR’S MANUAL, CONTACT YOUR DEALER OR VISIT, WWW.KIFCO.COM DO NOT OPERATE THIS MACHINE UNLESS ALL SAFETY SHIELDS ARE SECURELY IN PLACE. -
Page 8: B110G Bellows Components
B110G Bellows Components Pressure Gauge On/Off Lever Drain Pawl Rod Bellows Exhaust Drain Speed Control Shutoff Bar Supply Inlet Stabilizer Legs Stabilizer Legs- Secures the machine in a stationary position for tube pull out and retraction Shutoff Bar- Controls the bellows cycling shut off at the end of an irrigation run or in case of tube mis-wrap Speed Control- Controls the retraction speed Bellows Exhaust Drain- Sends the bellows exhaust water away from the machine On/Off Lever- Turns the water supply to the water motor on and off... -
Page 9: E110G Electric Motor Drive Components
E110G Electric Motor Drive Components Speed Control Pawl Rod Pressure Gage Motor Engage/Disengage Drain Shutoff Bar Motor Stabilizer Legs Supply Inlet Battery Stabilizer Legs- Secures the machine in a stationary position for tube pull out and retraction Shutoff Bar- Controls motor shut off at the end of an irrigation run or in case of tube mis-wrap Drain- Used to relieve pressure from the supply hose and to winterize Pressure Gauge- Displays the inlet pressure Speed Control- Controls the retraction speed... -
Page 10: Gun Cart Components
Gun Cart Components Sprinkler Selector Valve Diaphragm Valve Spool Valve Striker Plate Tow Chain Tow Chain- Used for pulling out the gun cart for an irrigation run Diaphragm Valve**- Controls water flow to the sprinkler Sprinkler Selector Valve**- Controls the option of shutting the water off to the sprinkler after an irrigation run Spool Valve**- Supplies water pressure to activate the diaphragm valve Striker Plate **- Activates actuator valve at the end of an irrigation run... -
Page 11: Handling The Polyethylene Tube
Handling The Polyethylene Tube UV resistant, medium density, polyethylene irrigation tube is a durable product that will operate reliably for many years if handled properly and given a reasonable amount of care. Unlike rubber hose or hose with a woven jacket (lay flat hose), polyethylene is a semi-rigid product that retains its shape when it is not pressurized. -
Page 12: Water-Reel Start-Up & Operation
Water-Reel Start-Up & Operation The successes of the Water-Reel irrigation system depends a great deal on the operator's understanding of the proper pull out and start up procedure. Do not attempt to operate this Water-Reel until you read and understand the preceding section titled "Handling the Polyethylene Tube"! Decide on the proper nozzle size to be used for the irrigation run which thus will also determine the irrigation lane spacing that will be needed (see pages 20 &... - Page 13 Water-Reel Start-Up & Operation Disengage the Pawl(s) by lifting the Pawl Rod into the up position. If the Pawls do not disengage the Drive Ring Gear readily; rotate the Spool forward (the way it runs) to relieve tension on the Drive Pawl(s). Ensure that the Set Collar on the Pawl Rod is in the up position.
- Page 14 Water-Reel Start-Up & Operation Note: Your Kifco Water-Reel is equipped to irrigate on a gradual arc if necessary. Arced irrigation can only be performed after the first 25% of the tube is pulled out straight from the machine and then the gradual cannot exceed 90 degrees over the remaining 75%.
-
Page 15: Water-Reel Start-Up & Operation
Water-Reel Start-Up & Operation ON OPTIONAL WATER SHUT OFF MACHINES ONLY Machines equipped with the optional water shutoff can be set in either the On or Off position (see below diagram) The sprinkler control valve will only operate automatically if the Spool Valve has been reset (see below diagram) Sprinkler Flow Selection Valve “OFF”... -
Page 16: B110G Bellows Drive Operation
Note: The Water- Reel requires 45 Pounds Per Square Inch (PSI) and adequate water flow capacity (GPM) to operate properly. Consult your Kifco dealer if you do not have an adequate water supply. Observe water pressure, travel speed, and sprinkler performance to confirm desired performance. -
Page 17: E110G Electric Motor Drive Operation
E110G Electric Motor Drive Operation With the water supply off; engage the Pawl Rod into its lower (down) position. Pull up on the Motor Mount Pin and engage the motor drive pinion into the Drive Ring Gear. Note: in some instances it will be necessary to turn the Motor on (briefly) in order for the Drive Pinion to mesh with the Drive Ring Gear. -
Page 18: E110G Electric Motor Drive Operation
E110G Electric Motor Drive Operation When the Gun Cart completes the irrigation run and has contacted the Shut Off Bar, the retraction of the Tube will stop. With the irrigation run complete, turn off water supply, relieve pressure and disconnect. Turn the Speed Control Knob all the way off (counterclockwise) The Water-Reel is now ready to be moved and set up in a new location. -
Page 19: Water Application Rate & Travel Speed Settings
Water Application Rate Depth Of Water Applied: The depth of water applied by the Water-Reel is regulated by the retraction speed (speed the sprinkler is moving over the ground). It is also affected by the amount of water being discharged by the sprinkler head. The sprinkler nozzle size and the water pressure determine the amount of discharged water. -
Page 20: B110G Application Charts
B110G Application Charts MODEL B 110G 280 PERFORMANCE Part # 50900440 MODEL TRAVEL SPEED - FEET PER HOUR Irrigated Width 80% Nozzle B110 X SPRINKLER Wetted Diameter INLET size 280' WIDTH LENGTH INCHES DEPTH OF APPLICATION SIME K1 0.61 0.31 0.20 0.15 0.12 0.10 0.67 0.33 0.22 0.17 0.13 0.11 Area covered 0.78 0.39 0.26 0.20 0.16 0.13... -
Page 21: E110G Application Charts
E110G Application Charts MODEL E 110G 280 PERFORMANCE Part # 50900440 MODEL TRAVEL SPEED - FEET PER HOUR Irrigated Width 80% Nozzle E110 X SPRINKLER Wetted Diameter INLET size 280' WIDTH LENGTH INCHES DEPTH OF APPLICATION SIME K1 0.33 0.20 0.11 0.08 0.07 0.06 0.38 0.23 0.13 0.09 0.08 0.07 Area covered 0.45 0.27 0.15 0.11 0.10 0.08... -
Page 22: Maintenance And Repair
Maintenance and Repair Maintenance Procedures: Inspect and perform any maintenance procedure after 100 hours of use. Your Water-Reel machine is equipped with Delrin® Spool Bearings, Drive Arm Pivot Bearing, and Level-Wind Screw that do not need lubrication, but should be inspected periodically for any wear problems. Tire Pressure: Inflate tires to 28 p.s.i. -
Page 23: Polyethylene Tube Repair
Maintenance and Repair Tube menders can be purchase from your Kifco Dealer Warning! Installing fittings or repairing polyethylene tube used on your Water-Reel is hazardous! The tube has a memory from being coiled on a reel and will try to coil back up if the tube is loosened from one end or cut in two. -
Page 24: Filter (On B110G Only)
Maintenance and Repair Filter (on B110G only) Your Water-Reel is equipped with a Filter to protect the water motor from dirt and debris, which may be present in the irrigation water. The Filter protects only the water motor. The water flowing out of the sprinkler is not filtered. -
Page 25: Pawl Rod
Maintenance and Repair Pawl Rod (Hold Out) Rod When the Pawl Rod is in its upmost position (on tube pull out), the Pawls must completely clear the Drive Ring Gear. Drive Ring Gear Pawl Rod The B110G has two pawls. One is the Drive Pawl located on the Bellows Arm. -
Page 26: Machine Winterization
Machine Winterization Freezing will not damage the type of Polyethylene tube used on your Water-Reel. Even though the Tube does not need to be drained you must drain all metal parts. Valve Assembly Completely remove the Supply Hose from the Inlet fitting Speed Control Drain Valve... -
Page 27: Machine Storage
Storage 1. Lubricate all points in the lubrication chart to prevent rust and corrosion from forming. 2. Check and clean Filter (B110G only). 3. Store the Water-Reel away from direct sunlight. 4. Make sure all openings such as the water Inlet are plugged so rodents and insects cannot bring foreign material into the Water-Reel. -
Page 28: Adjustments
Adjustments Level-Wind Timing: Proper timing of the Level-Wind mechanism is essential to the successful operation of the Water-Reel. Improper Level-Wind timing will result in mis-wrapped Tube. Travel will be interrupted because the auto Shutoff Bar will stop the water motor in order to prevent damage to the irrigation Tube. Do not continue to operate if the Tube is not winding properly! Important! Confirm that the timing is at fault before attempting to change the timing. -
Page 29: Spool Brake
Adjustments 3. To change the timing, remove the Shield and disconnect the Level-Wind Drive Chain Loosen Idler to from the right hand side of the Water-Reel. remove Chain Rotate the Level-Wind Input Sprocket until the Tube Follower is positioned as described in step #2. -
Page 30: Drive Pinion Clearance E110G Only
Adjustments Drive Pinion Clearance With the Motor Mount Pin engaged, the Drive Pinion to Drive Ring Gear clearance should be 1/16” to 3/32” (.063” - .094”). Adjust the Drive Pinion clearance by loosening the two Motor Mount Bracket bolts on the side of the frame and sliding the Motor Mount Bracket in towards or away from the Drive Ring Gear. -
Page 31: Warranty
OR ITS MANUFACTURE, DESIGN OR FUNCTIONING, OR ANY INSTRUCTIONS CONCERNING THE EQUIPMENT. No agent or representative of KIFCO or any of its dealerships has authority to waive, alter or add to the printed provisions of this warranty and limitations of liability. -
Page 32: Dealer Checklist
_____ 5. Spool Brake adjustment Delivery Checklist: Review the operator manual with the user and explain the following: _____ 1. Kifco warranty policy and claims procedure _____ 2. Safe operation and service _____ 3. How to operate your Water-Reel _____ 4. Transporting the Water-Reel on roads or highways.
