Simpli Home 3AXCART-04 Manual

Artisan/ holden/ stratford, chest of drawers
Hide thumbs

Advertisement

Quick Links

Download this manual
ARTISAN HOLDEN STRATFORD
/
/
CHEST OF DRAWERS
MODEL # 3AXCART-04
1/23

Advertisement

loading
Need help?

Need help?

Do you have a question about the 3AXCART-04 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Simpli Home 3AXCART-04

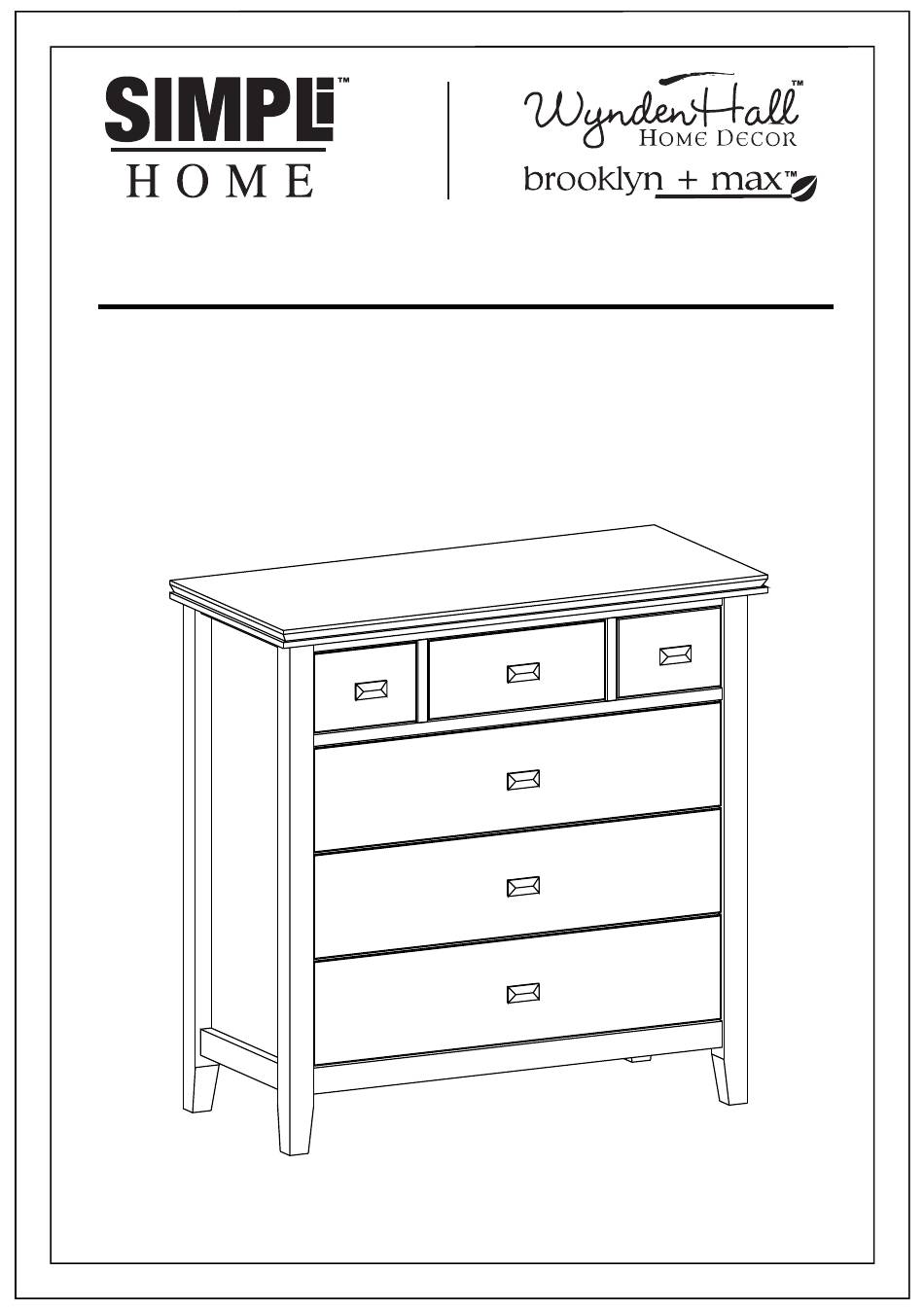

  • Page 1 ARTISAN HOLDEN STRATFORD CHEST OF DRAWERS MODEL # 3AXCART-04 1/23...
  • Page 2 FOR REPLACEMENT PARTS OR HELP WITH ASSEMBLY PLEASE CONTACT US AT: simpli home.com/customer-support PLEASE ENSURE TO HAVE THE MODEL # FROM THE PACKAGING OR INSTRUCTION BOOKLET TO RETURN THE PRODUCT: PLEASE CONTACT THE RETAILER WHERE THE ITEM WAS PURCHASED FROM...
  • Page 3 ENTER TO WIN Upload an image of our furniture in your home with a short review to our facebook page for a chance to Win up to $3000 of Simpli Home furniture!!! www.facebook.com/simplihomefurnishings 3/23...

  • Page 4: Safety Information

    IMPORTANT : Please read this manual carefully before beginning assembly of this product Keep this manual for future reference. SAFETY INFORMATION CAUTION: Injuries and damage can occur from furniture tip over if product is not properly anchored to the wall. Use the Furniture Anti-Tipping Restraint provided with the product.
  • Page 5 PRE ASSEMBLY INFORMATION MODEL # 3AXCART-04 PARTS DESCRIPTION MIDDLE FRAME BOTTOM FRAME QTY 1 QTY 1 QTY 1 SIDE BACK PANEL DIVIDER QTY 1 PAIR QTY 2 QTY 1 PAIR LARGE DRAWER FRONT MIDDLE DRAWER FRONT SMALL DRAWER FRONT QTY 3...
  • Page 6 PRE ASSEMBLY INFORMATION MODEL # 3AXCART-04 PARTS DESCRIPTION MIDDLE DRAWER BACK SMALL DRAWER BACK LARGE DRAWER BOTTOM QTY 1 QTY 2 QTY 3 MIIDDLE DRAWER BOTTOM SMALL DRAWER BOTTOM PLASTIC JOINING STRIP QTY 1 QTY 2 QTY 1 NEED HELP? For help with assembly or if you are missing a part, Please call customer service at 1-866-518-0120 ext.

  • Page 7: Hardware Description

    PRE ASSEMBLY INFORMATION MODEL # 3AXCART-04 HARDWARE DESCRIPTION ALLEN KEY BOLT ALLEN KEY SCREW CAM LOCK PIN M6 X 30 mm M6 X 30 mm CAM LOCK QTY 24 SETS QTY 18 QTY 36 PHILLIPS SCREW HANDLE ROUND HEAD M4 X 25 mm...
  • Page 8 COMPONENTS – KEY DIAGRAM MODEL # 3AXCART-04 8/23...
  • Page 9 ASSEMBLY MODEL # 3AXCART-04 STEP 1 1. Attach 4 Cam Lock Pins 3 to pre-drilled holes at back of Small Drawer Front I . 2. Align Cam Lock Pins with pre-drilled holes and attach Small Drawer Sides K . 3. Insert 2 Cam Locks 3 into pre-drilled holes on each Small Drawer Side K .
  • Page 10 ASSEMBLY MODEL # 3AXCART-04 STEP 3 1. Align Small Drawer Back N with Small Drawer Bottom Q and press firmly into slot . 2. Attach Drawer Back using 2 Allen Key Screws 2 through pre-drilled holes on each Side K .
  • Page 11 ASSEMBLY MODEL # 3AXCART-04 STEP 5 1. Attach 4 Cam Lock Pins 3 to pre-drilled holes at back of Middle Drawer Front H . 2. Align Cam Lock Pins with pre-drilled holes and attach Middle Drawer Sides K . 3. Insert 2 Cam Locks 3 into pre-drilled holes on each Middle Drawer Side K .
  • Page 12 ASSEMBLY MODEL # 3AXCART-04 STEP 7 1. Align Middle Drawer Back M with Middle Drawer Bottom P and press firmly into slot. 2. Attach Drawer Back using 2 Allen Key Screws 2 through pre-drilled holes on each Side K .
  • Page 13 ASSEMBLY MODEL # 3AXCART-04 STEP 9 1. Attach 4 Cam Lock Pins 3 to pre-drilled holes at back of Large Drawer Front G . 2. Align Cam Lock Pins with pre-drilled holes and attach Large Drawer Sides J . 3. Insert 2 Cam Locks 3 into pre-drilled holes on each Large Drawer Side J .
  • Page 14 ASSEMBLY MODEL # 3AXCART-04 STEP 11 1. Align Large Drawer Back L with Large Drawer Bottom O and press firmly into slot. 2. Attach Drawer Back using 2 Allen Key Screws 2 through pre-drilled holes on each Side J .
  • Page 15 ASSEMBLY MODEL # 3AXCART-04 STEP 13 1. Attach Dividers F to Middle Frame C using 6 Allen Key Screws 2 ( 3 Screws / each Divider ). 2. Use Allen Key 5 to tighten screws. Do not over-tighten. 15/23...
  • Page 16 ASSEMBLY MODEL # 3AXCART-04 STEP 14 1. Attach Middle Frame C and Bottom Frame B to Sides D using 12 Allen Key Bolts 1 ( 6 Bolts / each Side ). 2. Use Allen Key 5 to tighten bolts. Do not over-tighten.
  • Page 17 ASSEMBLY MODEL # 3AXCART-04 STEP 15 1. Attach Top A to Sides D using 6 Allen Key Bolts 1 ( 3 Bolts / each Side ). 2. Attach Top A to Dividers E using 6 Allen Key Screws 2 ( 3 Screws / each Divider ).
  • Page 18 ASSEMBLY MODEL # 3AXCART-04 STEP 16 1. Attach the upper Back Panel E to back frame by using Phillips Screws 6 . Only 1 top row of screws ( 5 screws ) to be screwed in advance. 2. Insert the lower Back Panel E into the slot of Plastic Joining Strip R .
  • Page 19 ASSEMBLY MODEL # 3AXCART-04 STEP 17 1. Insert assembled drawers into glides on assembled chest. 19/23...
  • Page 20 FURNITURE ANTI-TIPPING RESTRAINT ASSEMBLY NOTE: Injuries and damage can occur from furniture tip-over. It is important to use the safety bracket included. If the tipping restraint kit is not in the box, please contact our customer service department in order to obtain another kit before using the furniture.
  • Page 21 FURNITURE ANTI-TIPPING RESTRAINT ASSEMBLY Furniture Anti-Tipping Restraint Instructions: Attach one of the mounting brackets securely to the back edge of the furniture. Use the shorter screw. Determine where furniture is to be placed and mark location on the wall for mounting bracket screw hole approximately 2 inches below the bracket mounted to the furniture.

  • Page 22: Warranty

    WARRANTY Thank you for purchasing a Simpli Home – Wyndenhall – Brooklyn + Max product. These products have been made to demanding, high-quality standards and are guaranteed for domestic use against manufacturing faults for a period of 12 months from the date of purchase. This warranty does not affect your statutory rights.
  • Page 23 Question, problems, missing parts? Before returning your product please email Customer Support at simpli-home.com/customer-support or call Customer Support at 1-866-518-0120 ext. 262 Monday to Friday between 9 am – 4 pm EST For more information visit us on our website www.simpli-home.com Like us on facebook www.facebook.com/simplihomefurnishings...
