Moultrie Mobile X Series Instruction Manual

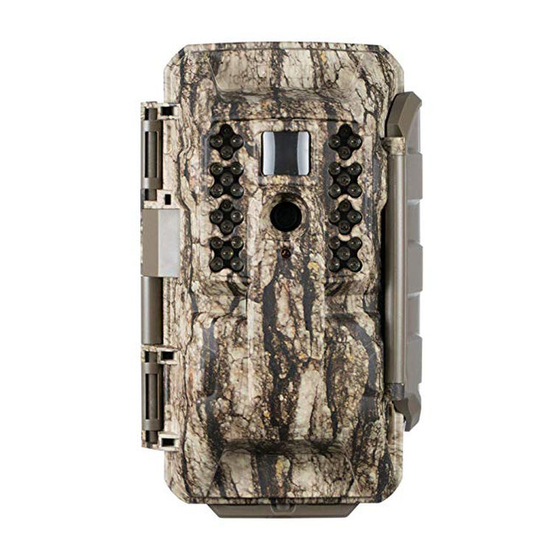

Cellular game camera
Hide thumbs Also See for X Series:
Table of Contents

Advertisement

Quick Links

X-SERIES CELLULAR GAME CAMERA INSTRUCTION MANUAL

Table of Contents

Account Set Up .........2
Install SD Card ..........4
Format SD card ........5
Test Image ................8
Mount Camera ........11
Please register your camera at www.MoultrieFeeders.com/warranty to activate your warranty.
IMPORTANT! READ BEFORE YOU START:
• We recommend that you go through the entire set up process
at home to ensure your camera is operating as expected and
images are transmitting prior to taking to the field for use.
• You must have an ACTIVE Moultrie Mobile account to operate
camera and retrieve images. Log on to MoultrieMobile.com
to set up an account or use the free Moultrie Mobile app.
Plan purchased from Moultrie at time of activation.
• 12 AA batteries and a compatible SD card are required;
we recommend an 8GB or smaller Class 10 SD card.
NOTE: See page 3 for important battery information.
• Each time you insert an SD card, be sure to format the SD card
in your camera to ensure it will work properly. See page 5 for
instructions on how to format SD card.
• 4G Network Coverage is required. Go to MoultrieMobile.com
to verify coverage in your location.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the X Series and is the answer not in the manual?

Questions and answers

Related Manuals for Moultrie Mobile X Series

Summary of Contents for Moultrie Mobile X Series

  • Page 1: Table Of Contents

    • You must have an ACTIVE Moultrie Mobile account to operate camera and retrieve images. Log on to MoultrieMobile.com Table of Contents to set up an account or use the free Moultrie Mobile app. Account Set Up ..2 Plan purchased from Moultrie at time of activation.

  • Page 2: Account Set Up

    Please check your spam, clutter or junk folders for this email. • Log-on to your Moultrie Mobile account via app or website. • From the MY ACCOUNT section, select “Activate Device” and follow the on-screen instructions.

  • Page 3: Install Batteries

    • Be sure batteries are inserted correctly into the battery compartment before powering on the device. Note: When using lithium batteries, the Moultrie Mobile system may report near full capacity and then quickly drop to indicate low voltage within a short period. This is due to the properties of lithium batteries and is expected behavior.

  • Page 4: Install Sd Card

    3. INSTALL SD CARD Locate SD card slot on side of camera and insert SD card. Make sure to format the SD card in the camera to ensure proper operation. See page 5 for formatting instructions. Important SD Card Information •...

  • Page 5: Format Sd Card

    Once you’ve completed the steps above, you will have the option to format your SD card from the Moultrie Mobile app or website under your camera settings. After you have elected to format your SD card, it will format the next time the camera checks in with the Moultrie Mobile.

  • Page 6: Led Color Chart

    • SIGNAL LED will flash yellow while acquiring signal and turn to solid green if signal is good, yellow if signal is ok, and red if signal is bad. • SERVER LED will flash yellow while connecting to Moultrie Mobile and turn green when connected. This could take some time, be patient.
  • Page 7 Good card Format/Erase or Replace card SERVER Connected Connecting... Can’t connect Note: The SIGNAL and SERVER LED’s will flash yellow indicating the camera is connecting to Moultrie Mobile. Once the LEDs stop flashing, the illuminated color will reflect connection status.

  • Page 8: Test Image

    LEDs turn off. We strongly recommend you confirm receipt of test picture by logging in to your Moultrie Mobile account via the app or website. MANUALLY TRANSMIT IMAGES You have the option to transmit any photos captured since the last connection by briefly pressing and realeasing the CONNECT/STATUS button.

  • Page 9: Camera Settings

    Moultrie Mobile. The video will remain on the SD card. Important: After camera settings are selected and saved, the settings will be changed on the camera the next time the camera connects to Moultrie Mobile. To manually connect, press the CONNECT/STATUS button to connect to Moultrie Mobile and update settings immediately.

  • Page 10: Update Firmware

    8. UPDATING YOUR FIRMWARE The XA-7000i / XV-7000i is designed to perform firmware updates automatically. In the event you need to perform a manual camera firmware update, please follow the below instructions: UPDATE FIRMWARE MANUALLY Important: To install firmware manually you must first download the firmware to a clean SD card. Go to MoultrieFeeders.com/firmware-faq for a complete list of firmware and instructions on how to download firmware to an SD card.

  • Page 11: Mount Camera

    9. MOUNTING CAMERA • Thread mounting strap through slots on back of camera case. • Mount camera to a tree or pole approximately three (3) feet 3 ft. from ground. You may need to adjust for uneven terrain. For added security, you can attach the camera to a tree with a Master Lock Python™...
  • Page 12 Return section. Physical damage, alterations or tampering with the equipment is not covered under warranty and will invalidate your warranty. For questions go to the “Contact Us” section of MoultrieMobile.com or the Moultrie Mobile app. PRADCO Outdoor Brands • 3280 Highway 31, Ste. B • Calera, AL 35040...
