DIVEPRO CL4200R Operation Manual

180 degrees movable cable canister light

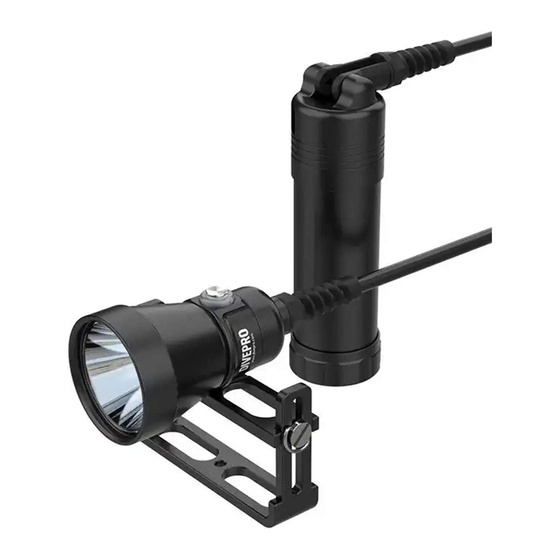

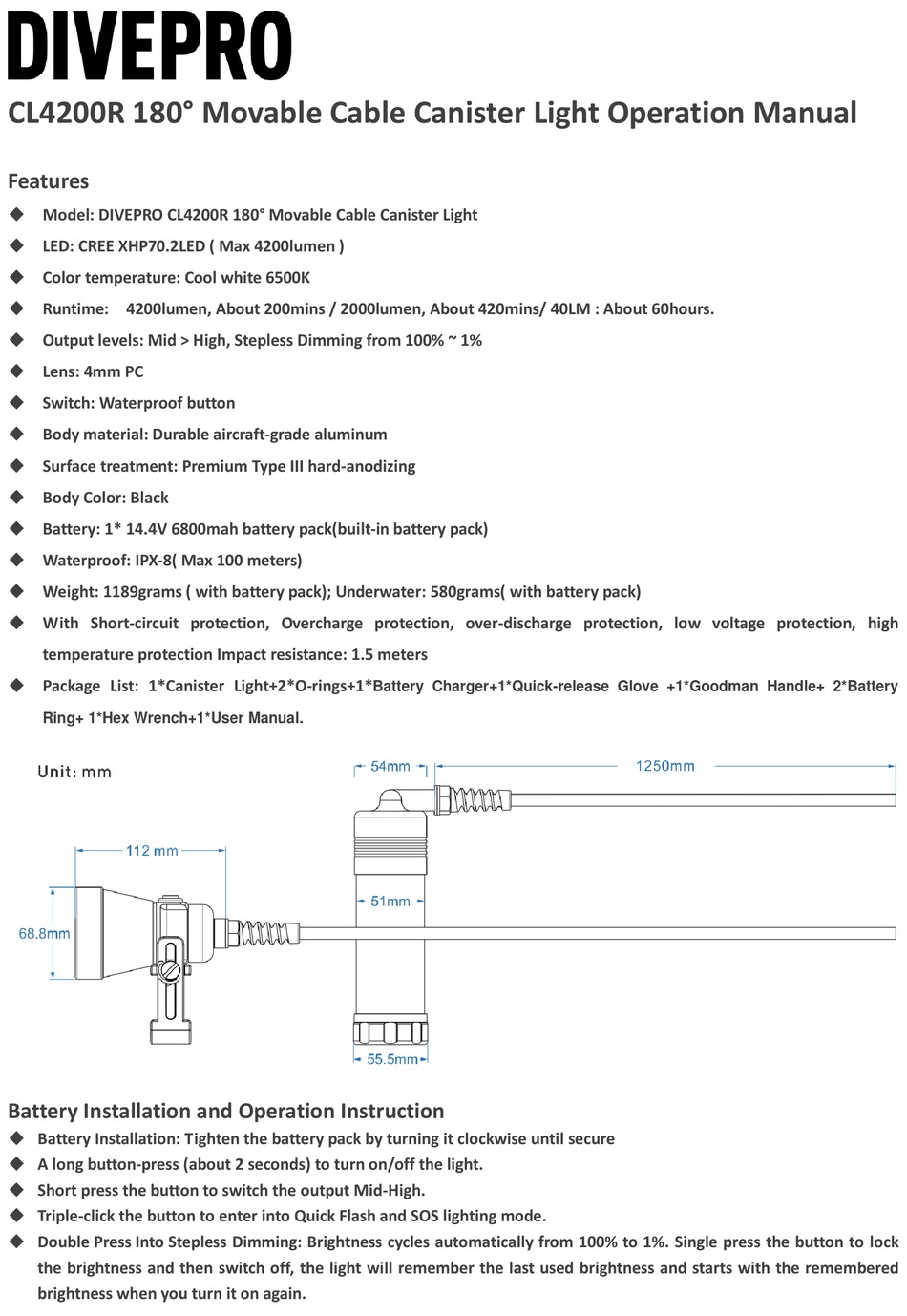

CL4200R 180° Movable Cable Canister Light Operation Manual

Features

 Model: DIVEPRO CL4200R 180° Movable Cable Canister Light

 LED: CREE XHP70.2LED ( Max 4200lumen )

 Color temperature: Cool white 6500K

 Runtime: 4200lumen, About 200mins / 2000lumen, About 420mins/ 40LM : About 60hours.

 Output levels: Mid > High, Stepless Dimming from 100% ~ 1%

 Lens: 4mm PC

 Switch: Waterproof button

 Body material: Durable aircraft-grade aluminum

 Surface treatment: Premium Type III hard-anodizing

 Body Color: Black

 Battery: 1* 14.4V 6800mah battery pack(built-in battery pack)

 Waterproof: IPX-8( Max 100 meters)

 Weight: 1189grams ( with battery pack); Underwater: 580grams( with battery pack)

 With Short-circuit protection, Overcharge protection, over-discharge protection, low voltage protection, high

temperature protection Impact resistance: 1.5 meters

 Package List: 1*Canister Light+2*O-rings+1*

Ring+ 1*Hex Wrench+1*User Manual.

 Battery Installation: Tighten the battery pack by turning it clockwise until secure

 A long button-press (about 2 seconds) to turn on/off the light.

 Short press the button to switch the output Mid-High.

 Triple-click the button to enter into Quick Flash and SOS lighting mode.

 Double Press Into Stepless Dimming: Brightness cycles automatically from 100% to 1%. Single press the button to lock

the brightness and then switch off, the light will remember the last used brightness and starts with the remembered

brightness when you turn it on again.

Battery Charger+1*Quick-release Glove +1*Goodman Handle+ 2*Battery

Table of Contents

Do you have a question about the CL4200R and is the answer not in the manual?

Page 1 CL4200R 180° Movable Cable Canister Light Operation Manual Features  Model: DIVEPRO CL4200R 180° Movable Cable Canister Light  LED: CREE XHP70.2LED ( Max 4200lumen )  Color temperature: Cool white 6500K  Runtime: 4200lumen, About 200mins / 2000lumen, About 420mins/ 40LM : About 60hours.
Page 2 Please charge it 1-2 times per every month if you don’t use it for a long time. Warranty Service All DIVEPRO flashlight are warranted for quality. Defective DIVEPRO flashlight will be repaired free of charge for a period of 24 months from the date of purchase.
