Summary of Contents for SZILBZ H18+
- Page 1 VER: 1.0...

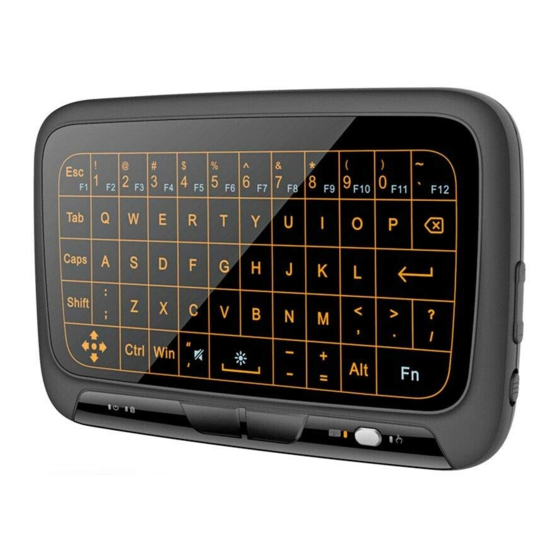

- Page 2 Overview Thank you for purchasing this Wireless Mini Touchpad & Keyboard Combo. You can use it for emails, chat , remote control, message input and games . It is compatible with PC, Laptop ,Mac OS, Linux, HTPC, IPTV, Google Android Smart TV Box, XBMC, Windows 2000 XP /Vista/7/8/10.Use it with your Android box or smart TV on your sofa or browse the internet in the most comfortable fashion.
-
Page 3: System Requirements
System Requirements - HID compatible USB HOST device - Window XP, Vista,7/8/10, Linux, Android OS (With standard USB interface) Quick Start - Plug the USB receiver into USB interface of host device(PC, laptop, smartTV etc) - Turn on this touchpad by toggling the right side switch. Function Overview -Touch Function(show nothing): mouse function, including the mouse moving, left... -
Page 4: Operation Modes
Operation Modes This product has two kinds of operation mode: Touch mode and Keyboard mode. You can press the key to switch between the 2 modes. - Touch mode(default): In this mode, users can realize the mouse clicking and moving functions as well as some normal gestures in win10 system. - Page 5 Touch Gestures (Touchpad mode) This product can support some normal touch gestures as following. Note: gestures zoom in, zoom out and show desktop are valid only on windows 7 or above operating system. Drag and Drop: As if you were clicking and holding the mouse button down while moving it. Perform a double tap and move your finger.
- Page 6 The Combination Keys (Keyboard Mode) 1. press and hold “Fn”(the panel only show the key icons that can be combined with “Fn”) and press the combination key to realize the corresponding functions. “Fn” + : backlit adjustment(3 levels) “Fn” + : open/close buzzer “Fn”...
-
Page 7: Power Saving
Indicators Red : - It blink in low voltage and be on in charging status - It will be off when the battery is fully charged. Blue: - It keeps on when key or touchpad is pressed and be off after finger released. - It will flash when the wireless part is not work correctly. - Page 8 Please Note - The extension usb cable can be used for charging. It can not be used for digital connection. - Re-pair: If the blue LED keep flashing, It means the touchpad needs to be paired with usb-receiver. As for how to pair, please try the following steps: - Step1: Pull out the usb receiver and then press “Left Mouse button”...
-
Page 9: Specifications
Specifications - Receiver(dongle): Nano style - Connection port: With USB2.0 or above -Transmission mode: GFSK 2.4GHz wireless, up to 10 meters -Transmission frequency : 2400-2483MHZ(16 channels) - Transmission Power : Less than +4bd - Power supply: Rechargeable polymer Lithium-ion battery - Charging voltage: 4.4V-5.25V Charging current: 300mA... - Page 10 Q1: Keyboard and touch pad do not respond , and the indicators can not be illuminated. A: Check whether the switch is in the “▼” position and make sure the battery power is not low. Q2: How long is required to charge the battery A: The red indicator will be lighted during charging and off when it is fully charged .
-
Page 11: Maintenance
Warnings - When charging finishes, pull out the charging cable. - Never try to open or repair this product yourself. - Keep this device away from fluids, such as water. Maintenance - Not attempt to disassemble the device or replace the rechargeable battery yourself. - The battery will discharge when it is stored for a long time without operation. - Page 12 Disposal Always dispose the used appliance at a recycling center. Do not dispose the used appliance together with the household waste. Note: Due to 2.4G wave technology adoption, the connection can be subject to interference from obstacles, like wails, metals, or other electronic devices. Please keep the space between the keyboard and USB receiver free of obstacle.
