DT3-xxx appendix B – DVB-T / DVB-T2 /USB functions manual
1. Remote control operations (with optional C3-IRSET)
The full DVB-T-function IR remote control and IR sensor are optionally available (C3-IRSET).
With the remote control, the DVB-T functions can be used on the rear-seat-entertainment
output of the dvbLOGiC even when the navigation is not in dvbLOGiC mode. If switched to
OEM modes while using the DVB-T-functions, the dvbLOGiC keeps working.
Before attempting to operate your remote control, install the batteries as described below:
1. Turn the remote control face down.
2. Press down on the ridged area of the battery cover and slide it off.
3. Insert the batteries obeying the polarity.
4. Slide the battery cover back into its position on the remote control.

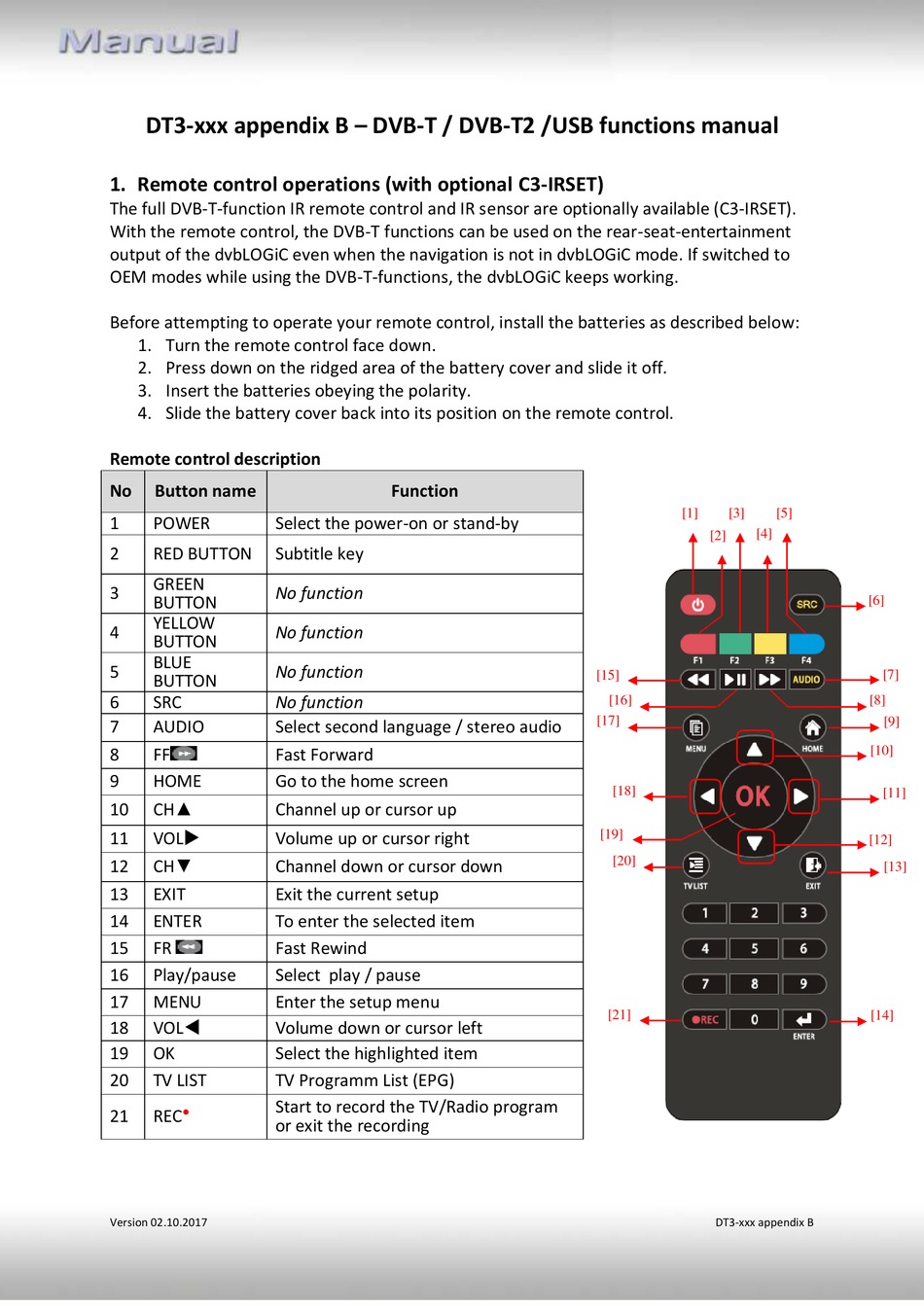

Remote control description
No Button name
1 POWER Select the power-on or stand-by
2 RED BUTTON Subtitle key
GREEN
3 No function
BUTTON
YELLOW
4 No function
BUTTON
BLUE
5 No function
BUTTON
6 SRC No function
7 AUDIO Select second language / stereo audio
8 FF Fast Forward
9 HOME Go to the home screen
10 CH▲ Channel up or cursor up
11 VOL Volume up or cursor right
12 CH▼ Channel down or cursor down
13 EXIT Exit the current setup
14 ENTER To enter the selected item
15 FR Fast Rewind
16 Play/pause Select play / pause
17 MENU Enter the setup menu
18 VOL Volume down or cursor left
19 OK Select the highlighted item
20 TV LIST TV Programm List (EPG)
Start to record the TV/Radio program
●
21 REC
or exit the recording
Version 02.10.2017
Function
[1] [3]
[4]
[2]
[15]
[16]
[17]
[18]
[19]
[20]
[21]
DT3-xxx appendix B
[5]
[6]
[7]
[8]
[9]
[10]
[11]
[12]
[13]
[14]
