Summary of Contents for Sense Labs Sense
- Page 1 ®...
- Page 2 If it does cause interference we recommend: reorienting or relocating the 3. Do not try to open the Sense monitor, receiving antenna, or increasing the separation touch any internal parts, or try to repair it.
- Page 4 Instructions 1. Install the Sense monitor 2. Install app at sense.com/app 3. Tap “Get Started” in the app 4. Use the app to complete setup Antenna assembly Sense monitor Power cable External mounting kit* Current sensors Screws only for external use...

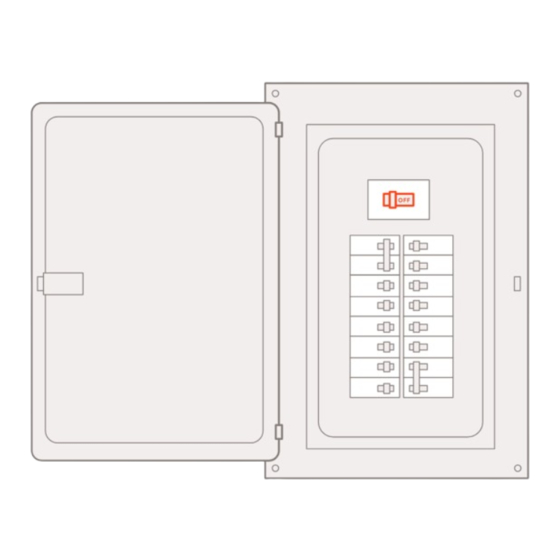

- Page 5 Turn o power Open your electrical panel and turn o your main breaker. This helps protect you during installation. Don't forget your ashlight! If you have solar, turn o your inverter. Refer to the solar installation guide for setup instructions.
- Page 6 Remove panel cover Remove the screws securing the panel cover to access the circuit breakers. Warning: The service mains are always live!
- Page 7 Find a spot for your Sense What if there is no room? The Sense monitor is designed to t Use the mounting bracket provided. within your main panel. Find an open See more installation con gurations spot that works for you.
-
Page 8: Install The Antenna
Install the antenna Using the back of a screwdriver, punch out the knockout cover in the electrical panel. Then, insert the antenna. Antenna Knob Insert Extension cable Extension cable knob... - Page 9 Connect Connect the power cable, current sensors, and antenna to the Sense monitor. Be sure to insert the sensor into the outer port. The middle port is for solar sensors.
- Page 10 Clamp the sensors around the service mains so that both labels are facing the same direction. The direction of the sensors does not matter, as long as they are the same. As a safety precaution, rst plug the sensors into the Sense monitor.
-
Page 11: Connect The Power
Connect to an existing or add a new an empty 240V breaker and the white wire 240V breaker. Do not use a tandem to the neutral bus bar. Sense draws less breaker, unless it is 240V. Learn more than 0.1A, so you should use the smallest at help.sense.com. - Page 12 Replace the panel cover carefully to Reattach each sensor to ensure that there is no pressure on the the same service main as before to sensor clamps that would cause them avoid disrupting device detection. to open. Label the Sense breakers with the sticker.
- Page 13 Turn power on, wait for chime Moving? Take Sense with you. Once the panel is closed, turn the main Using the app, reset your data. Follow breaker back on, and listen for one of the all safety precautions. Turn o power to sounds listed below.
- Page 14 Use the app to complete setup Install the Sense app by visiting sense.com/app. Click “Get Started” and follow the on-screen instructions. The app will guide you through the Wi-Fi setup and account creation process. 9:41 AM 100% Unknown Dryer Porch...
- Page 15 Caution: The Sense monitor should be installed by a quali ed professional. Before installing, please read and review the safety warnings. Technical Speci cations Monitor Speci cations Sense is a home energy monitoring device. Compatibility: 120VAC (90v-130v) It is used to measure the current and Power Use: <...
- Page 16 See what’s up. Know what’s on. ™...
