Summary of Contents for deconta Telealarm GSM

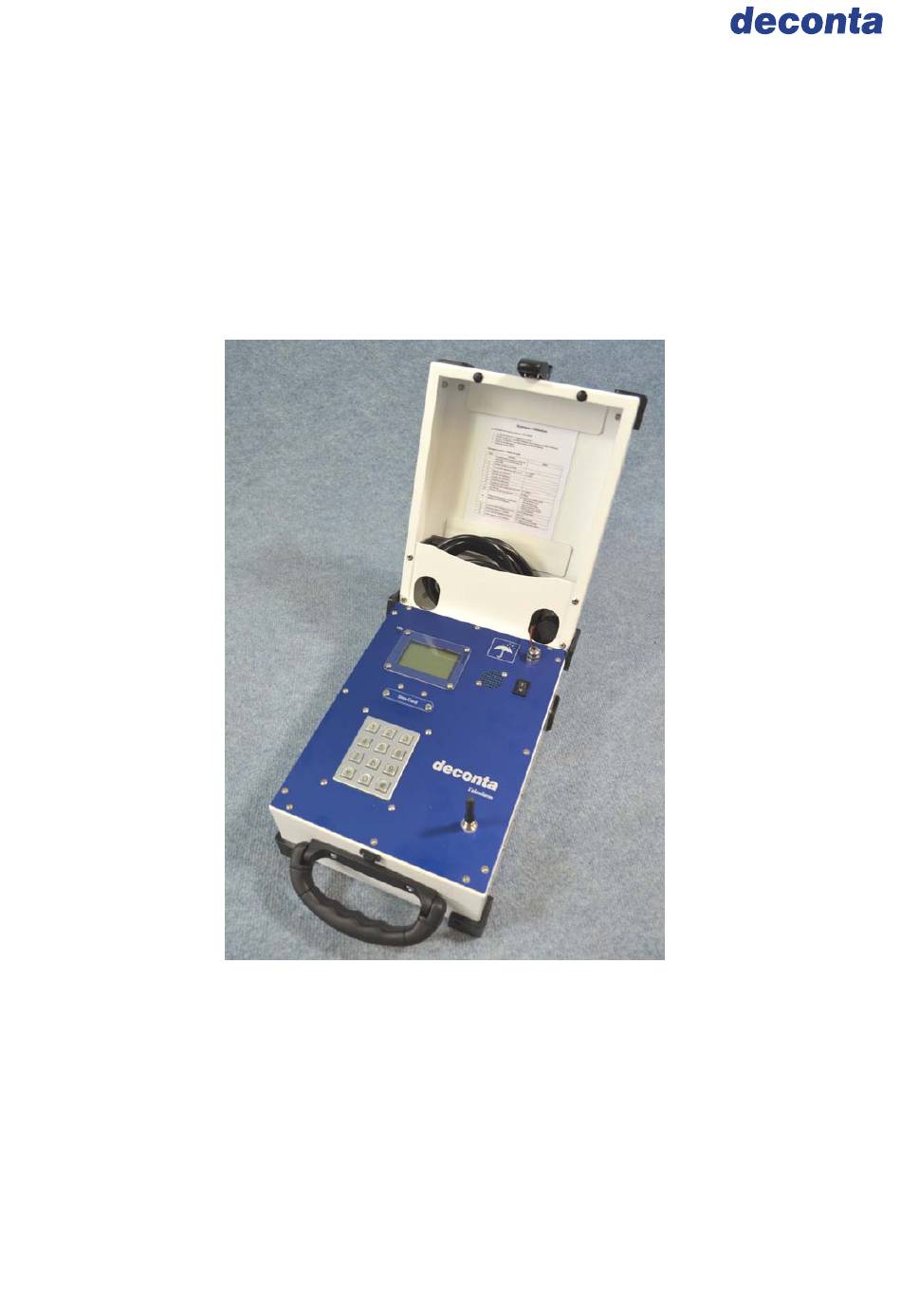

- Page 1 Instruction manual Automatic phone announcement unit Telealarm GSM (requires 2G network / GSM) Manufacturer: deconta GmbH Im Geer 20, D - 46419 Isselburg Name / Type No.: Telealarm GSM Type 531 Serial number: ....
-
Page 2: Table Of Contents
Instruction manual Automatic phone announcement unit Telealarm GSM Table of contents on page Introduction Basic safety advice Transport Delivery Transport Scope of delivery Technical discription Technical data Technical data Equipment Intial operation Important advices Insertion of the SIM Card Display- indications... -
Page 3: Introduction
Mechanics with „kick“ Pleasing design The copyright of this instruction manual remains with deconta. This manual is intended for assembly, operation and maintenance personnel. It contains instructions and drafts of technical nature which may neither be distributed nor used in any unauthorised way for competitive purposes or passed on to others. -
Page 4: Basic Safety Advice
2.1 Use according to regulations deconta has to engage you as the user to follow the guide book and to employ this engineered technology only in accordance with the regulations and not in a inappropriate way! In the event of non-observance, deconta assumes no liability. -
Page 5: Transport
If no other agreements have been made, the device will be delivered complete and well packed for the transport from deconta works. Transport damages have to be documented at once during the handing over of the carrier or another supplier. Please note the possible damages additionally on the way bill. -
Page 6: Technical Discription
Automatic phone announcement unit Telealarm GSM 5 Technical description The device Telealarm GSM allows the notification of the person on charge in case of alarm or message by means of an integrated CSM phone. The connection and the handling are perfectly simple. For the use, you only need a SIM Card and current. -
Page 7: Technical Data
Instruction manual Automatic phone announcement unit Telealarm GSM 6 Technical data 6.1 Technical data Length: 236 mm Width: 186 mm Height: 335 mm Weight: 4,86 kg Current: 230 V / 16 A Battery: 12 V – 1,2 Ah 6.2 Equipment ... -
Page 8: Intial Operation
Instruction manual Automatic phone announcement unit Telealarm GSM 7 Initial operation 7.1 Important advices Before every use, please examine the device, cable and plug on damages. In the event of fault or malfunction, stop the device at once and secure it. Any faults must be rectified immediately. -
Page 9: Display- Indications
Instruction manual Automatic phone announcement unit Telealarm GSM 8 Display- Indication Battery indication Device status Alarm status Network operator GSM field intensity After the switching-on of the device, following information appears on the display: Left above => Status of the device... -
Page 10: Settings / Operation
Instruction manual Automatic phone announcement unit Telealarm GSM 9 Settings / Operation Code (in this case Pin entry) Actual value (in this case Pin Number) The settings are always done in the same way on the keyboard: Press the key # => C appears on the display ... -
Page 11: Possible Settings / Code Chart
Instruction manual Automatic phone announcement unit Telealarm GSM 9.1 Possible settings / Code chart Code Function Value Recording of the message (Speak the text in the microphone, max. 20 seconds) Listen to the announcement text 0 = inactive activate / inactivate device... -
Page 12: Declaration Of Conformity
Instruction manual Automatic phone announcement unit Telealarm GSM 10 Declaration of conformity EU Declaration of Conformity deconta GmbH Im Geer 20 D-46419 Isselburg Product: Automatic play out message device Type: 531 The design of the unit corresponds EC Machine directive 93/68/EWG...
