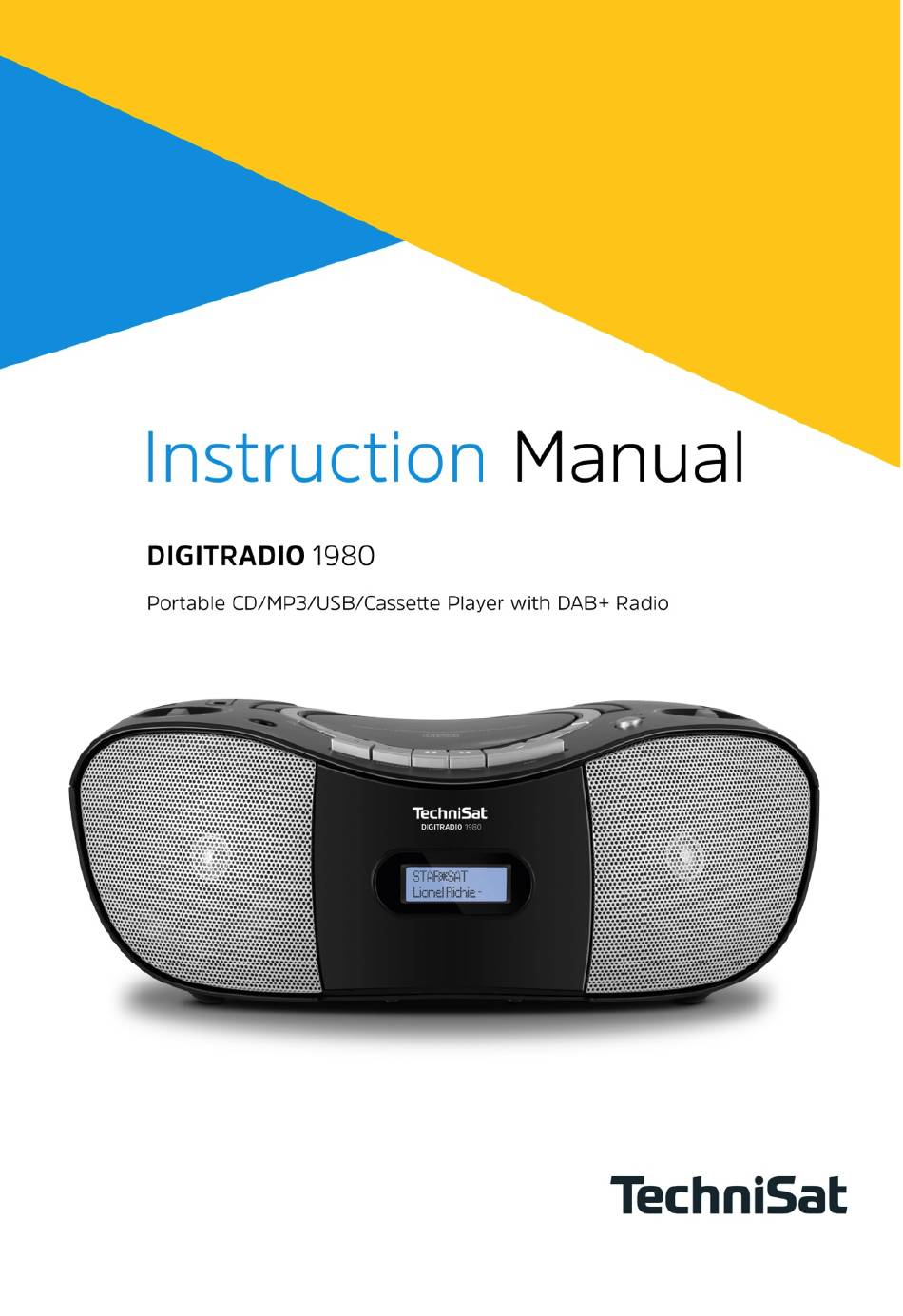

Instruction Manual
Advertisement
Table of Contents
Related Manuals for TechniSat DIGITRADIO 1980
Summary of Contents for TechniSat DIGITRADIO 1980
-
Page 2: Important Notes
IMPORTANT: Please read before using and retain for future reference. IMPORTANT NOTES INTRODUCTION ! Thank you for buying our product. ! Please read through these operating instructions, so you will know how to operate your equipment properly. After you finished reading the instructions manual, put it away in a safe place for future reference. -
Page 3: Location Of Control
compartment or cause the batteries to burst, therefore: Do not mix battery types, e.g. alkaline with zinc carbonate. − When inserting new batteries, replace all batteries at the same time. − LOCATION OF CONTROL... -
Page 4: Names Of Controls
NAMES OF CONTROLS HANDLE STANDBY/FUNCTION BUTTON AC SOCKET STANDBY INDICATOR USB PORT FM TELESCOPIC ANTENNA VOLUME CONTROL TUNING KNOB CD FOLD+/+10/INFO/M+ BUTTON CD DOOR OPEN/CLOSE MEM./P-MODE BUTTON BATTERYCOMPARTMENT AUX IN JACK CD COMPARTMENT STOP/MENU BUTTON SPEAKERS CD PLAY/PAUSE/SELECT/SCAN LCD DISPLAY BUTTON CASSETTE PAUSE KEY CD SKIP/SEARCH BACKWARD... -
Page 5: Bass Boost System
BASS BOOST SYSTEM The DBBS BUTTON controls the bass of the unit. Bass sound is the lower frequency ranges of sound. The knob can be pushed to OFF or ON position, When the DBBS is on, the unit boosts (increases) the sound output of the bass frequencies. DAB RADIO OPERATION DAB radio mode receives DAB/DAB+ digital radio and displays information about the station and programmed/track as broadcast. -
Page 6: Radio Operation
comparatively quieter. There are 3 options in this setting, the options available are: DRC high/low/off. To change the DRC setting, press the STOP/MENU button to enter menu selection, select the “DRC” option then rotate the tuning control or press the button to choose a desired option and press the PLAY/PAUSE/SELECT/SCAN button to confirm. - Page 7 Depress the STOP/EJECT button to open the cassette door. Insert the cassette into the compartment with the open end facing upwards and the full reel on the left hand side, push the cassette well down and close the door, be sure not to touch the tape surface, Set the Function switch to “TAPE”...
- Page 8 CD OPERATION Discs for Playback This system can playback all digital audio CD/MP3/WMA discs, finalized digital audio CD-Recordable (CD-R) discs and finalized digital audio CD-Rewritable (CD-RW) discs. LOADING A DISC Select the CD mode with The following will appear in the STANDBY/FUNC.
-
Page 9: Usb Operation
INTRO PLAY Press the MEM./P-MODE button once in play, "INTRO" shows on the display. Each track is played for 10seconds respectively. To cancel repeat play, press MEM./P-MODE button until "INTRO" disappears from display. PROGRAM TRACKS Programming tracks of disc are possible when playback is stopped. Up to CD 20 tracks /MP3 99 tracks can be stored in the memory in any order. -
Page 10: Specifications
SPECIFICATIONS GENERAL Power Requirement ………………………………………………………………AC 230V~50Hz DC 12V UM-2 x 8 PCS Power consumption…………………………………………………………………… 18 Watts Weight………………………………………………………………………………Approx. 2.04kg Dimension……………………………………………………364mm(L)x243mm(W)x141mm(H) Operation temperature……………………………………………………………+5° C - + 35 °C REVEIVER SECTION FM Frequency Range…………………………………………………………… 87.5 – 108 MHz DAB+ Frequency Range…………………………………………… 174.928MHz–239.200MHz COMPACT DISC SECTION Optical Pickup………………………………………………………………………3-Beam Laser Frequency Response……………………………………………………………100Hz –...
