Tecno RS Installation Instructions

TECNO RS SEATING SYSTEM

MATERIALS INCLUDED

a b

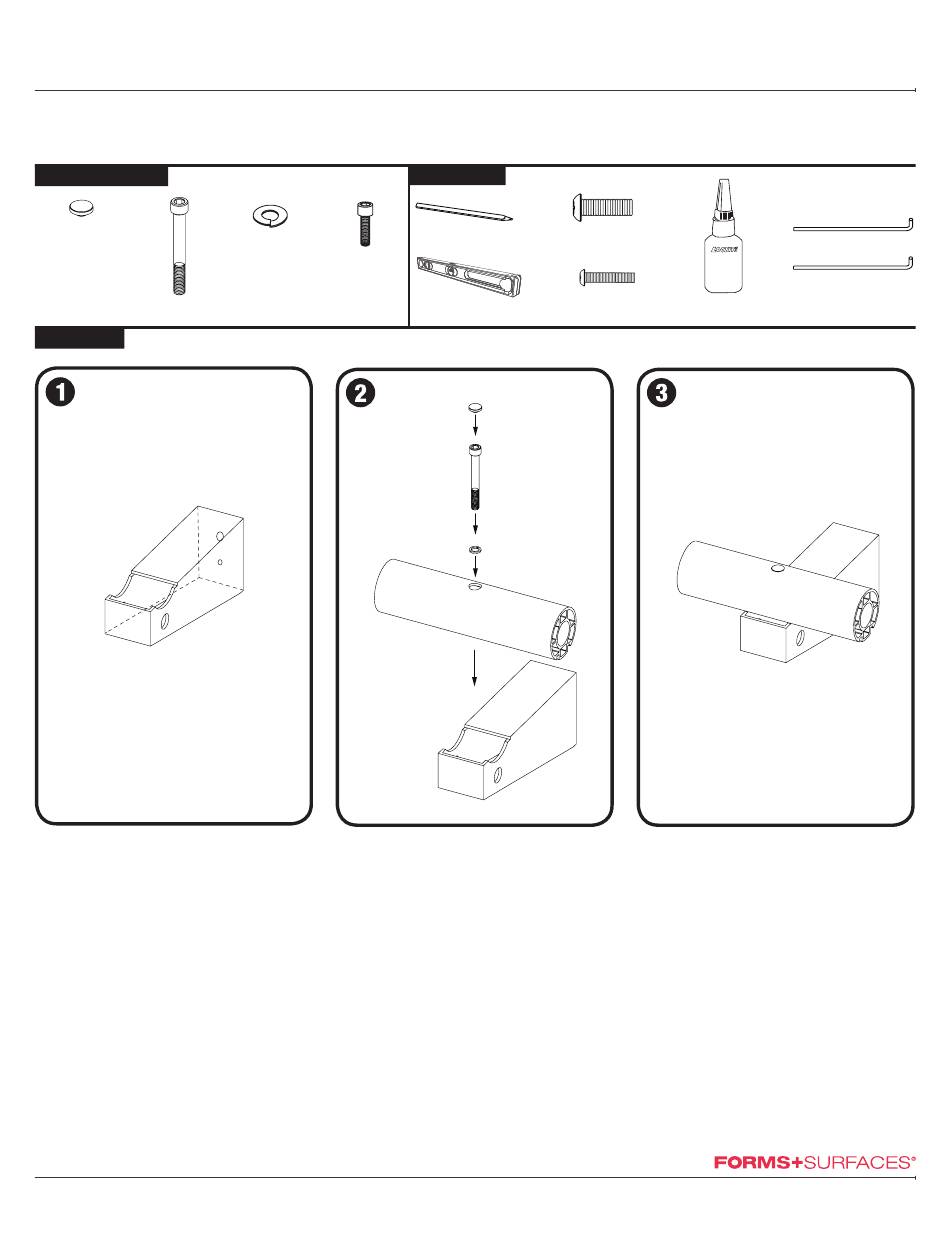

STEP BY STEP FOR WALL MOUNT CONFIGURATIONS.

Secure wall mount bracket to wall

• Choose hardware that is appropriate
for your application. Mounting bracket
accepts 14mm bolt for mounting (top
hole) and 10 mm bolt for leveling
(bottom hole).
• Use a level to ensure mounting location
is level before securing mounting
brackets to wall.
Note: Because different wall materials
may require different hardware,
mounting hardware is not included.
T 800.451.0410 | www.forms-surfaces.com
© 2016 Forms+Surfaces® | All dimensions are nominal. Specifications and pricing subject to change without notice. For the most current version of this document, please refer to our website at www.forms-surfaces.com.

TOOLS NEEDED

c d

Attach seat rail to freestanding legs

• Once all wall mount brackets are in
position, place seat rail onto brackets.
Ensure that connection holes in the seat
rail and brackets align.
• Insert M12 lock washer (c), then M12
x 120 socket head cap screw (b) into
seat rail to secure seat rail to the rail
mounting bracket.
• Tighten screw until snug.
• Fit nylon cap (a) onto the top of socket
head cap screw.
WALL MOUNT INSTALLATION INSTRUCTIONS
pencil
14mm bolt for
mounting
10mm bolt for
level
leveling
a
b
c
M8 hex key
M12 hex key
Loctite

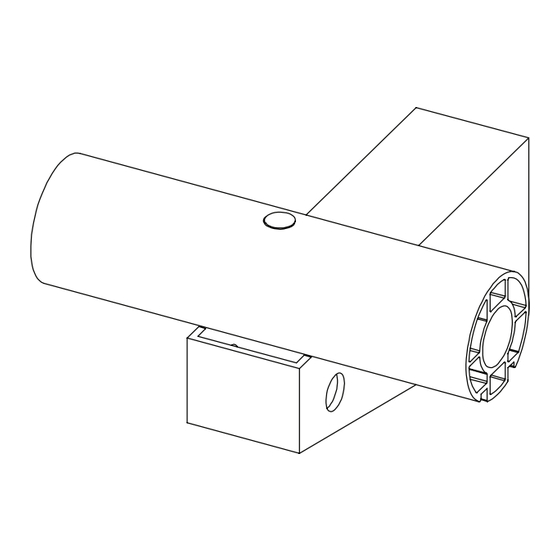

Secure seat rail

• Seat rail should now be secured to the
wall mount bracket.
page 1 of 2 | Rev. 05-05-16
