Summary of Contents for Gefen EXT-RACK-MGPR

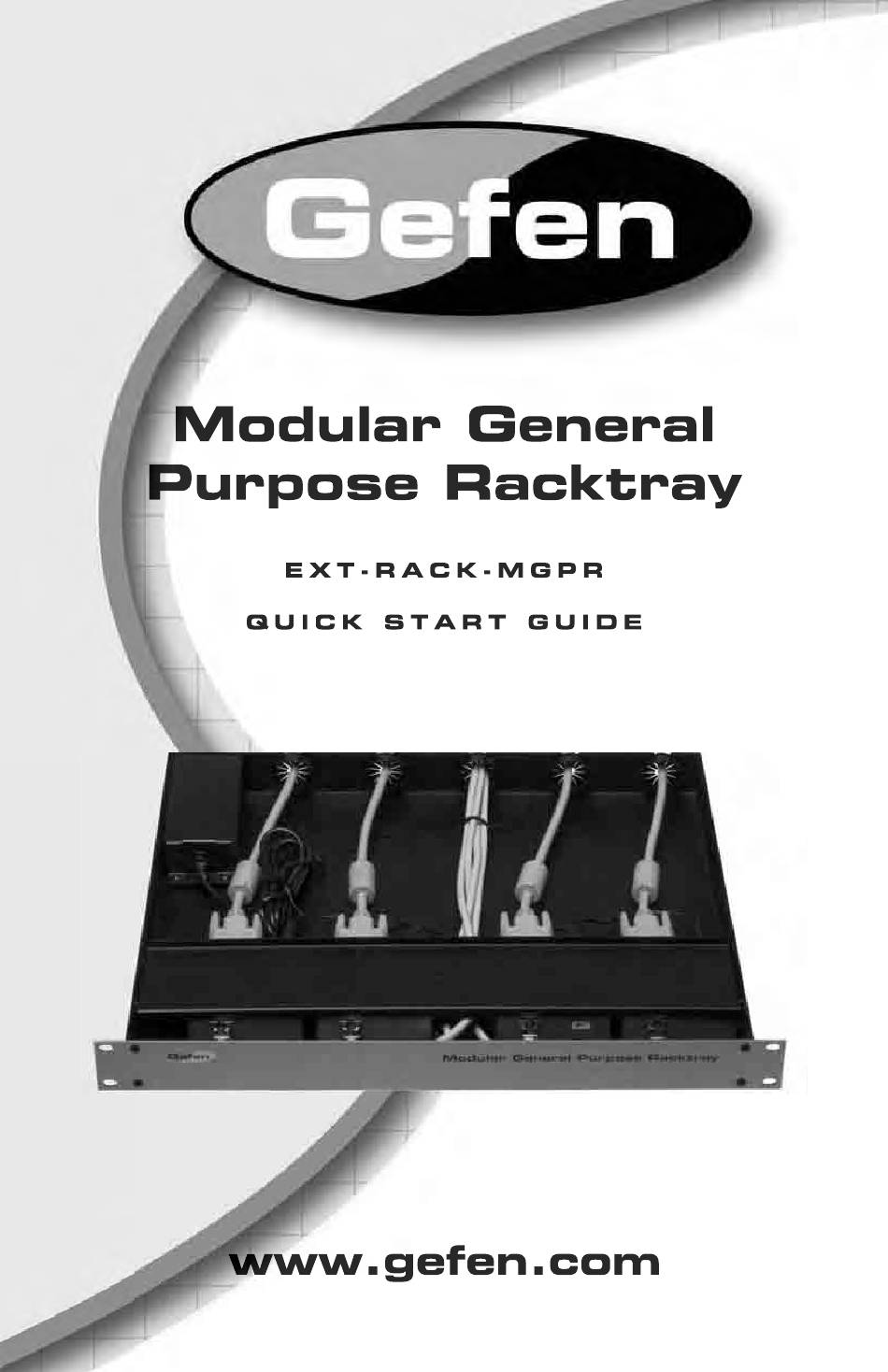

- Page 1 ®...
- Page 2 Notice Gefen LLC reserves the right to make changes in the hard ware, packaging and any accompanying doc u men ta tion without prior written notice. EXT-RACK-MGPR is a trademark of Gefen LLC © 2011 Gefen LLC, All Rights Reserved...
- Page 3 fi t different Gefen enclosures. The Modular General Purpose Rack Tray includes a 12 V DC 8A Gefen power supply located in the rear of the tray. Cable tie mounting slots are also included in multiple locations to aid in organizing all of the cables.
- Page 4 (1) 5 V DC 8 Amp Locking Power Supply (1) AC Power Cord (1) Quick Start Guide (This document) NOTE: If any of the preceding items are missing please contact Gefen sales representative immediately. This guide will cover the setup procedures for the Modular General Purpose Racktray.
- Page 5 CONNECTING THE RACK TRAY Begin by setting the Rack Tray in front of you, on a table. Run all connector cables out through the back of the unit. Use the included split grommets to protect the cables, as shown in the photo below: Use a Phillips screwdriver and disconnect the clamping plate by removing the two (2) screws on each...
- Page 6 CONNECTING THE RACK TRAY The Rack Tray provides four (4) 2.5 mm 5V DC power connectors that connect to the Gefen locking IMPORTANT: When reassembling power connectors. If the device the clamping plate, make sure being used has 2.1 mm non-locking...
- Page 7 COMPATIBLE DEVICES LIST The following Gefen devices are suitable for mounting in the Gefen General Purpose Modular Racktray (for extenders, usually the Sender module will be mounted in the tray in the equipment rack, and the receiver will be located remotely at the display).
- Page 8 Rev A1 This product uses UL listed power supplies.
