Bohle Alva EN3 Instruction Manual

Bohle Alva EN3 Instruction Manual

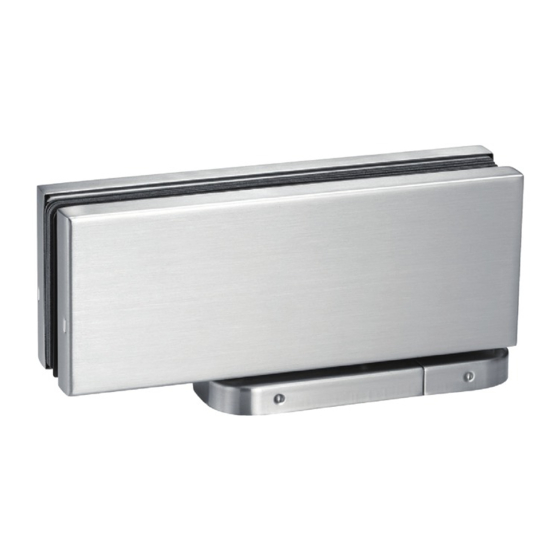

Self-closing patch fitting

Advertisement

Quick Links

Alva
Self-closing patch fitting EN3 / ANSI 3
Montageanleitung · Instruction Manual · Instructions d'installation · Instrucciones de
instalación · Istruzioni per l'installazione · Szerelési útmutató · Monteringsanvisning ·
Installatie-instructies · Инструкция по монтажу
max 1.000 mm
(39-3/8")
max 2.590 mm
(102")
8 - 12,7 mm
(5/16 - 1/2")
max 100 kg
(220 lbs)
Nicht für VSG geeignet
(do not use with laminated
safety glass)

Advertisement

loading
Need help?

Need help?

Do you have a question about the Alva EN3 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Bohle Alva EN3

  • Page 1 Alva Self-closing patch fitting EN3 / ANSI 3 Montageanleitung · Instruction Manual · Instructions d‘installation · Instrucciones de instalación · Istruzioni per l‘installazione · Szerelési útmutató · Monteringsanvisning · Installatie-instructies · Инструкция по монтажу max 1.000 mm 8 - 12,7 mm (39-3/8“) (5/16 - 1/2“) Nicht für VSG geeignet...
  • Page 2 inch...
  • Page 3 65 mm (2-9/16”) 10 mm 6 mm 3/8” 1/4” 35 mm (1-3/8”)
  • Page 4 = 2,5 mm = 0,5 mm = 1,0 mm = 1,0 mm 8 mm 10 mm (5/16“) (3/8“) North America 12 mm 12,7 mm (1/2“) (1/2“)
  • Page 5 5 Nm (3.7 ft-lb)
  • Page 6 1 mm (1/16”) 2 mm (0,08”) 1 mm (1/16”) max. 1mm (0,04”) max. 1mm (0,04”) max. 2mm (0,08”)
  • Page 7 ± 2˚ + 2˚ max. - 2˚ max.
  • Page 11 IMPORTANT INSTALLATION NOTES After installation please check and test: 1. Open the door leaf to its maximum opening angle and release. The door leaf should close fully into the door frame and overcome the latch. 2. Open the door leaf and rest the latch bolt on the strike plate. Release the door leaf. The door closer should have sufficient power to close the door leaf. Maintenance: 1.
  • Page 12 Croatia Estonia France Italy Bohle d.o.o. Bohle Baltic Bohle AG · Departement Français Bohle Italia s.r.l. 51000 Rijeka 13619 Tallinn 42781 Haan, Germany 20080 Vermezzo (MI) T +385 051-329-566 T +372 6112-826 T +39 02 94967790 T +49 2129 5568-222 info@bohle.hr...

This manual is also suitable for:

Alva ansi 3
