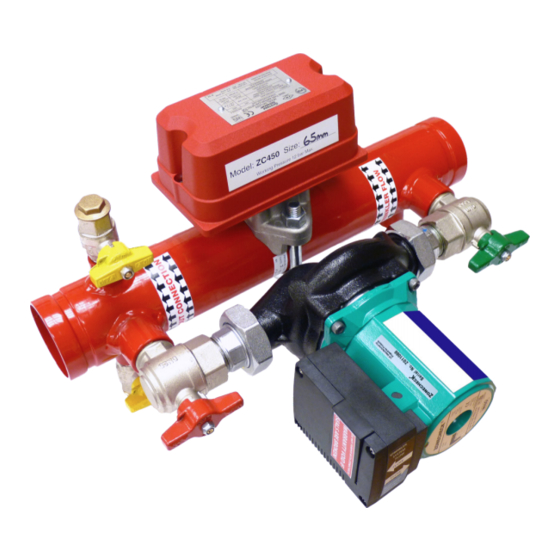

Summary of Contents for Zonecheck 450
- Page 1 ZC450-IB-09/13-01 US Instruction Booklet Zonecheck 450...
- Page 3 Project Fire makes no guarantee for completeness or accuracy. Project Fire Products Ltd reserves the right to change product specifications, designs and standard equipment without notice and without incurring obligation. Zonecheck is a registered product name of Project Fire Products Ltd. European patent No. 0907833.
-
Page 5: Table Of Contents
Contents Pre-checks Installation Commissioning Testing Orientation Typical connection Key-switch Wiring Dimensions Specification Troubleshooting Important information Warranty... -
Page 6: Pre-Checks
Pre-checks Before you install Zonecheck follow these simple steps. Open the box and remove all packaging Check you have the correct size manifold Check that you have the correct model for your site (right or left handed). Check that there is a key-switch and key in the box. -
Page 7: Installation
Installation Zonecheck should be installed by a competent fire sprinkler installer and wired up by a qualified electrician. Contact building management to inform them of the proposed works. Isolate and drain down selected zone. Orientate the Zonecheck in accordance with the diagrams in this booklet. -
Page 8: Commissioning
30 seconds. Now close the test/drain valve as appropriate. 10. Now turn the Zonecheck key-switch to ‘self test’ and check the ‘pump’ and ‘water flow’ LEDs are illuminated (this may have a maximum delay of 30 seconds). -
Page 9: Testing
Testing Test one Zonecheck Insert the key into the key-switch and turn to self test (the pump light will activate) (see fig 1). When the flow-switch operates, the water-flow light will activate (please wait for up to 30 seconds for the flow-switch to operate). -
Page 10: Orientation
Orientation Side view Plan view Flow-switch on underside of pipe Pump not horizontal Remember: • The pump direction-of-flow arrow faces the opposite direction to the system flow. • The red & green stripes on the pump cartridge are always horizontal. •... -
Page 11: Typical Connection
Typical connection Zone Valve View from above A typical multi-occupancy Zonecheck Installation. For an example of a typical riser installation visit our website: www.projectfire.co.uk... -
Page 12: Key-Switch
5m (commissioning cable length) of the Zonecheck. Single Occupier Only A single occupier, when the Zonecheck units are wired in parallel via interconnect, can test all of the units by turning the key-switch to group test. Single occupier may exclude the Zonecheck key-switch and wire a relay circuit to... -
Page 13: Wiring
Wiring Typical Zonecheck and flow-switch water flow alarm circuit wiring diagrams. Key-switch Main electric circuit board Interconnect Key-switch Key-switch Single Occupier Pump Pump WF input Single occupier - One Interconnect Interconnect fire alarm panel for all Zonechecks installed. Flow-switch A single occupier, when... -
Page 14: Dimensions
Dimensions... -
Page 15: Specification
Specifications Zonecheck Working Pressure Rating............Water, 12 bar (175 psi) maximum 0°C - 49°C (32°F – 120°F) Operating Temperature Range........... 50, 65, 80, 100, 150 & 200 mm (2, 2½ 3, 4, 6 & 8“) Pipe Diameter................Approvals..................LPCB, UL, FM and VdS Circulation Pump Operating Voltage.............. -
Page 16: Troubleshooting
Troubleshooting Zonecheck should be troubleshooted by a competent fire sprinkler installer and wiring checked by a qualified electrician. Open the key-switch and check the wiring against the No lights on key-switch. wiring diagram. Confirm the power supply has been connected properly. -
Page 17: Important Information
If the Zonecheck could be wired when the sprinkler system zone is drained down then it is vitally important that the Zonecheck red and green valves are left in the closed position, to ensure the motor is not accidentally run dry and damaged. -
Page 18: Warranty
Three Year Warranty Project Fire Products warrants its phoning Project Fire’s number, 01889 enclosed Zonecheck flow-switch tester 271271 for a Return Authorization to be free from defects in materials number, send defective units postage and workmanship under normal use prepaid to Project Fire, Pasturefields... - Page 20 GLOBAL VISION INC. ph 763-391-0990 fx 763-391-7668 cel 612-991-9791 www.gviflow.com 8730 Jefferson Highway, Osseo, Minnesota 55369, USA...
