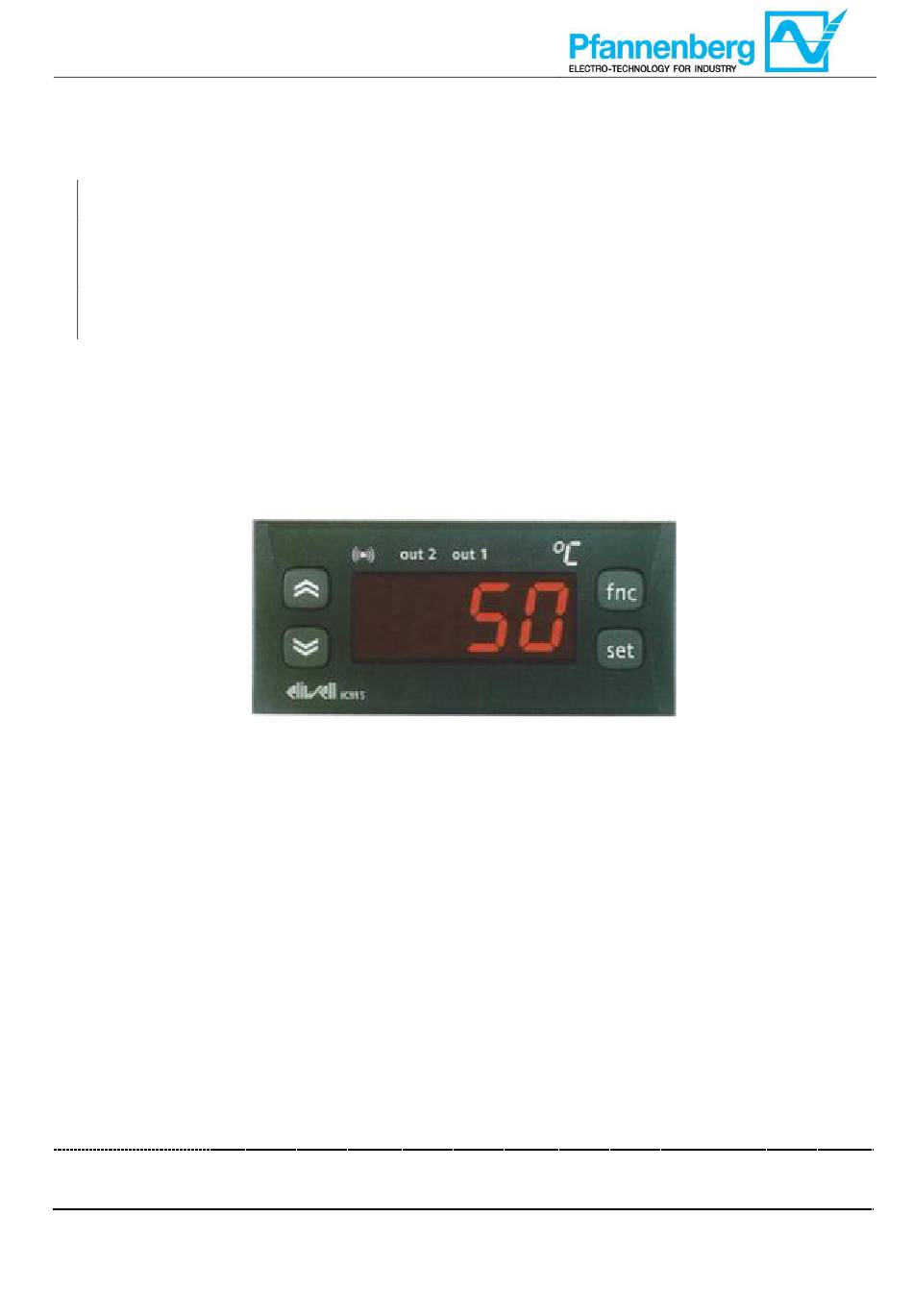

English IC915 User Manual Operating Instructions Digital Thermostat English Operating Instructions of Digital Thermostat (Page: - 3 -) 70040-080_01-_.doc...
Page 2
English Index MAIN VIEW ................................. 3 KEYS ....................................3 PARAMETERS ................................4 THERMOSTAT MENUS ............................. 4 ........................4 ROGRAMMING OLDERS TREE ............................5 TATUS ETPOINT MENU ERRORS TABLE................................5 MAX TEMPERATURE ALARM (ONLY FOR RACK WITH INSTALLED OPTION) ........5 COOLING ..................................
Page 3
English Main view In main view, the target display shows the value measured by the thermoregulation probe. Following table explains the meaning associated to LEDs. Icon Description Alarm ON for an active alarm °C With temperature value displayed Relay of Compressor is active compressor 2 Keys...
Page 4
English 3 Parameters EB/RACK Water+Glycol EB/RACK OIL Main LEVEL To enter Sub-folder PARAMETER DESCRIPTION U.M. RANGE MIN - MAX DEFAULT RANGE MIN - MAX DEFAULT Folder. SET-POINT for Compressor °C 10…35 20…30 4 Thermostat Menus Programming Menu Folders tree 70040-080_01-_.doc...
Page 5
English Status / Setpoint menu (SEt folder) Status menu folder “SEt” will appears In main view, press the set key to access the Status / Setpoint menu. Press set key again to view the value of selected parameter. To modify this value Press the "up"...
Page 6
English Cooling Cooling with Fixed Setpoint The regulator gets the temperature measure from the thermoregulation probe; the setpoint is 25°C ± 1°C for OIL units. Control action is proportional to the error and it reaches saturation (100%) when the temperature is greater than the setpoint plus the “Hysteresys”...
