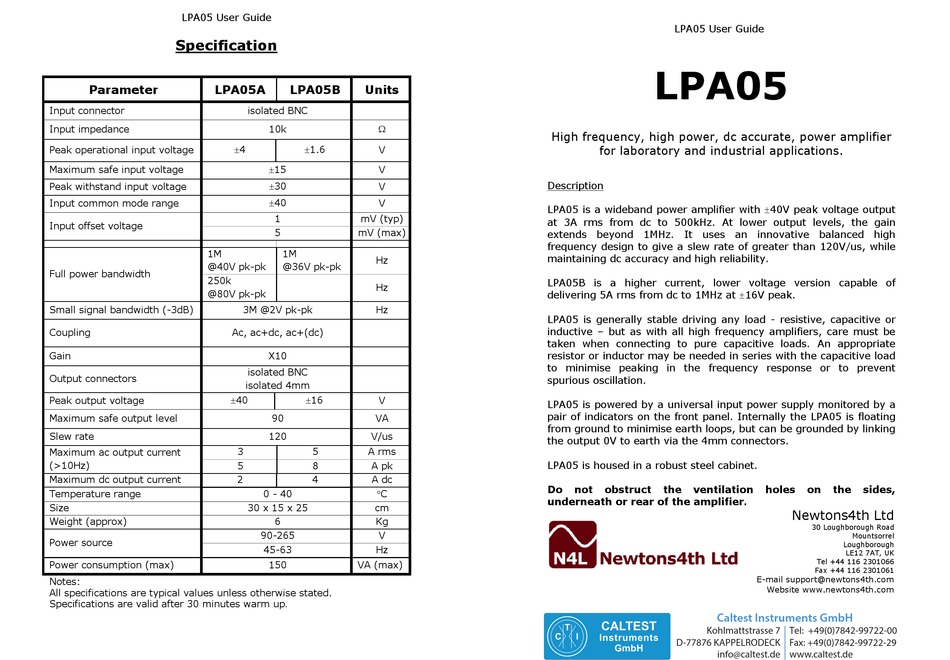

Newtons4th LPA05A User Manual

LPA05 User Guide

Specification

Parameter LPA05A
Input connector
Input impedance
Peak operational input voltage
Maximum safe input voltage
Peak withstand input voltage
Input common mode range
Input offset voltage
1M
@40V pk-pk
Full power bandwidth
250k
@80V pk-pk
Small signal bandwidth (-3dB)
Coupling
Gain
Output connectors
Peak output voltage
Maximum safe output level
Slew rate
Maximum ac output current
(>10Hz)
Maximum dc output current
Temperature range
Size
Weight (approx)
Power source
Power consumption (max)
Notes:
All specifications are typical values unless otherwise stated.
Specifications are valid after 30 minutes warm up.
LPA05B Units
isolated BNC

10k
4 1.6 V
15 V
30 V
40
V
1 mV (typ)
5 mV (max)
1M
Hz
@36V pk-pk
Hz
3M @2V pk-pk Hz
Ac, ac+dc, ac+(dc)
X10
isolated BNC
isolated 4mm
40 16
V
90 VA
120 V/us
3 5 A rms
5 8 A pk
2 4 A dc
0 - 40 C
30 x 15 x 25 cm
6 Kg
90-265 V
45-63 Hz
150 VA (max)
LPA05 User Guide

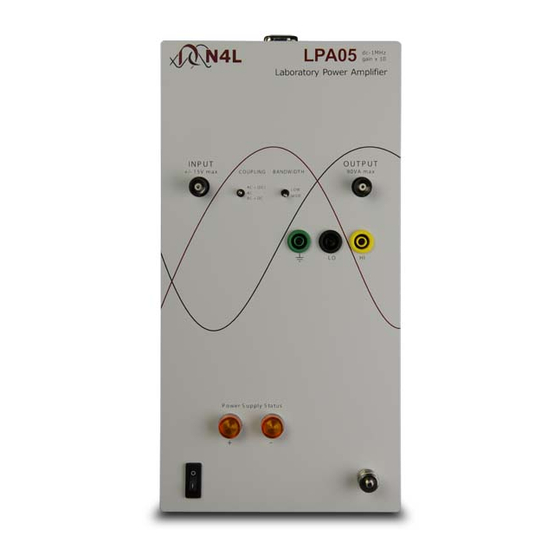

LPA05
High frequency, high power, dc accurate, power amplifier
for laboratory and industrial applications.

Description

LPA05 is a wideband power amplifier with 40V peak voltage output
at 3A rms from dc to 500kHz. At lower output levels, the gain
extends beyond 1MHz. It uses an innovative balanced high
frequency design to give a slew rate of greater than 120V/us, while
maintaining dc accuracy and high reliability.
LPA05B is a higher current, lower voltage version capable of
delivering 5A rms from dc to 1MHz at 16V peak.
LPA05 is generally stable driving any load - resistive, capacitive or
inductive – but as with all high frequency amplifiers, care must be
taken when connecting to pure capacitive loads. An appropriate
resistor or inductor may be needed in series with the capacitive load
to minimise peaking in the frequency response or to prevent
spurious oscillation.
LPA05 is powered by a universal input power supply monitored by a
pair of indicators on the front panel. Internally the LPA05 is floating
from ground to minimise earth loops, but can be grounded by linking
the output 0V to earth via the 4mm connectors.
LPA05 is housed in a robust steel cabinet.
Do not obstruct the ventilation
underneath or rear of the amplifier.
Caltest Instruments GmbH
Kohlmattstrasse 7
D-77876 KAPPELRODECK
info@caltest.de
holes on the sides,
Newtons4th Ltd
30 Loughborough Road
Mountsorrel
Loughborough
LE12 7AT, UK
Tel +44 116 2301066
Fax +44 116 2301061
E-mail support@newtons4th.com
Website www.newtons4th.com
Tel: +49(0)7842-99722-00
Fax: +49(0)7842-99722-29
www.caltest.de
