Summary of Contents for MAXPhotonics MFSC CW Fiber Laser Series

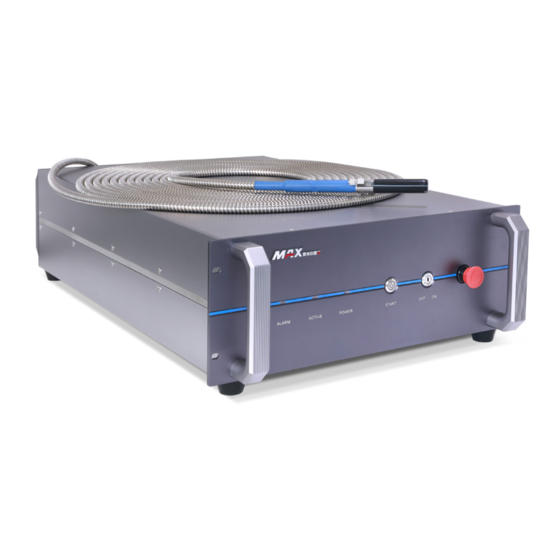

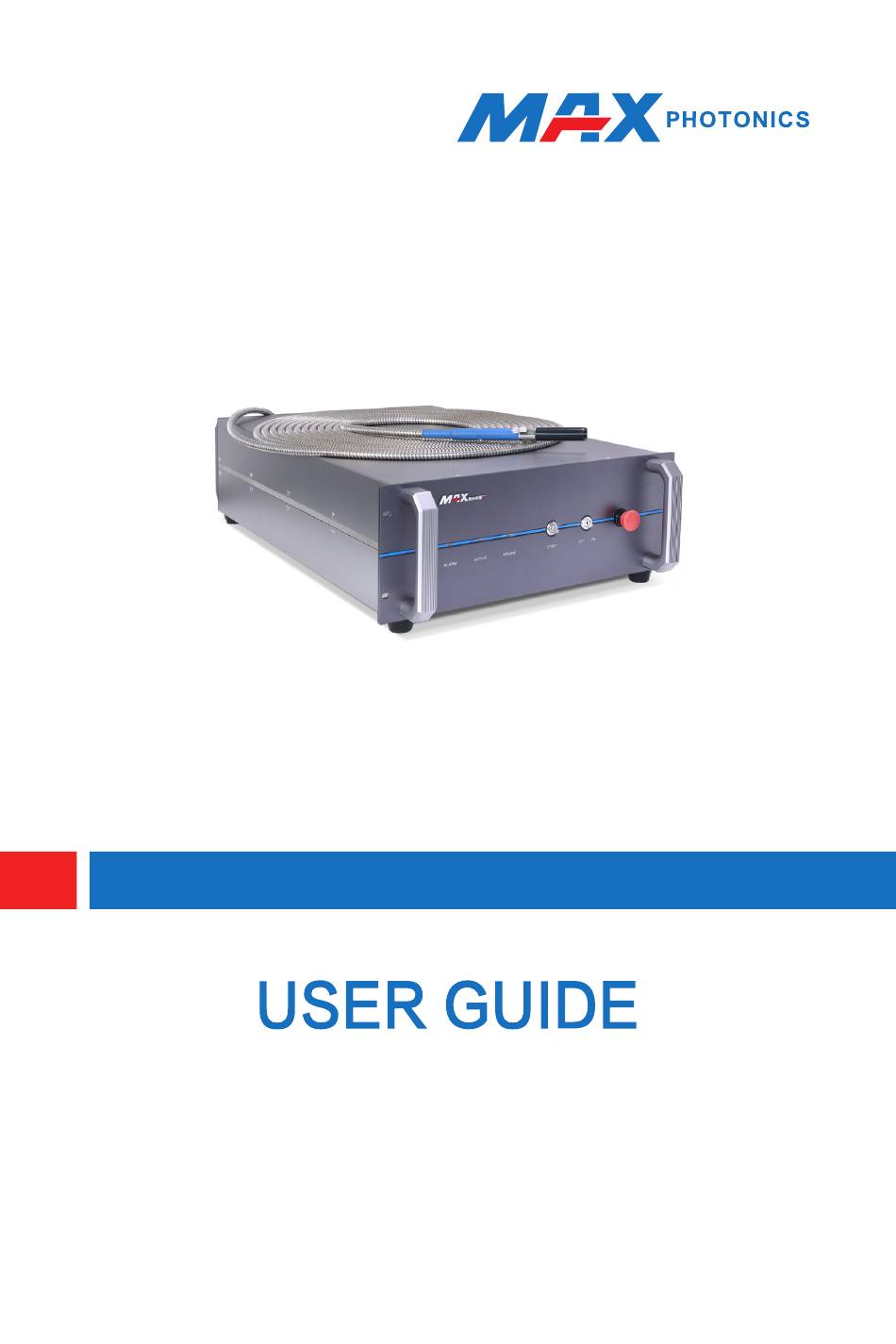

- Page 1 MFSC 700W-1500W CW Fiber Laser Series Maxphotonics Co.,Ltd.
- Page 2 Maxphotonics shall not be liable for errors contained in this document or for direct or indirect damages of relevant equipment.
- Page 3 Preface Thank you for using the MFSC 700W-1500W Series fiber laser products from Maxphotonics. We compile this document for you in order that the laser is used and maintained properly. Due to the limited level of the writers, coupled with time constraints, there are some careless mistakes in this document, and your understanding will be much appreciated.
- Page 4 Company Profile As a large laser manufacturer founded in 2004, Maxphotonics Co., Ltd. specializes in research and development, production and sales of lasers and ancillary products. Maxphotonics owns a number of independent intellectual property rights and patents as well as high-power pulsed fiber laser, high-power fiber laser and high-power fiber amplifier etc.
-
Page 5: Table Of Contents
CONTENT Chapter 1 Characteristic Explain..........7 Chapter 2 General Safety Information ........8 1-Safety Conventions ................8 2-Laser Protection ..................9 3-Reference Standard ................10 4-General Safety Instructions ............11 5-Additional Safety Information ............16 Chapter 3 Product Description ..........17 1-Features ....................17 2-Modulation Configuration .............17 3-Laser Model Designation Codes ...........18 4-Certification ..................18 5- Front Panel Description ..............18 6-Back Panel Description ..............19... - Page 6 CONTENT Chapter 5 Disassembly Guide ..........26 1-Disassembly Step ................26 2-Packing List ..................27 Chapter 6 Operation Guide ............28 1-Notice ....................28 2-Electrical Power Connection ............28 3-Extension Interface................29 4-Fiber Connector Inspection and Cleaning Guide .....30 5-Start Step ....................34 6-Mode Description ................34 7-Software Description ...............35 8-Error Listing ..................37 Chapter 7 Service and Maintenance ........39 1-Maintenance Notes ................39...
-
Page 7: Chapter 1 Characteristic Explain
30% and deliver high efficiency, high reliability, and high performance. Maxphotonics' MFSC CW Fiber Laser (MFSC700W-1500W) Series are Class 4 laser products and are designed and tested with safety. By following this User Guide and applying sound laser safety practices, it will be a safe and reliable device. -
Page 8: Chapter 2 General Safety Information
Chapter 2 General Safety Information 1 -Safety Conventions All safety warning symbols during operating process of the laser include: SYMBOLS DESCRIPTION WARNING : Refers to a potential Electrical Hazard to human body. It requires a procedure that, if not correctly followed, may result in bodily harm to you and/ or others. -
Page 9: 2-Laser Protection
LaserVision USA, Kentek Corporation, Rochwell Laser Industries, etc. All the supplier information is provided by Maxphotonics only for the convenience to use, so Maxphotonics assumes no responsibility for any problem caused by using the products of abovementioned suppliers. -
Page 10: 3-Reference Standard
Chapter 2 3-Reference Standard Electromagnetic Compatibility Emission EN 55011：5009+A1：2010 CISPR 11：5009+A1：2010 FCC Class A Anti-interference Performance on Electromagnetic Compatibility EN 61000-3-2:5006+A1:5009+A2:5009 EN 61000-3-3:5008 EN 61326-1:5006 EN 61000-4-2:5009 EN 61000-4-3:5006+A1:5007+A2:2010 EN 61000-4-4:5004+A1:2010 EN 61000-4-5:5006 EN 61000-4-6:5009 EN 61000-4-11:204 Others-Electromagnetic Compatibility Classification A of digital instrument complies with Canada ICES-5003 Power Supply Security EN 61010-1:5001 Laser Security... -
Page 11: 4-General Safety Instructions
Chapter 2 Please note: ◎ Performances of Maxphotonics MFSC laser meet the CE EMC certification requirements, the EMC requirements specified in "EMC Directive" of European market, the anti-interference requirements specified in "EMC" standard EN55011 emission and EN61326-1: 8006, and the emission requirements of group 1 classification A specified in EN55011. - Page 12 WARNING: ◎ The Maxphotonics MFSC laser light is strong enough to cut or weld metal, burn skin, clothing and paint. In addition, this light can ignite volatile substances such as alcohol, gasoline, ether and other solvents. During the operating process, the flammable materials around the laser must be isolated.
- Page 13 Chapter 2 active. （10）Carry out commissioning, calibration and focusing at low output power and then increase the output power gradually when the calibrating and focusing work is done. （11）If the equipment is operated in a manner not specified in this document, the protection devices and performance of the equipment may be impaired and the warranty will be voided.
- Page 14 ◎ The equipment does not have any part which can be maintained by operators, and all the maintenance operations must be finished by the professionals of Maxphotonics Co., Ltd. ◎ To prevent electrical shock, do not remove enclosure, detach the laser without permission and damage the relevant signs.
- Page 15 （2）Operation at higher temperature will accelerate aging, increase threshold current and lower slop efficiency. If the device is overheated, stop operation and contact Maxphotonics. Caution: ◎ Exercise caution to avoid damage to the device. ◎ If the laser will be in an environment of less than 0 degrees Celsius,...
-
Page 16: 5-Additional Safety Information
Chapter 2 5-Additional Safety Information For additional information regarding Laser Safety, please refer to the list below ： Laser Institute of America(LIA) 13501 Ingenuity Drive, Suite 128 Orlando,Florida 32826 Phone:407 380 1553,Fax: 407 380 5588 Toll Free:1 800 34 LASER American National Standards Institute ANSI Z136.1, American National Standard for the Safe Use of Lasers (Available through LIA) -
Page 17: Chapter 3 Product Description
（3） High reliability, long service life （4） Compact, rugged package （5） Extension programming interface Applications: （1）Industrial applications （2）Scientific research 2- Modulation Configuration Maxphotonics offers many configurable modes. This manual will give complete instructions for all modes, please refer to section 6.3-6.6. -
Page 18: 3-Laser Model Designation Codes
MFSC-1500W Maxphotonics Single-mode CW Fiber Laser 1500W 4-Certification Maxphotonics certifies that this equipment has been thoroughly tested and inspected and meets published specifications prior to shipping. Upon receiving your equipment, check whether the packaging and accessories have been damaged in transit. If damage is apparent, please contact Maxphotonics immediately. -
Page 19: 6-Back Panel Description
Chapter 3 ITEMS FUNCTION DESCRIPTION (OFF ON) Key Switch Power switch of laser (EMERGENCY STOP) Emergency stop Emergency Stop Switch (START) Start Switch Start laser (on-off signal of hardware) Display Screen Laser operating state indicate ALARM Abnormal situation light of laser ACTIVE Normal situation light of laser POWER... -
Page 20: 7-Optical Output Terminal
Chapter 3 7-Optical Output Terminal 1 .Optical Output Head The optical output head come with a protective window that can be replaced if damaged. Please refer to 6.4 about the cleaning method. Make sure that the black end cap of the QBH head is removed prior to use and is usually arranged with the laser. -
Page 21: Chapter 4 Specification
Chapter 4 Specification 1 -Optics Characteristic Parameters No. Characteristics Test conditions Min. Nom. Max. Unit Operation mode CW/Modulated Polarization Random Output power 100% CW MFSC-700W Output power 100% CW MFSC-800W Output power 100% CW 1000 MFSC-1000W Output power 100% CW 1200 MFSC-1200W Output power... -
Page 22: 2-General Characteristic Parameters
Chapter 4 13 Red guide laser power 100%Output μW 14 Feeding fiber cable length 15 Feeding fiber core size 50 （ 30/100 optional ） μm Feeding fiber cable bending radius 17 Output form Standard QBH（LOC） 2 -General Characteristic Parameters Test Characteristics Min. -
Page 23: 3-Water Cooling Condition
Chapter 4 3-Water Cooling Condition Maxphotonics Version haracteristics Laser Model Min. Typ. Max. Unit Method Water Cooling 300W-1500W Cooling Water ℃ Temperature 2500W-6000W 300W /500W 800W/1000W Water Flow Rate 1500W 3 for laser... - Page 24 Chapter 4 Dew Point Maximum relative humidity Environment Tem. 10℃ -11.9 -6.8 -3.0 15℃ -16.4 -7.9 -2.4 11.6 13.4 14.2 20℃ -12.5 -3.7 9.25 12.0 14.4 16.4 18.3 19.2 25℃ -8.7 10.5 13.8 16.7 19.1 21.3 23.2 24.1 30℃ -5.0 10.5 15.0 18.4...
-
Page 25: 4-Structural Layout
Chapter 4 4-Structural Layout Laser Three Views.（Unit：mm）... -
Page 26: Chapter 5 Disassembly Guide
（5）Check the fittings according to the ''Packing List''. （6）Keep all objects after unpacking for future transportation or storage needs. CAUTION: ◎ If any damage of the external package and internal parts has been found upon receipt of product, please contact Maxphotonics Co., Ltd. or designated agent immediately. -
Page 27: 2-Packing List
Chapter 5 2 -Packing List Names of fittings Description Unit Quantity Fiber Laser MFSC(1200-1500) Series 220VAC power wire External signal wire 3.5 M Shielded RS232 cable with RS232 signal wire Female head on both ends Power Keys USB disk 16 G Lens cleaning paper Sample of QBH water Ф6x4mm... -
Page 28: Chapter 6 Operation Guide
Please make sure the grounding cord is perfectly connected, or the laser may be damaged potentially. For ensuring the safety feature, Maxphotonics recommends you connect a 20A circuit breaker (air switch) in series between the power supply unit and the laser. This electric power shall be in close proximity to the power supply unit of the equipment and can be easily disconnected. -
Page 29: 3-Extension Interface
Chapter 6 3- Extension Interface For ensuring the communication between the laser and the board card, Maxphotonics adopts the high-quality HARTING terminal and provides the CTRL interface connectors. The interface definition is shown in the figure below. CTRL Interface Definition... -
Page 30: 4-Fiber Connector Inspection And Cleaning Guide
Chapter 6 DA(0-10V) input Green analog signal, (positive) control output power DA(0-10V) input Green and white percentage (negative) Fault output 1 and 2 off Brown Fault output 1 when alarm on Fault output 1 and 2 on Brown and white Fault output 2 when alarm off Blue... - Page 31 ◎ The use of a dirty fiber connector can result in laser damage, which is not covered by the Maxphotonics' warranty. ◎ The laser will not be covered by the Maxphotonics' warranty if the buyer change the laser without permission.
- Page 32 Chapter 6 protective lens can be seen clearly from the microscope. （5）Check the surface carefully. If some contamination is visible on the surface, cleaning is necessary: 1. Put a few drops of alcohol onto the lint free swabs and throw away the excessive alcohol.
- Page 33 Chapter 6 Cleaning protective lens with swabs IMPORTANT： ◎ Do not reuse a lint-free optical wipe or swab. ◎ 2)Do not touch the protective lens of the fiber connector. ◎ Do not blow directly, or else new dirty will be brought. ◎...
-
Page 34: 5-Start Step
Chapter 6 5-Start Step WARNING： ◎ Make sure that all the electrical connections (including cooling water connections) are connected prior to use. All the connectors must be held steady with screws if possible. ◎ NEVER look directly into the output fiber and make sure that you wear the laser safety eyewear while operating the product. -
Page 35: 7-Software Description
Chapter 6 7-Software Description （1）Software setup save in USB DISK. （2）Click right button to unzip the files to D. （3）Double click setup document, finish installment guide. （4）Double click desktop shortcut to open the program, access to the following connect interface:... - Page 36 Chapter 6 （5）Use the serial interface cable which is enclosed with the device, connect the laser and PC, select a port number, click “connect” button.
-
Page 37: 8-Error Listing
Emergency stop the laser will work again after being stop switch is alarm restarted; if this fault still exists, pressed please contact Maxphotonics. Please check whether the water Pipeline fault of pressure is normal,the water Water flow error chiller or laser pipeline is clear and replace the bad water switch if need. - Page 38 Overvoltage Overvoltage Voltage is within the range of fault of laser 200~210V.if this cause is excluded, please contact Maxphotonics. The fault will be produced when QBH head is not inserted in the Install error of QBH warning internal part of the cutting head;...
-
Page 39: Chapter 7 Service And Maintenance
◎ For ensuring that the repairs or replacement within the warranty scope can be carried out, and perfectly maintaining your interests, please submit application to the Maxphotonics or the local representative after finding the faults. Upon receiving our authorization, you need to pack the product in a suitable package and return it. -
Page 40: 2-Service Statements
"User Guide". Please call the Customer Service Department for other questions. If your problems cannot be solved over the telephone with our technical support group, you may need to return the product to Maxphotonics for further troubleshooting. -
Page 41: Chapter 8 Warranty Statements
Chapter 8 Warranty Statements 1-General Items Maxphotonics carries out warranty for any defect of the product caused by its material and production technology within the warranty period agreed in contract, and ensures that its product meet the relevant quality and specification requirements specified in the document under normal use condition. - Page 42 IMPORTANT : ◎ Within the warranty scope, purchasers must feedback within 31 days after finding the product defect. ◎ Maxphotonics does not grant any Third Party rights to repair or replace the parts, the equipment or other Maxphotonics products.
