SNDWAY SW-800 User Manual

Laser distance meter telescope
Hide thumbs

Advertisement

Table of Contents

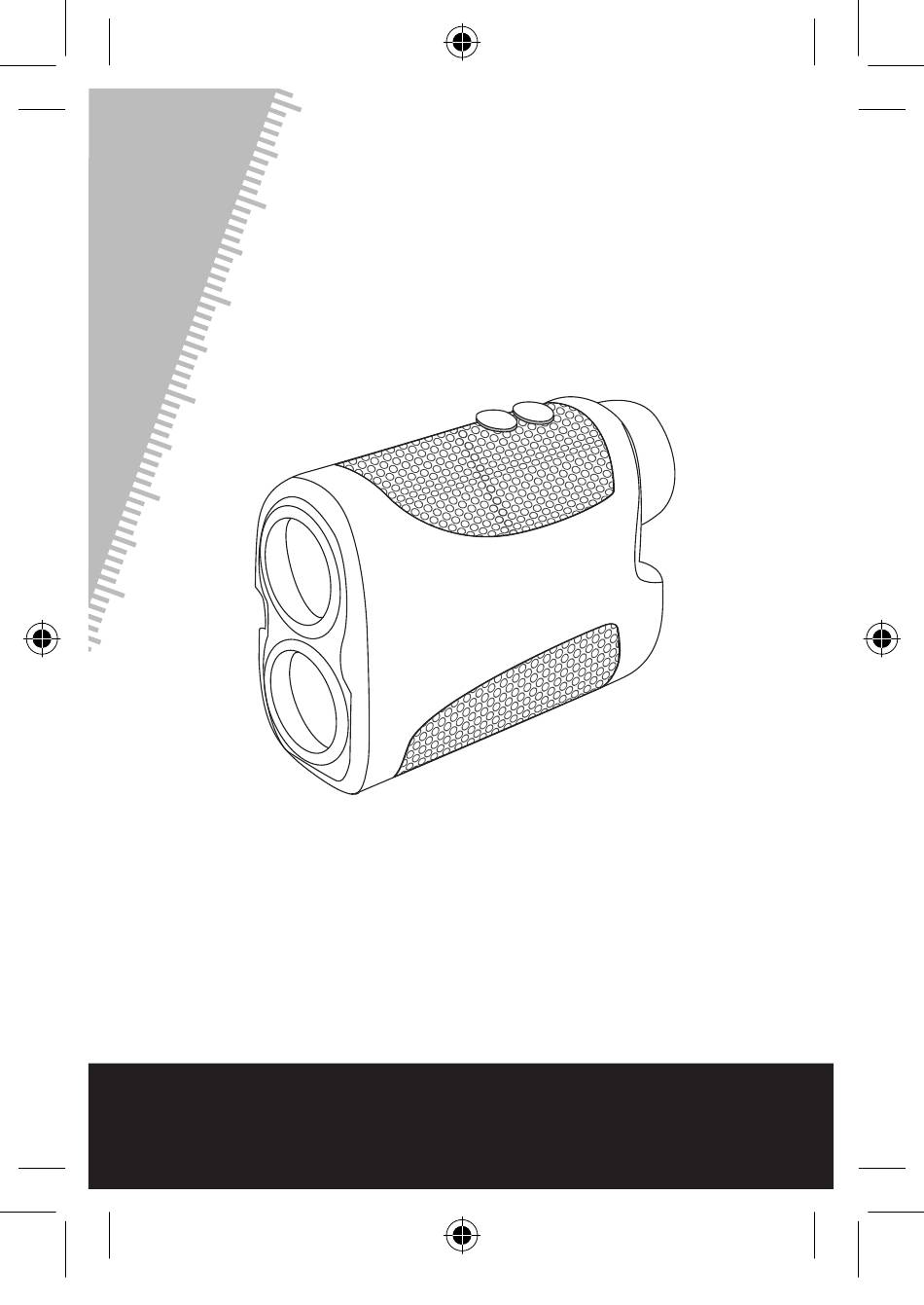

Use's Manual
Laser Distance Meter Telescope
SW-800 1200 1500 EN manual 12pages.indd 1
05/17/2013 13:42:11

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SW-800 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for SNDWAY SW-800

  • Page 1 Use’s Manual Laser Distance Meter Telescope SW-800 1200 1500 EN manual 12pages.indd 1 05/17/2013 13:42:11...
  • Page 2 SW-800 1200 1500 EN manual 12pages.indd 1 05/17/2013 13:42:11...
  • Page 3 It is compact, light in weight, small in volume, very easy to operate and carry about. One piece of CR2/3v battery is used which can be bought and changed easily. • The laser distance meter telescope can be widely used for travel, sightseeing, golf sports, hunting, camping as well a for any measurement of outdoor projects. it is a very good assistant to improve our outdoor life quality. SW-800 1200 1500 EN manual 12pages.indd 2 05/17/2013 13:42:11...

  • Page 4: Specifications

    Measuring Accuracy ±1.0M Angle range ±60° (Only multifunctional model) Magnification Objective caliber 25.0mm Eyepiece caliber 16.0mm Exit pupil caliber 3.8mm Diopter adjustable ±5° range Battery CR2\3V Weight of the body 185g 905nm Laser wave length -20-50℃ Working temperature Viewing angle 7° 104*72*41mm Size SW-800 1200 1500 EN manual 12pages.indd 3 05/17/2013 13:42:11...
  • Page 5 • Observation • Power / start button eyepiece • Laser • Rotation-type emission focusing • Laser receiving • Battery lens cover • Multifunctional meterage angle meterage distance telescope appearance • Power / start button • Observation • Power / start button eyepiece •Laser • Rotation-type emission focusing •Laser receiving • Battery lens cover SW-800 1200 1500 EN manual 12pages.indd 4 05/17/2013 13:42:11...
  • Page 6 LCD display • Laser distance meter telescope appearance. SCAN 1. SCAN ---------------- Scanning mode sign; ---------------- Battery low voltage marks; ---------------- Laser launch marks; ---------------- Given.some indication; ---------------- Straight distance data shows; ---------------- Straight distance data display unit; SW-800 1200 1500 EN manual 12pages.indd 5 05/17/2013 13:42:11...
  • Page 7 • Multifunctional meterage angle meterage distance telescope appearance. SCAN MY Hgt --------- Battery low voltage marks; 2. “SCAN” --------- Scanning mode sign; --------- Given some indication; --------- Laser launch marks; MY Hor --------- Level range data, display unit; --------- Angle data shows; --------- Straight distance data shows; 8. M/Y --------- Straight distance data display unit; MY Hgt --------- Vertical height data, unit display; SW-800 1200 1500 EN manual 12pages.indd 6 05/17/2013 13:42:12...
  • Page 8 • Within 20 seconds, no key is pressed, the unit will automatically power off. • Directional signs, as the battery voltage, when show when the battery voltage is required to replace the battery. SW-800 1200 1500 EN manual 12pages.indd 7 05/17/2013 13:42:12...
  • Page 9 In measuring the distance, If the reflection of target is too weak, The LCD will display "- - - -". Figure 3A and 3B are two different measurements of the location of the target. -30° 512 M 256 M Hgt 443 M Hor 256M 443M SW-800 1200 1500 EN manual 12pages.indd 8 05/17/2013 13:42:12...
  • Page 10 • Within 20 seconds, no key is pressed, the unit will automatically power off. • directional signs, as the battery voltage, when the show when the battery voltage is required to replace the battery. SW-800 1200 1500 EN manual 12pages.indd 9 05/17/2013 13:42:12...
  • Page 11 The maximum measuring range of the device depends on the target reflectivity, color, surface finish, size and actual shape. SW-800 1200 1500 EN manual 12pages.indd 10 05/17/2013 13:42:12...
  • Page 12 Pac k in g l ist Please carefully check instruments and attachments are complete in line with below list. Item Unit Note Master body Master bag Holding rope CR2 battery PCS Cleaning cloth Camera lens Manual Gift box SW-800 1200 1500 EN manual 12pages.indd 11 05/17/2013 13:42:12...
