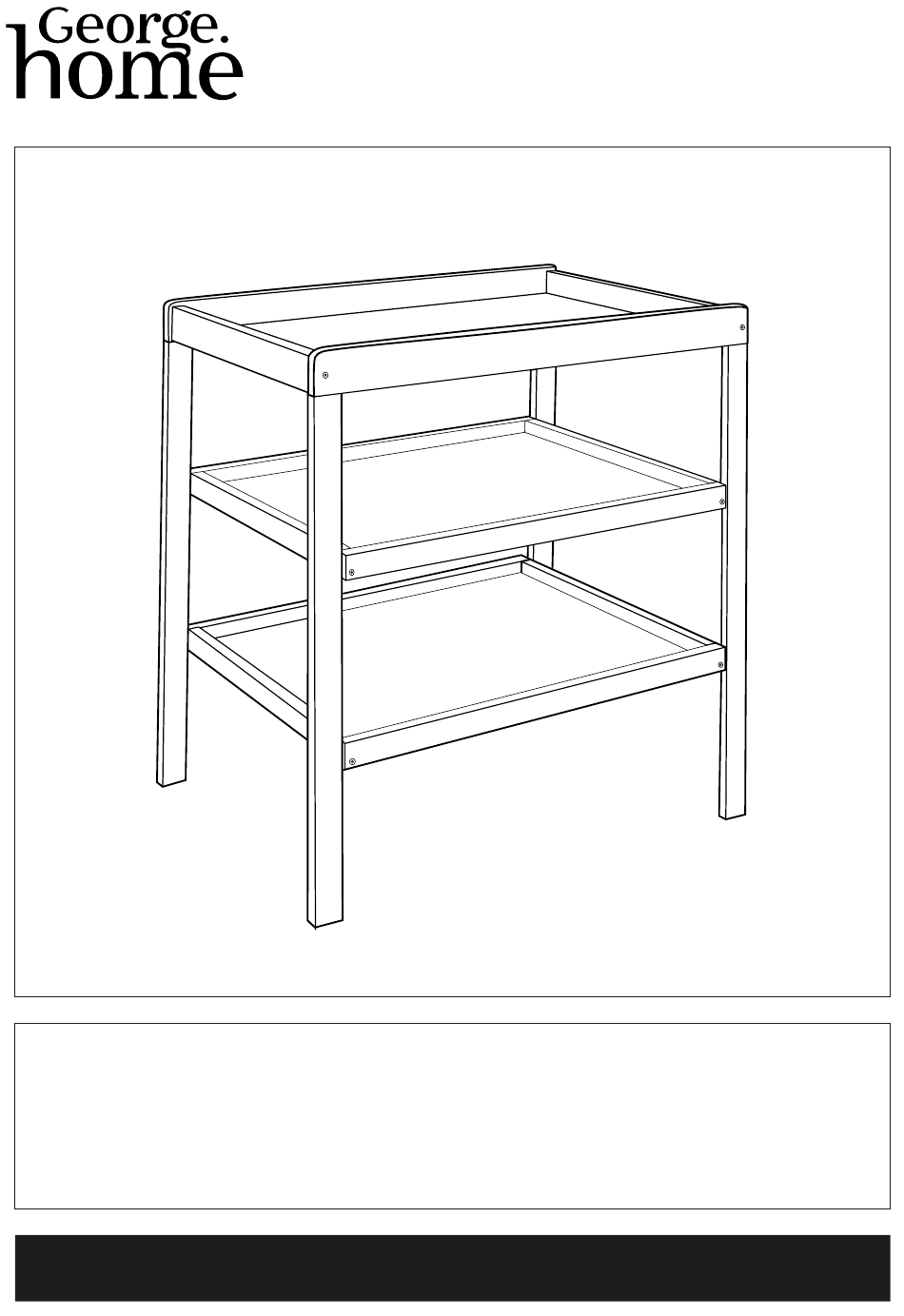

- Page 1 George Changing Unit Assembly User Guide IMPORTANT: RETAIN FOR FUTURE REFERENCE...
- Page 2 Before you start... • The furniture you have purchased is produced from carefully selected natural timbers. You may notice some variation in the grain and colour of different component parts, which is normal for furniture produced using natural wood. Even within the same tree, the colour of the timber will vary depending on the age of the growth.
- Page 3 WARNINGS: • To prevent your changer top tipping and causing serious or fatal injuries, ensure this product is firmly attached to the appropriate cabinet using the fixings supplied. • This changer top is only intended to be used by one child at a time. •...
- Page 4 How to… …assemble your furniture You should have: (changer shelf) (legs) (shelves)
-
Page 5: You Will Need
You will need:... - Page 6 Step-by-step: Step 1 Secure bottom and middle shelves to legs using conformats and allen key. Please note: Make sure conformats are tightened securely. Step 2 Secure dowel screws into the changer shelf. Please note: Fasten dowel screws securely, using a screwdriver.
- Page 7 Step-by-step: Step 3 Attach changer shelf to top of the changing unit, fasten by using the cam locks, turn and lock into place using a screwdriver. Please note: Make sure you line up the cam lock and turn in direction of arrow.
- Page 8 Step-by-step: Step 6 Use screws, H to fix wall fitting to the frame and attach to the wall to secure in place. Please note: Tighten screws to ensure unit is secure.
- Page 9 How to… …use your furniture • Always use on a firm, flat and level surface. • Take care when using the furniture near other products such as candles, lights or heaters. • Using the appropriate fixings for the wall material secure the furniture to the wall using the attachment devices provided.
- Page 10 A guide to …wall mountings and fixings Types of walls: 1. General purpose wall plug 2. Plasterboard wall plug Generally aerated blocks For use with should not be used to plasterboard support heavy loads, partitions use a specialist fitting in or hollow this case.
-
Page 11: Troubleshooting
Trouble shooting Bolts are missing. All of our fittings come in sealed packs, so all bolts etc. should be included. Some of our furniture has more than one fitting pack included in the box, so please make sure the box is thoroughly checked. Top Tip: Before assembling your furniture put all of your fittings into a tupperware box and sort them into the correct sizes and types. - Page 12 Product description: George Home Unit Changer White/Natural Spec Code:17G.02.16.461.WHITE/17G.02.16.461.NAT Supplier model number:1700401/1700408 Call Customer services information 0800 952 0101 If you have any problems, need more information or spare parts, or even just Write some advice on your product, then don’t hesitate to contact customer...
