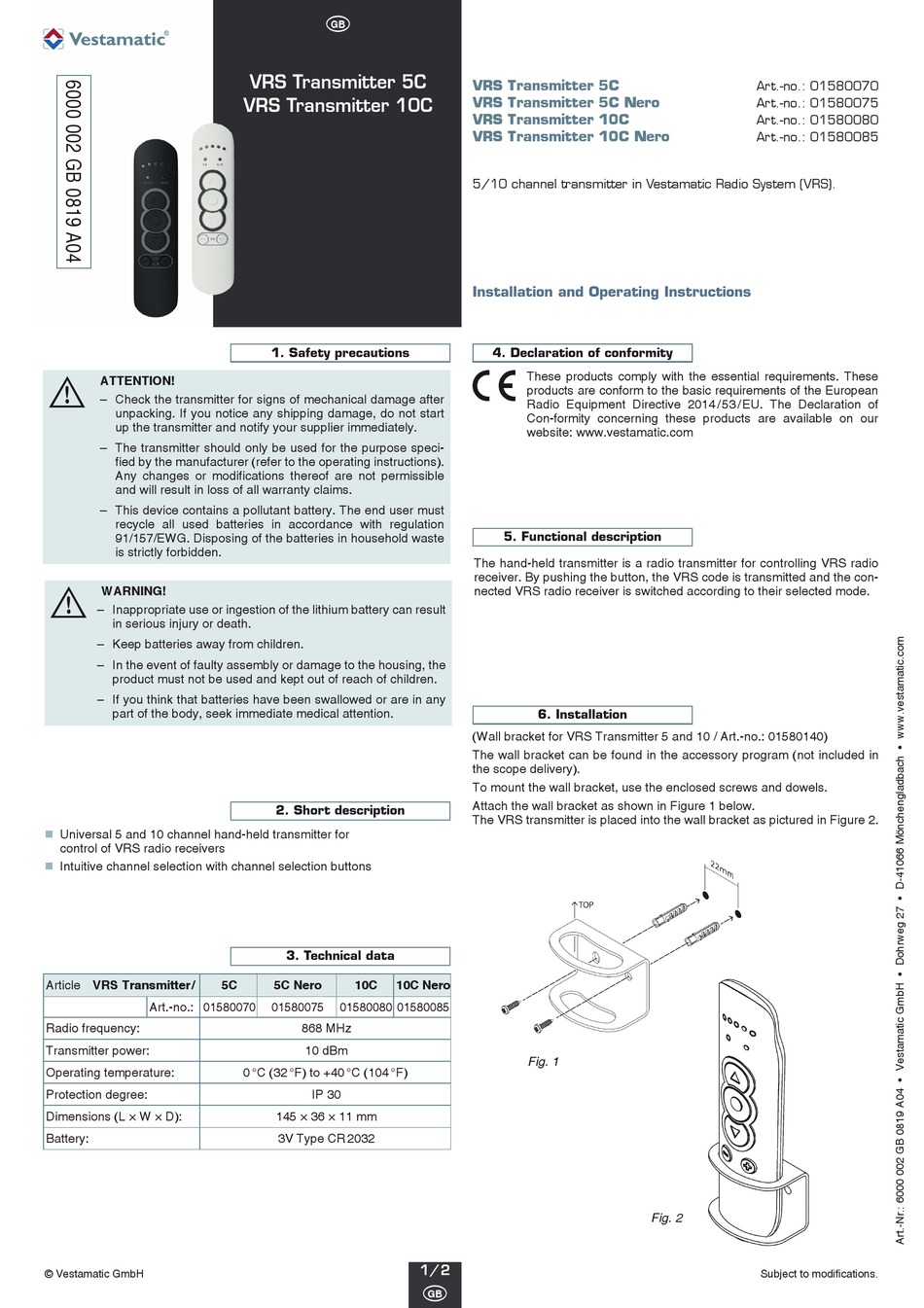

Vestamatic VRS Transmitter 5C Installation And Operating Instructions

Ä ATTENTION!
– Check the transmitter for signs of mechanical damage after
unpacking. If you notice any shipping damage, do not start
up the transmitter and notify your sup plier immediately.
– The transmitter should only be used for the purpose speci-
fied by the manufac turer (refer to the operating instructions).
Any changes or modifications thereof are not permissible
and will result in loss of all warranty claims.
– This device contains a pollutant battery. The end user must
recycle all used batteries in accordance with regulation
91/157/EWG. Disposing of the batteries in household waste
is strictly forbidden.
Ä WARNING!
– Inappropriate use or ingestion of the lithium battery can result
in serious injury or death.
– Keep batteries away from children.
– In the event of faulty assembly or damage to the housing, the
product must not be used and kept out of reach of children.
– If you think that batteries have been swallowed or are in any
part of the body, seek immediate medical attention.

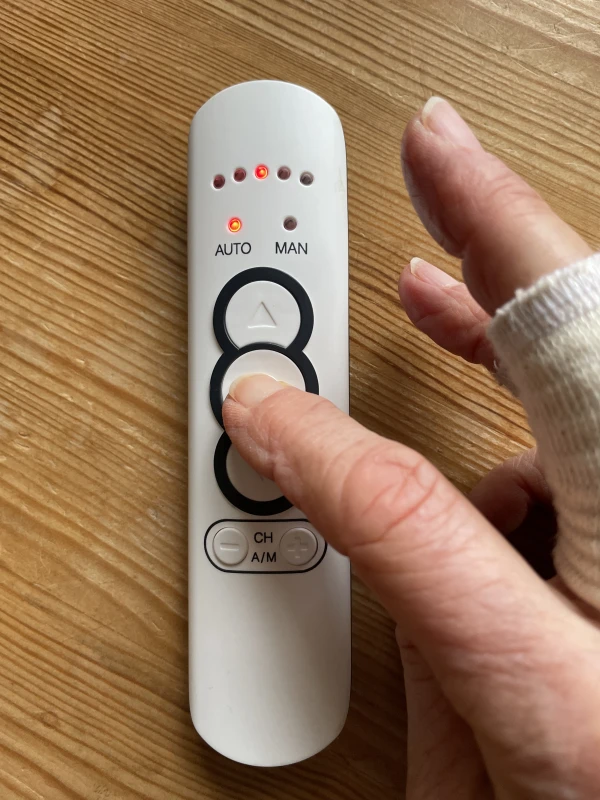

„ Universal 5 and 10 channel hand-held transmitter for
control of VRS radio receivers
Intuitive channel selection with channel selection buttons
„
Article VRS Transmitter /
Art.-no.: 01580070
Radio frequency:
Transmitter power:
Operating temperature:
Protection degree:
Dimensions (L × W × D):
Battery:
© Vestamatic GmbH
G
VRS Transmitter 5C
VRS Transmitter 10C

1. Safety precautions

2. Short description

3. Technical data

5C 5C Nero 10C 10C Nero
01580075 01580080 01580085
868 MHz
10 dBm
0 °C (32 °F) to +40 °C (104 °F)
IP 30
145 × 36 × 11 mm
3V Type CR 2032
VRS Transmitter 5C

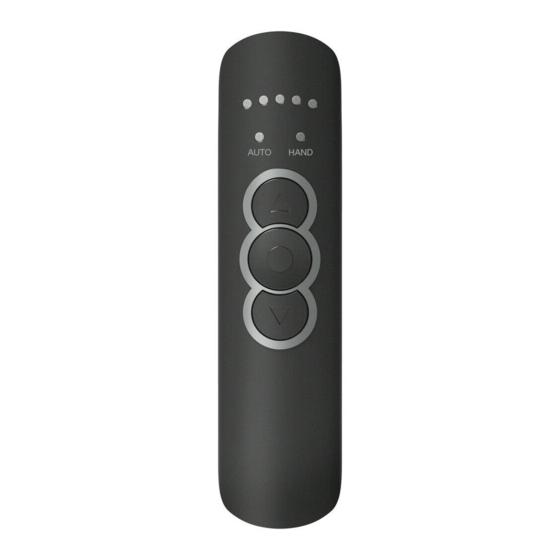

VRS Transmitter 5C Nero
VRS Transmitter 10C
VRS Transmitter 10C Nero
5/10 channel transmitter in Vestamatic Radio System (VRS).
Installation and Operating Instructions

4. Declaration of conformity

These products comply with the essential requirements. These
products are conform to the basic requirements of the European
Radio Equipment Directive 2014 / 53 / EU. The Declaration of
Con-formity concerning these products are available on our
website: www.vestamatic.com

5. Functional description

The hand-held transmitter is a radio transmitter for controlling VRS radio
receiver. By pushing the button, the VRS code is transmitted and the con-
nected VRS radio receiver is switched according to their selected mode.

6. Installation

(Wall bracket for VRS Transmitter 5 and 10 / Art.-no.: 01580140)
The wall bracket can be found in the accessory program (not included in
the scope delivery).
To mount the wall bracket, use the enclosed screws and dowels.
Attach the wall bracket as shown in Figure 1 below.
The VRS transmitter is placed into the wall bracket as pictured in Figure 2.
Fig. 1
1/2
G
VRS Transmitter 5C / 10C
Art.-no.: 01580070
Art.-no.: 01580075
Art.-no.: 01580080
Art.-no.: 01580085
Fig. 2
Subject to modifications.
